A merger of (at least) four disciplines. A merger of (at least) four disciplines

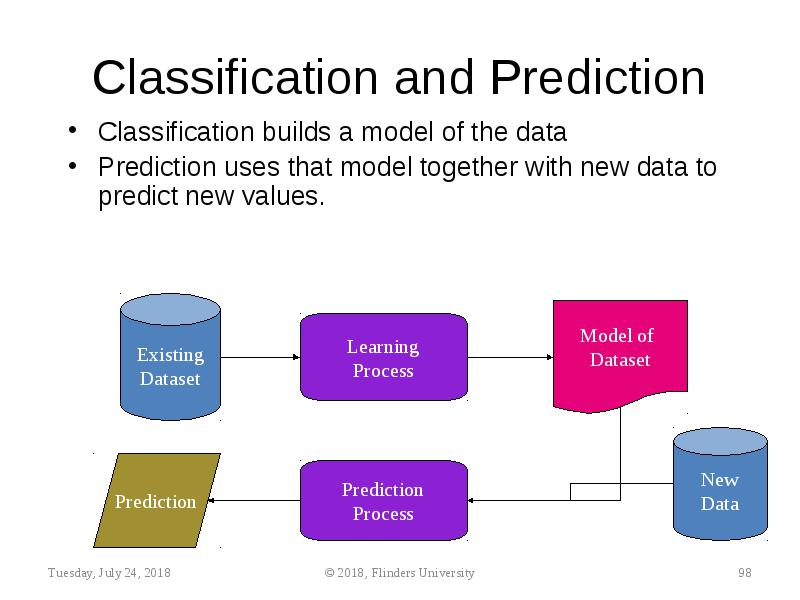

Classification builds a model of the data

• Classification builds a model of the data

• Prediction uses that model together with new data to predict new values.

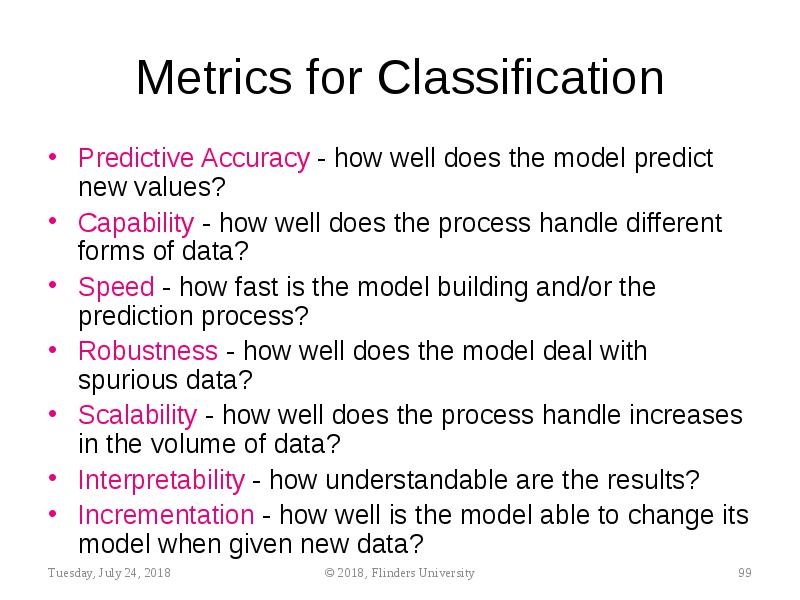

Predictive Accuracy - how well does the model predict new values?

• Predictive Accuracy - how well does the model predict new values?

• Capability - how well does the process handle different forms of data?

• Speed - how fast is the model building and/or the prediction process?

• Robustness - how well does the model deal with spurious data?

• Scalability - how well does the process handle increases in the volume of data?

• Interpretability - how understandable are the results?

• Incrementation - how well is the model able to change its model when given new data?

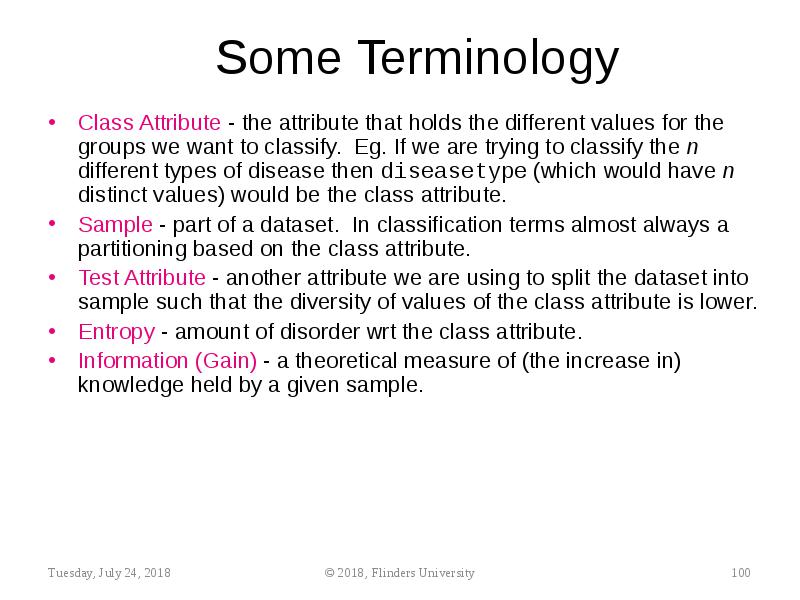

Class Attribute - the attribute that holds the different values for the groups we want to classify. Eg. If we are trying to classify the n different types of disease then diseasetype (which would have n distinct values) would be the class attribute.

• Class Attribute - the attribute that holds the different values for the groups we want to classify. Eg. If we are trying to classify the n different types of disease then diseasetype (which would have n distinct values) would be the class attribute.

• Sample - part of a dataset. In classification terms almost always a partitioning based on the class attribute.

• Test Attribute - another attribute we are using to split the dataset into sample such that the diversity of values of the class attribute is lower.

• Entropy - amount of disorder wrt the class attribute.

• Information (Gain) - a theoretical measure of (the increase in) knowledge held by a given sample.

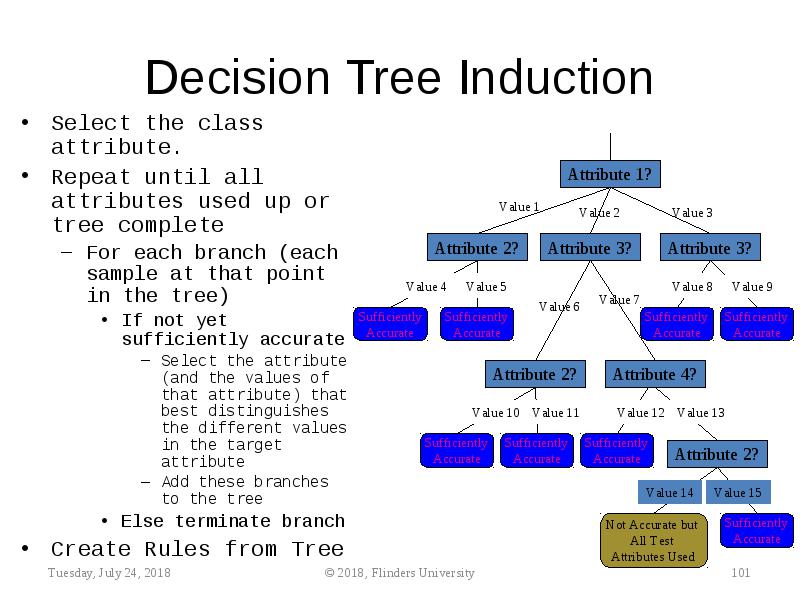

Select the class attribute.

• Select the class attribute.

• Repeat until all attributes used up or tree complete

• For each branch (each sample at that point in the tree)
• If not yet sufficiently accurate
• Select the attribute (and the values of that attribute) that best distinguishes the different values in the target attribute
• Add these branches to the tree
• Else terminate branch

• Create Rules from Tree

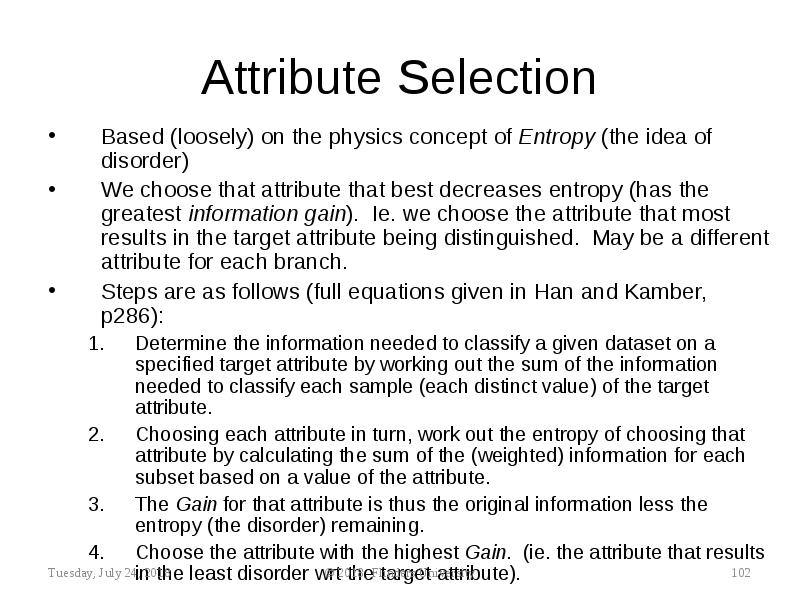

Based (loosely) on the physics concept of Entropy (the idea of disorder)

• Based (loosely) on the physics concept of Entropy (the idea of disorder)

• We choose that attribute that best decreases entropy (has the greatest information gain). Ie. we choose the attribute that most results in the target attribute being distinguished. May be a different attribute for each branch.

• Steps are as follows (full equations given in Han and Kamber, p286):

• Determine the information needed to classify a given dataset on a specified target attribute by working out the sum of the information needed to classify each sample (each distinct value) of the target attribute.
• Choosing each attribute in turn, work out the entropy of choosing that attribute by calculating the sum of the (weighted) information for each subset based on a value of the attribute.
• The Gain for that attribute is thus the original information less the entropy (the disorder) remaining.
• Choose the attribute with the highest Gain. (ie. the attribute that results in the least disorder wrt the target attribute).

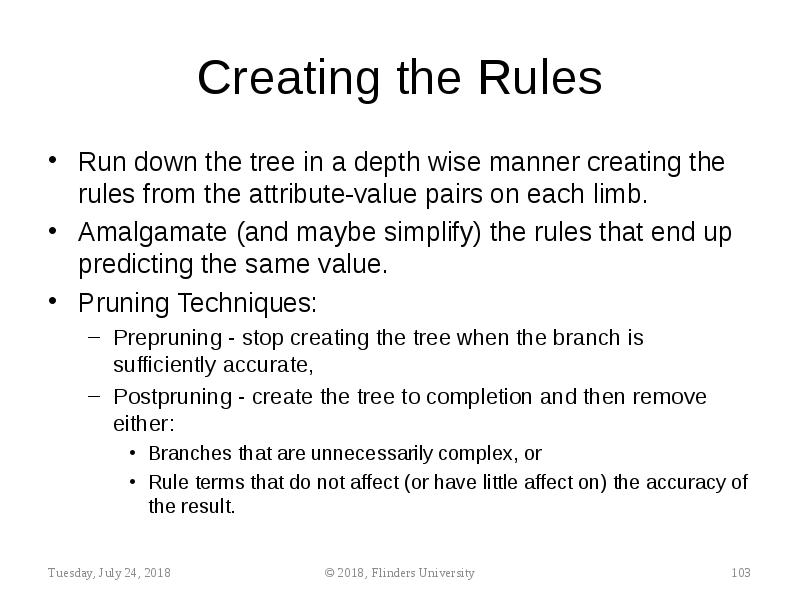

Run down the tree in a depth wise manner creating the rules from the attribute-value pairs on each limb.

• Run down the tree in a depth wise manner creating the rules from the attribute-value pairs on each limb.

• Amalgamate (and maybe simplify) the rules that end up predicting the same value.

• Pruning Techniques:

• Prepruning - stop creating the tree when the branch is sufficiently accurate,
• Postpruning - create the tree to completion and then remove either:
• Branches that are unnecessarily complex, or
• Rule terms that do not affect (or have little affect on) the accuracy of the result.

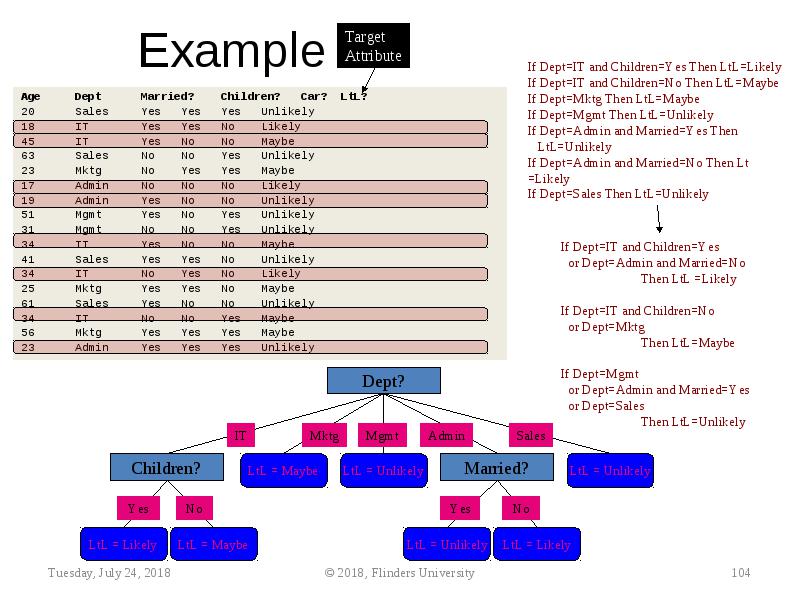

Age Dept Married? Children? Car? LtL?

• Age Dept Married? Children? Car? LtL?

• 20 Sales Yes Yes Yes Unlikely

• 18 IT Yes Yes No Likely

• 45 IT Yes No No Maybe

• 63 Sales No No Yes Unlikely

• 23 Mktg No Yes Yes Maybe

• 17 Admin No No No Likely

• 19 Admin Yes No No Unlikely

• 51 Mgmt Yes No Yes Unlikely

• 31 Mgmt No No Yes Unlikely

• 34 IT Yes No No Maybe

• 41 Sales Yes Yes No Unlikely

• 34 IT No Yes No Likely

• 25 Mktg Yes Yes No Maybe

• 61 Sales Yes No No Unlikely

• 34 IT No No Yes Maybe

• 56 Mktg Yes Yes Yes Maybe

• 23 Admin Yes Yes Yes Unlikely

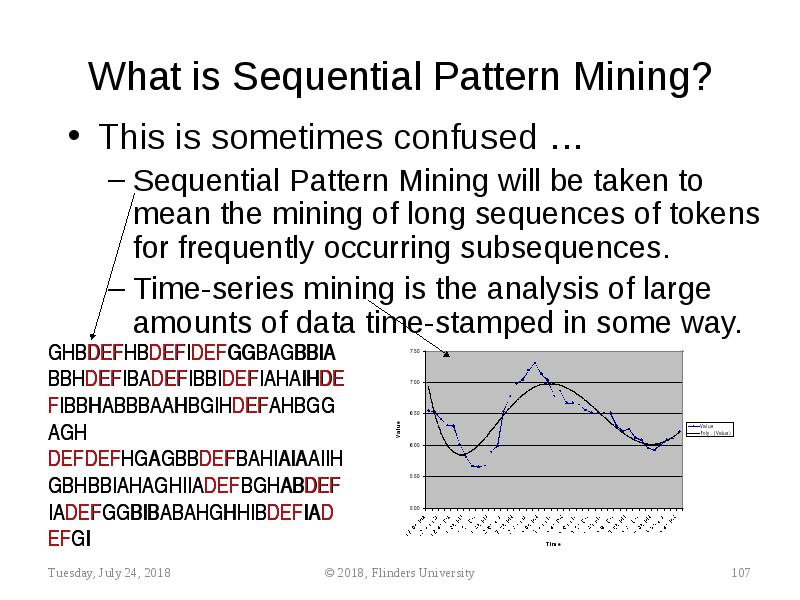

This is sometimes confused …

• This is sometimes confused …

• Sequential Pattern Mining will be taken to mean the mining of long sequences of tokens for frequently occurring subsequences.
• Time-series mining is the analysis of large amounts of data time-stamped in some way.
