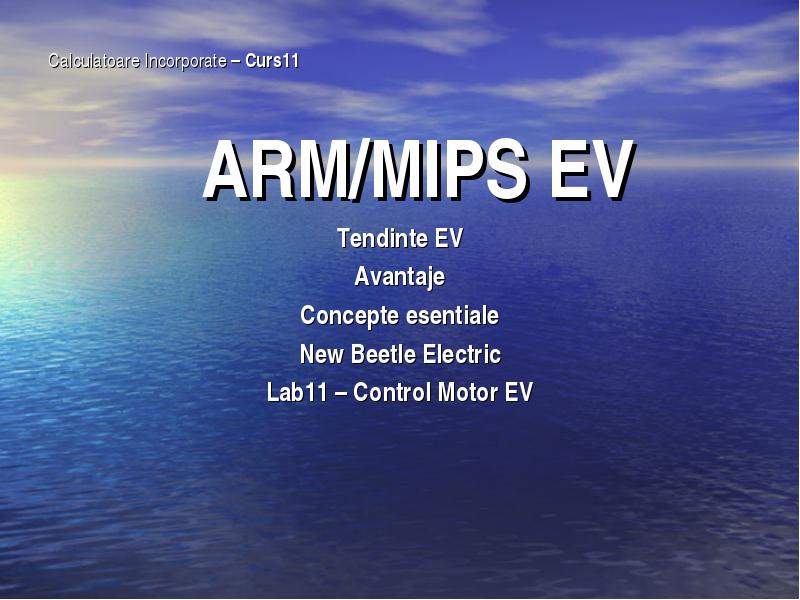

Calculatoare Incorporate – Curs11

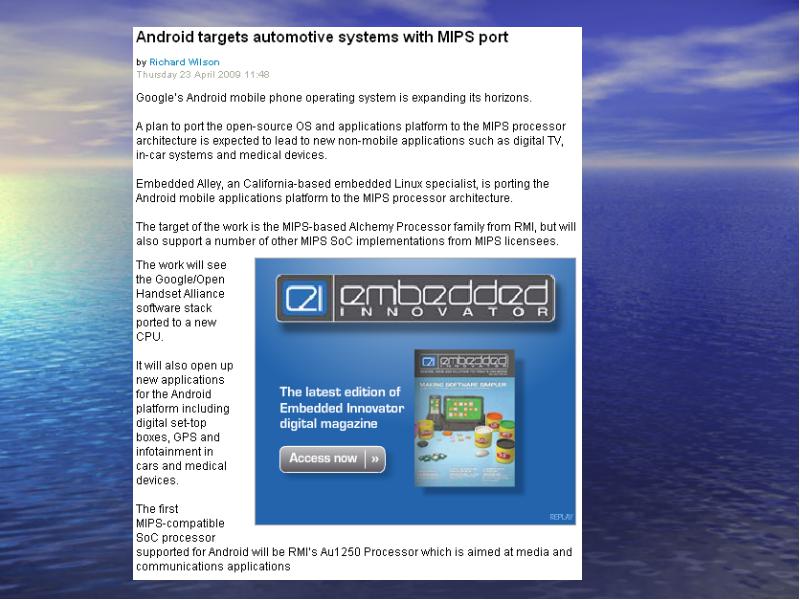

  • ARM/MIPS EV

  • Tendinte EV

  • Avantaje

  • Concepte esentiale

  • New Beetle Electric

  • Lab11 – Control Motor EV






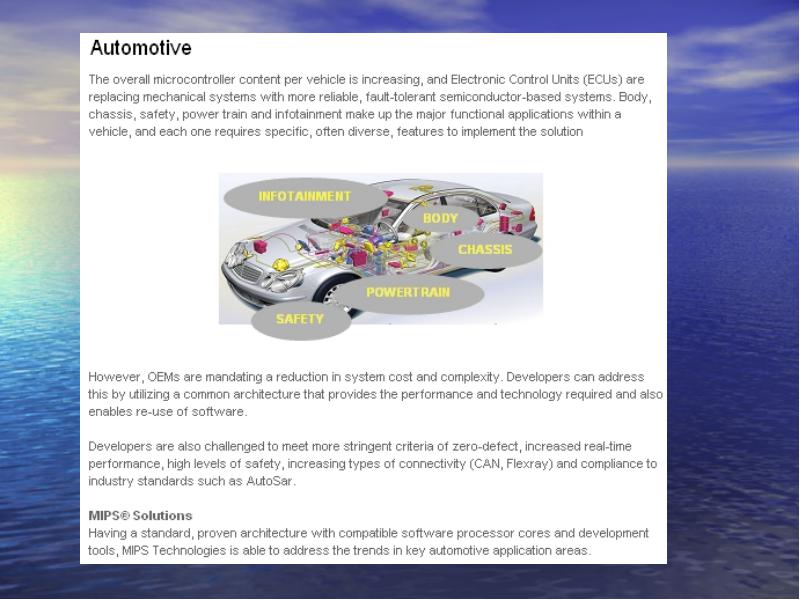

Automotive – 200x



Pretul miscarii



Automotive 201x

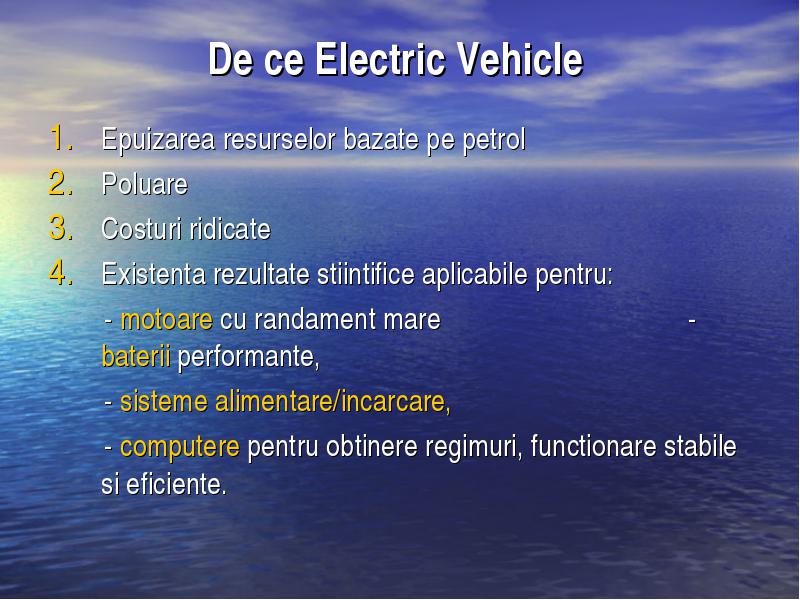

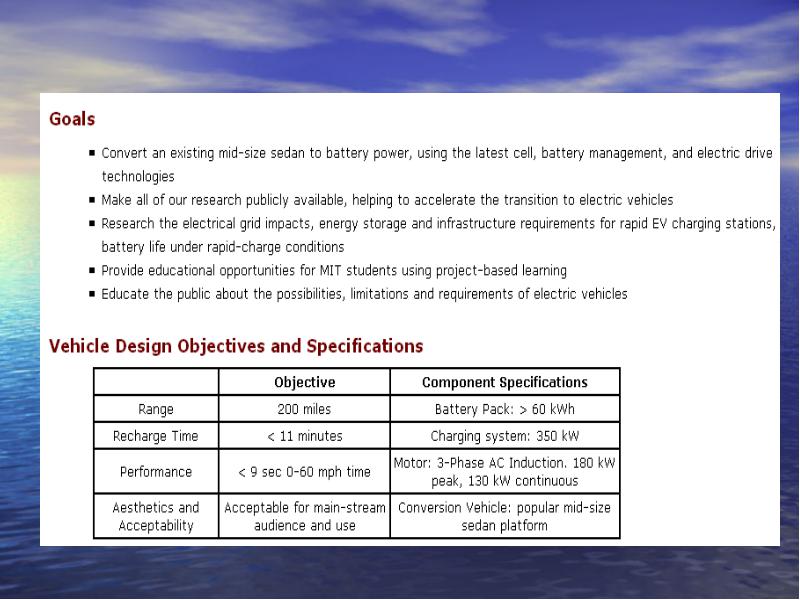

De ce Electric Vehicle

  • Epuizarea resurselor bazate pe petrol

  • Poluare

  • Costuri ridicate

  • Existenta rezultate stiintifice aplicabile pentru:

  • - motoare cu randament mare - baterii performante,

  • - sisteme alimentare/incarcare,

  • - computere pentru obtinere regimuri, functionare stabile si eficiente.

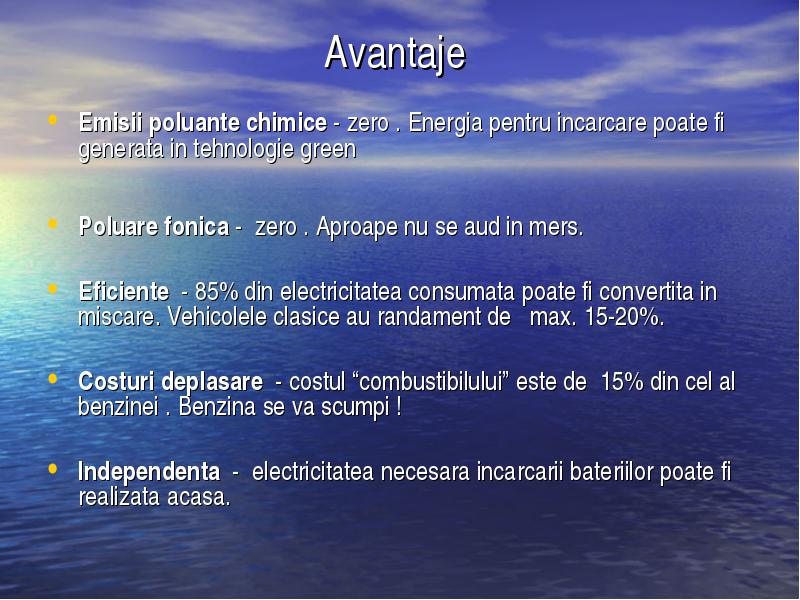

Avantaje

  • Emisii poluante chimice - zero . Energia pentru incarcare poate fi generata in tehnologie green

  • Poluare fonica - zero . Aproape nu se aud in mers.

  • Eficiente - 85% din electricitatea consumata poate fi convertita in miscare. Vehicolele clasice au randament de max. 15-20%.

  • Costuri deplasare - costul “combustibilului” este de 15% din cel al benzinei . Benzina se va scumpi !

  • Independenta - electricitatea necesara incarcarii bateriilor poate fi realizata acasa.

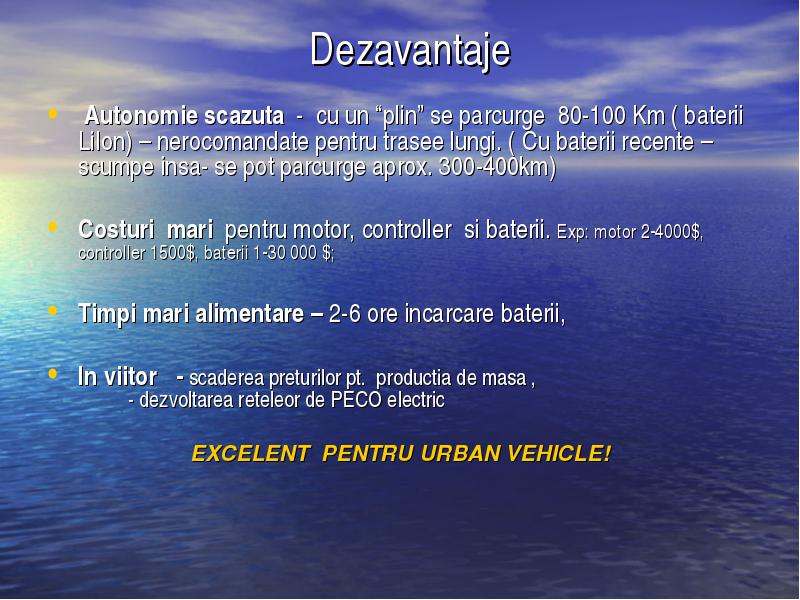

Dezavantaje

  • Autonomie scazuta - cu un “plin” se parcurge 80-100 Km ( baterii LiIon) – nerocomandate pentru trasee lungi. ( Cu baterii recente – scumpe insa- se pot parcurge aprox. 300-400km)

  • Costuri mari pentru motor, controller si baterii. Exp: motor 2-4000$, controller 1500$, baterii 1-30 000 $;

  • Timpi mari alimentare – 2-6 ore incarcare baterii,

  • In viitor - scaderea preturilor pt. productia de masa , - dezvoltarea reteleor de PECO electric

  • EXCELENT PENTRU URBAN VEHICLE!



Solutie : conversie clasic-electric

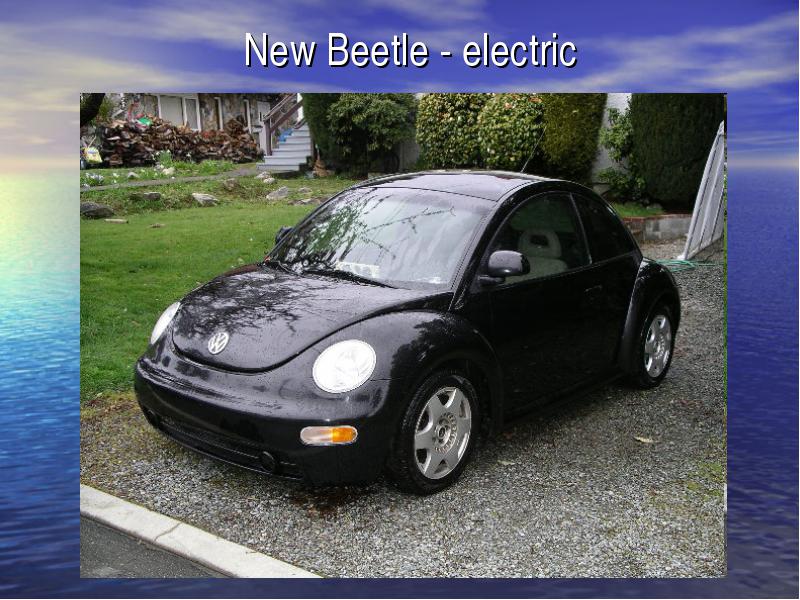

New Beetle - electric

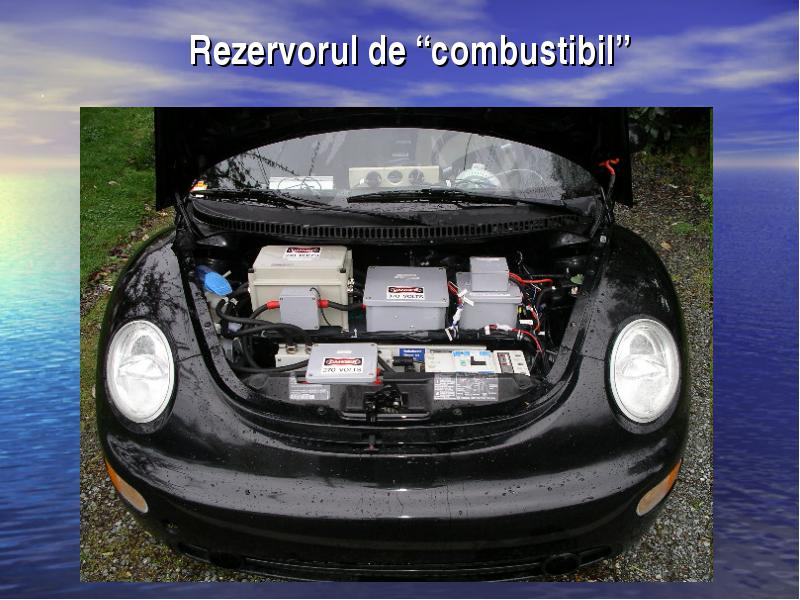

Rezervorul de “combustibil”

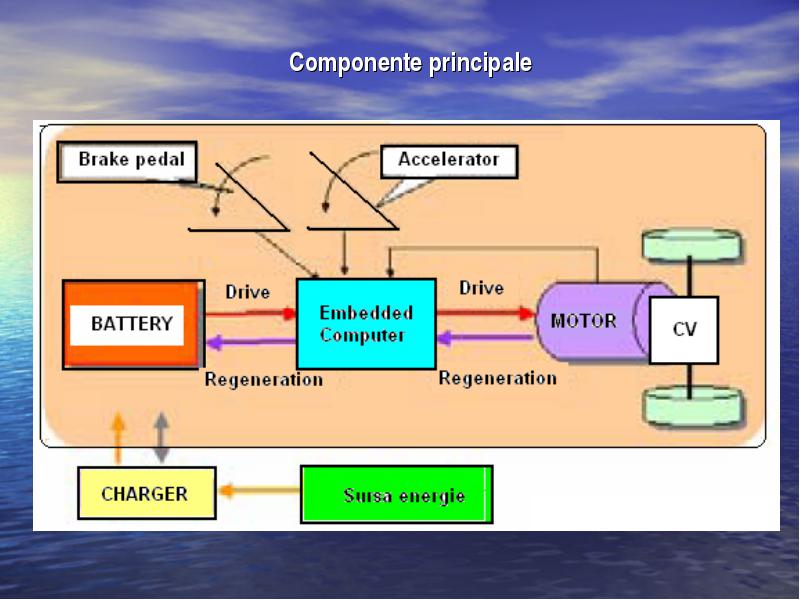

Componente principale

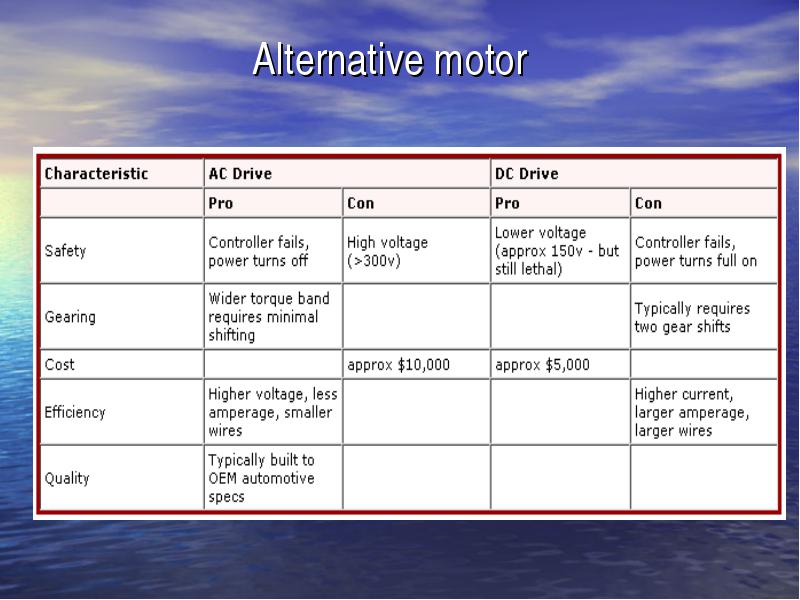

Alternative motor

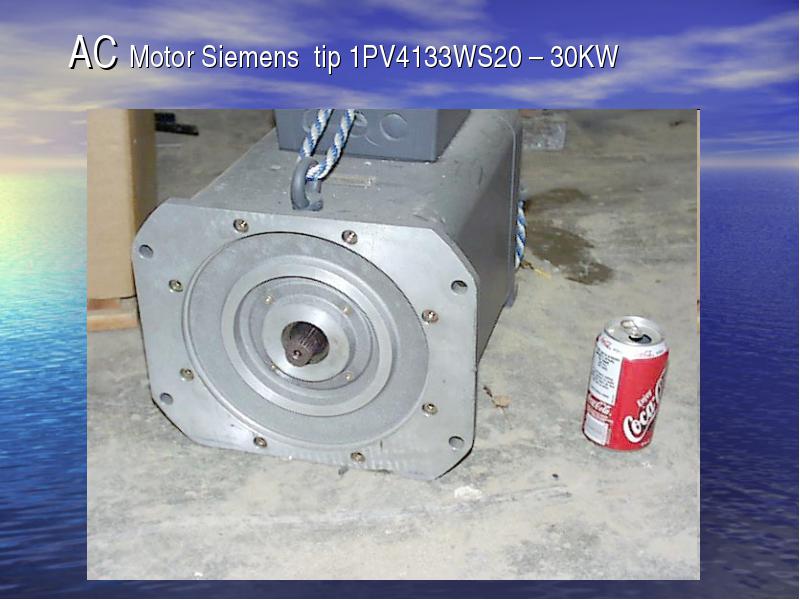

AC Motor Siemens tip 1PV4133WS20 – 30KW

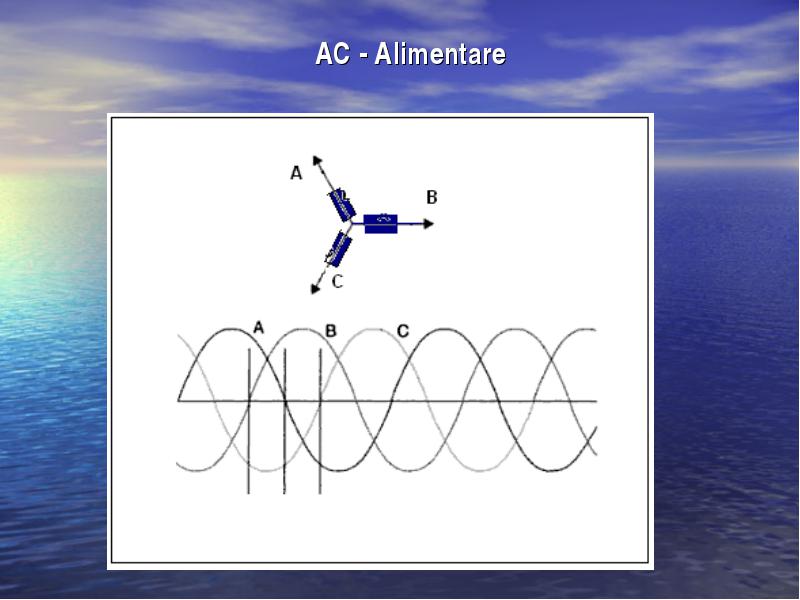

AC - Alimentare

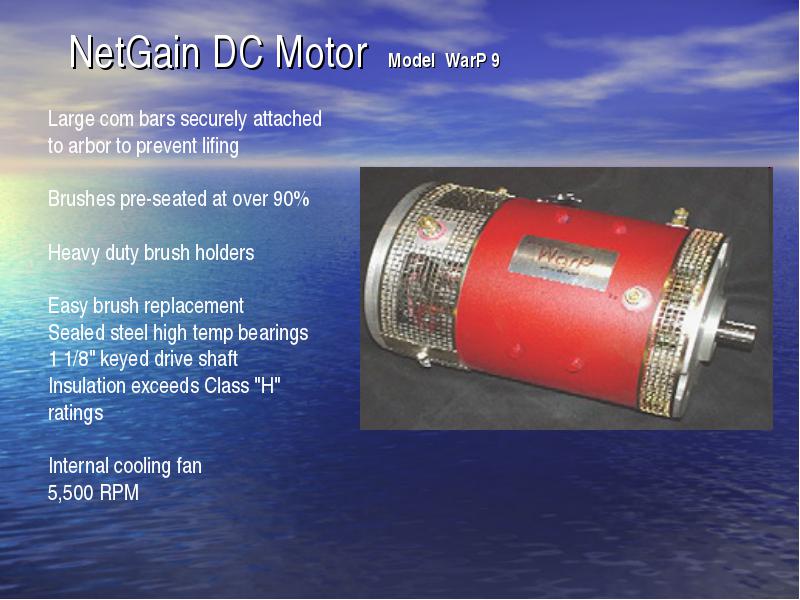

NetGain DC Motor Model WarP 9

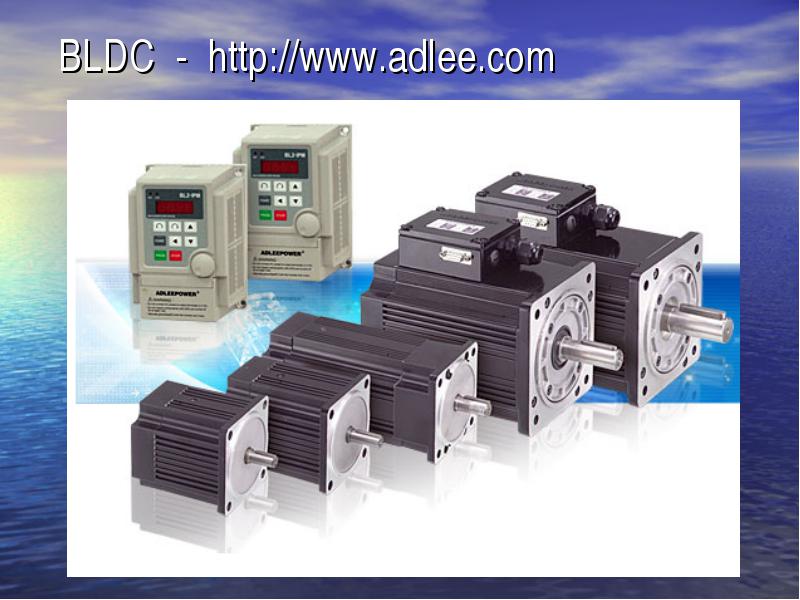

BLDC - http://www.adlee.com

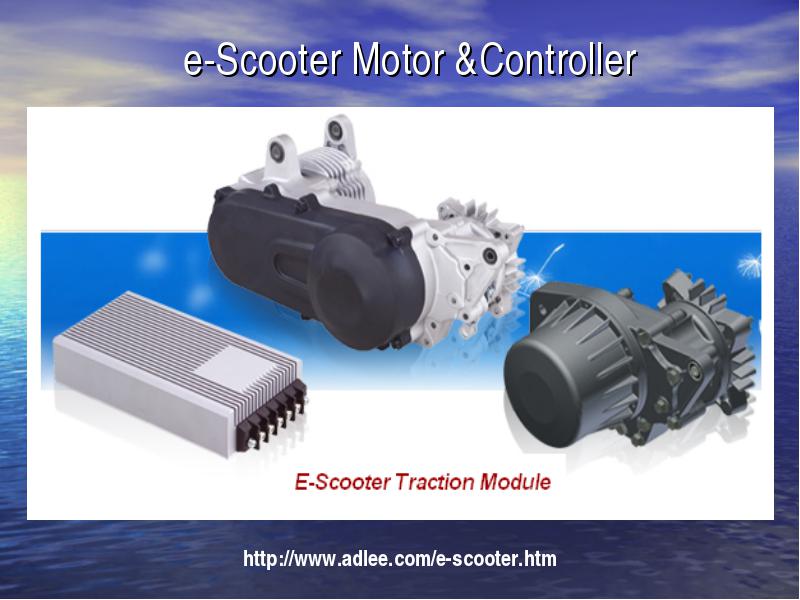

e-Scooter Motor &Controller



Baterii posibile

  • 1. Li-Polymer battery. While still quite rare if scaled up to usable in EV size and up front expensive, at least it became available. Treated right, can be less expensive in a long run than lead acid batteries. Require sophisticated BMS (battery management system).

  • 2. Li-Ion battery. Not as expensive and LiP battery above, but the next best thing. Technical requirements are the same as for LiP battery. Advantages (to me) are worth trying these. Require sophisticated BMS (battery management system).

  • 3. NiNaCl Zebra battery. Expensive, looks like sold to OEM only, and limited selection (well matched to AC system requirements though).

  • 4. NiZn battery - relatively new player on the market - comparable to NiMH and NiCd and (recently became) far less expensive.

  • 5. NiMH battery. Not available for non-technical reasons and may never be available to you and to me.

  • 6. NiCd battery. Realistically available from SAFT (France) or its subdivision ALCAD (Sweden). Expensive up front, but cheap over its long life time.

  • 7.  PbA Gel Cell battery - quite a few choices.

  • 8. PbA AGM sealed deep cycle battery - quite a few choices 9. PbA flooded battery - many choices.

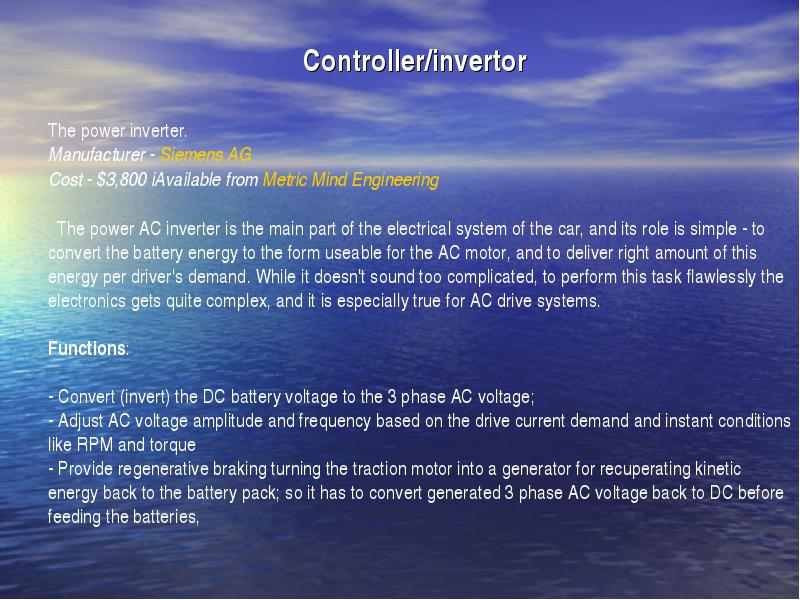

Controller/invertor

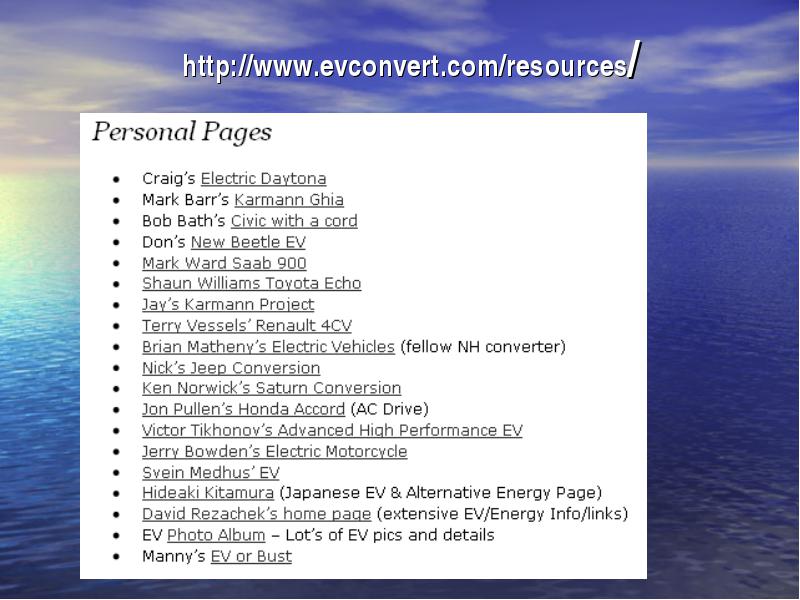

http://www.evconvert.com/resources/

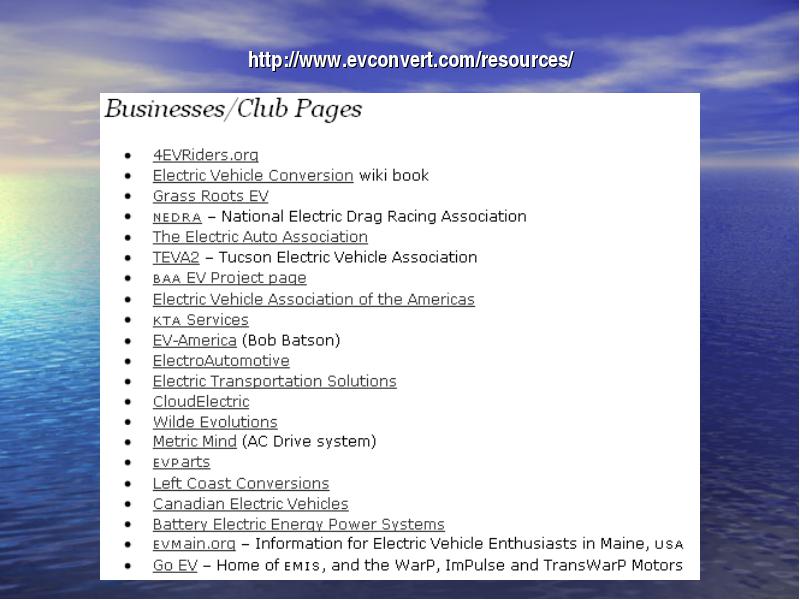

http://www.evconvert.com/resources/

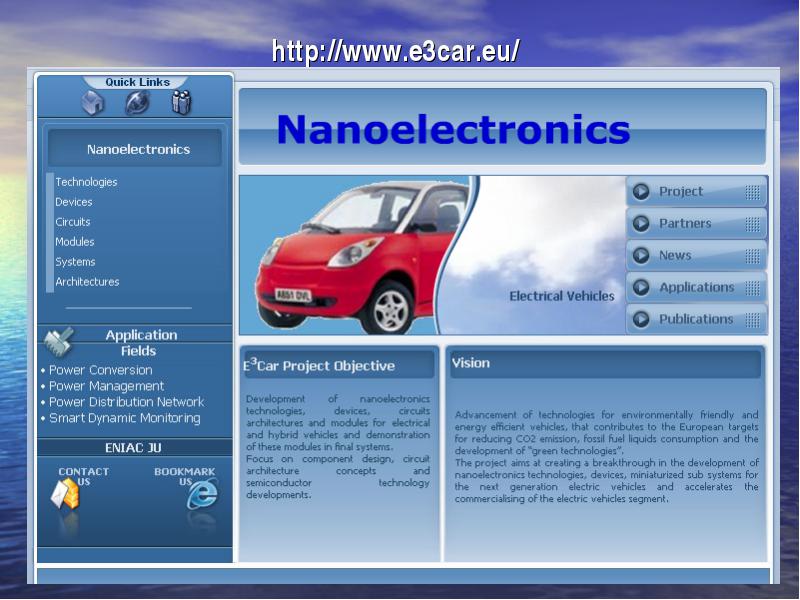

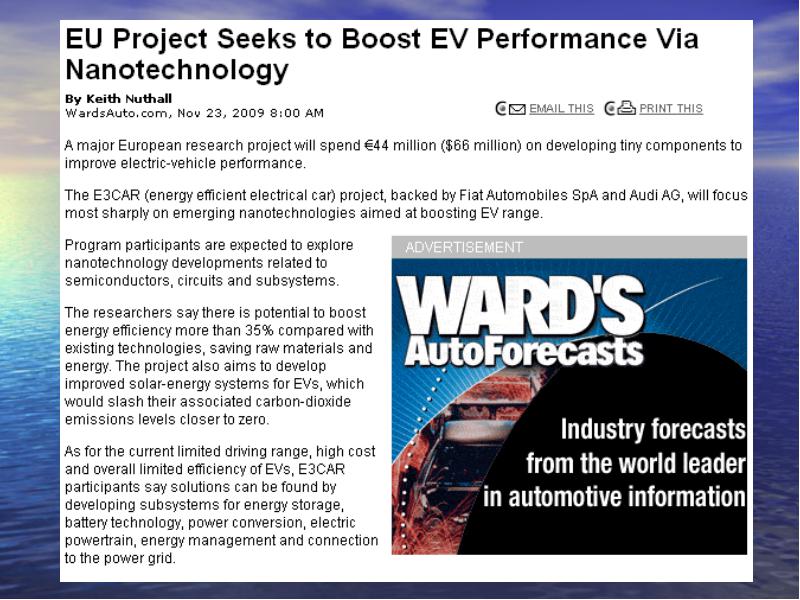

http://www.e3car.eu/

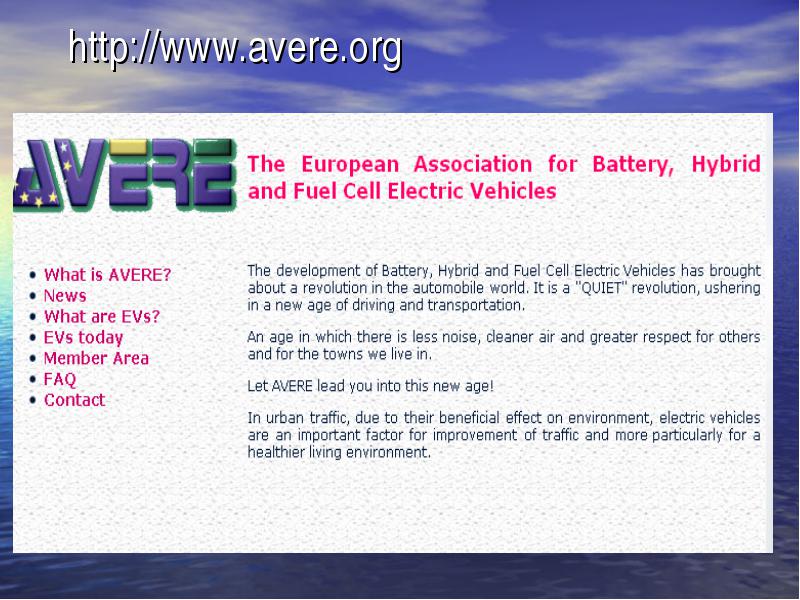

http://www.avere.org



PE – terminologie 2



PE – terminologie 3









BeanWizard



Freescale Automotive MCU/DSC



Freescle Automotive 8 bit MCU



Freescale Automotive 16 Bit MCU



Embedded DSC



DSC – Alternativa Freescale



Platforma de dezvoltare cu DSC 58Fxxx



Freescale 56F8365 Chip



Sistem de dezvoltare cu 56F8013



Interfata LED-uri pt. depanare



Interfata Kbd



Platforma dezvoltare aplicatii cu 56F8013



DSC56F8000 – Arhitectura Interna



DSC 56F8000 – Model de programare I









56F800 DSC – Modul PWM
