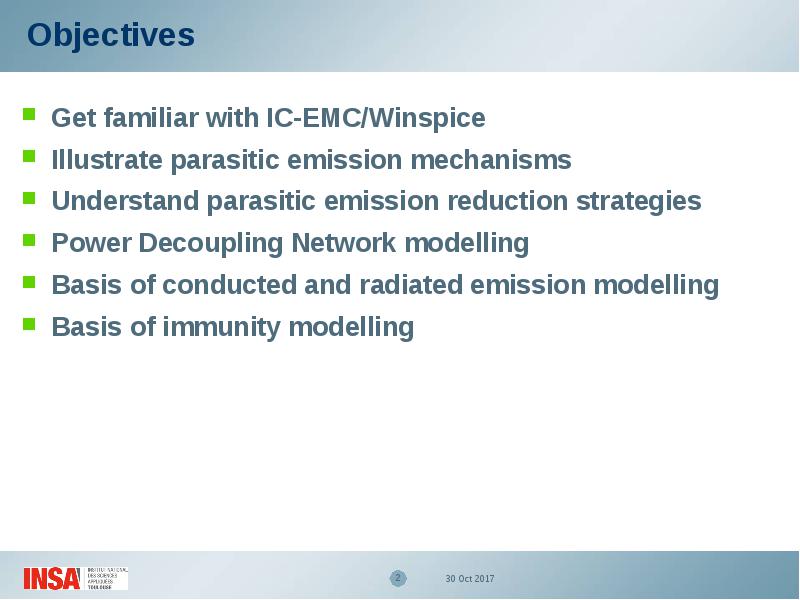

• Get familiar with IC-EMC/Winspice

• Illustrate parasitic emission mechanisms

• Understand parasitic emission reduction strategies

• Power Decoupling Network modelling

• Basis of conducted and radiated emission modelling

• Basis of immunity modelling

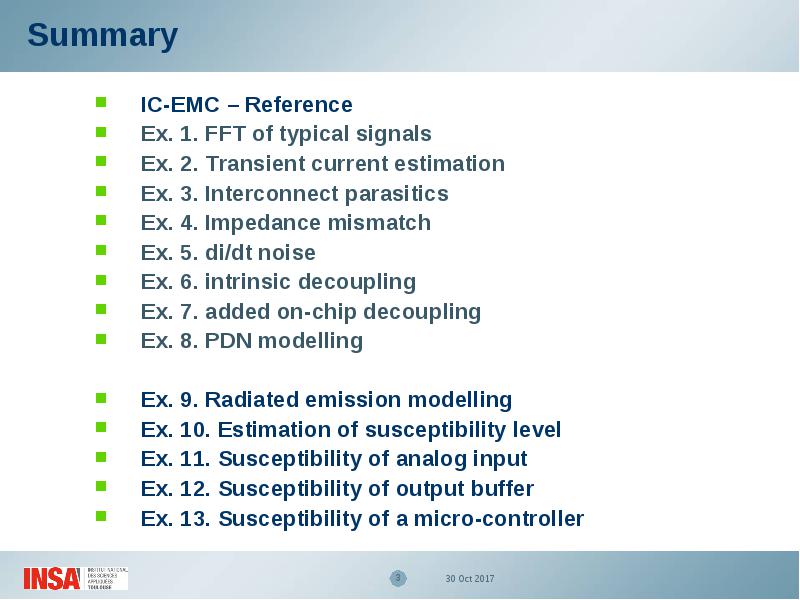

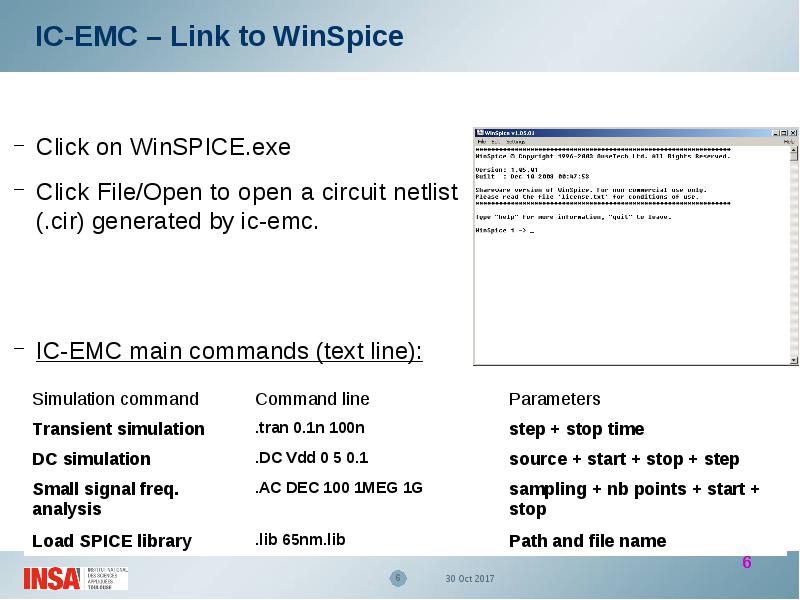

IC-EMC – Reference

• IC-EMC – Reference

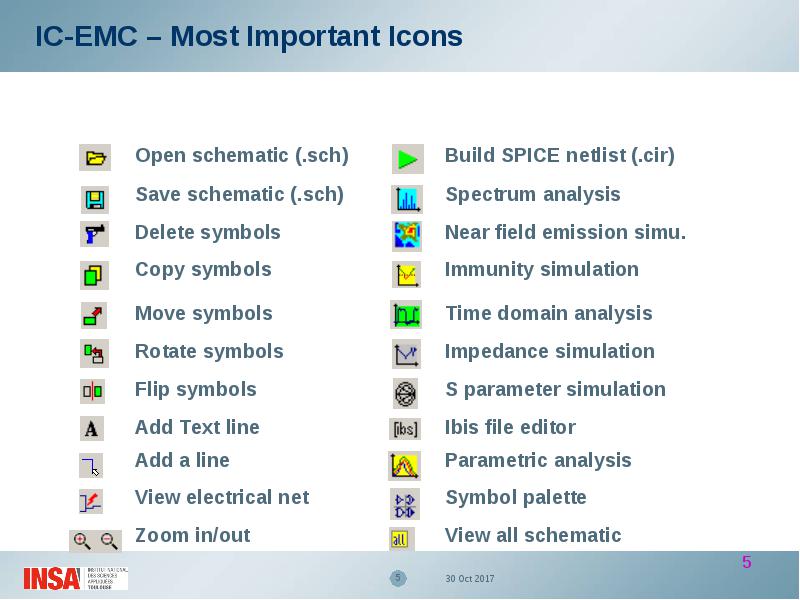

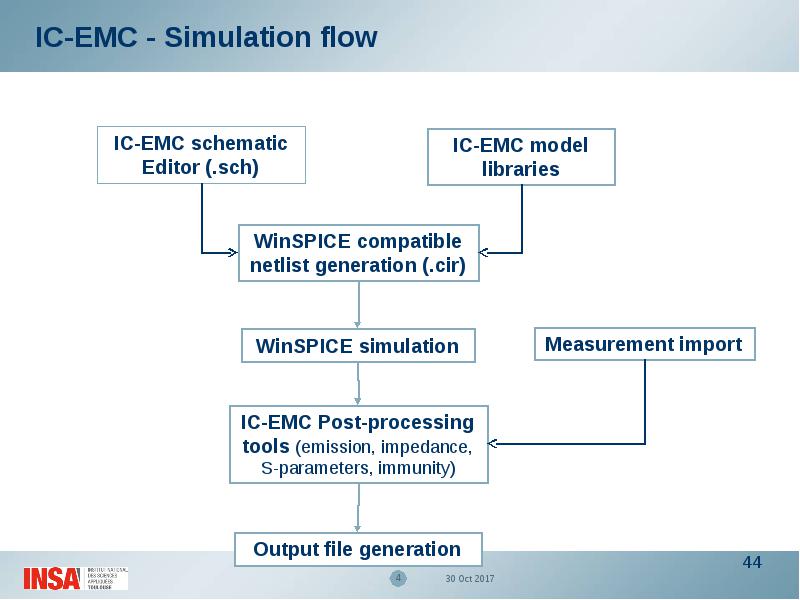

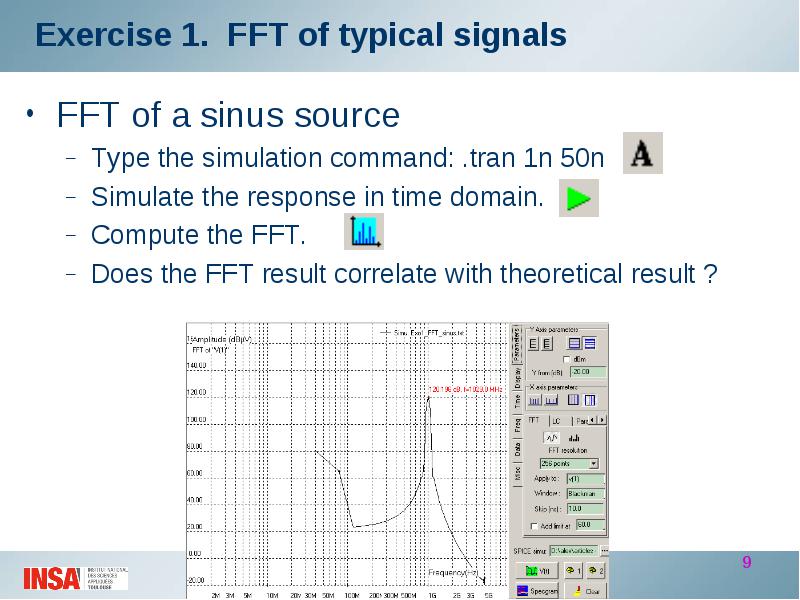

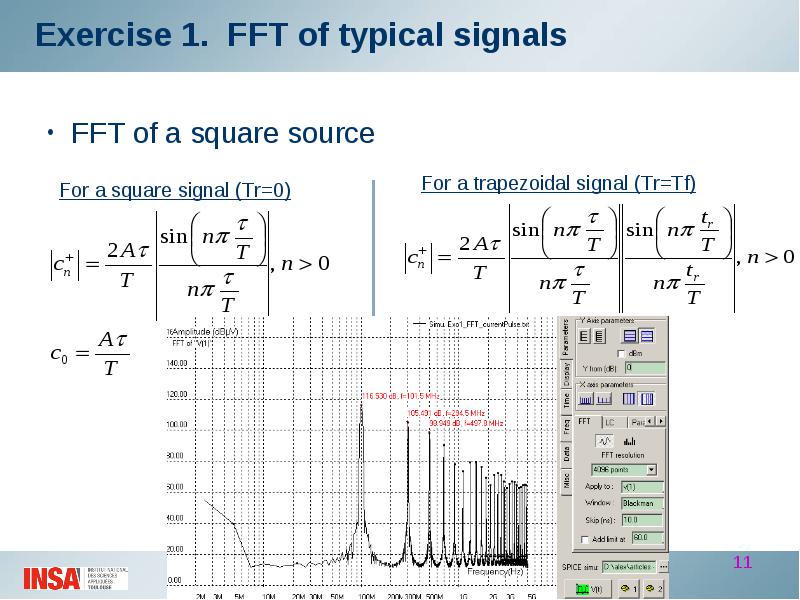

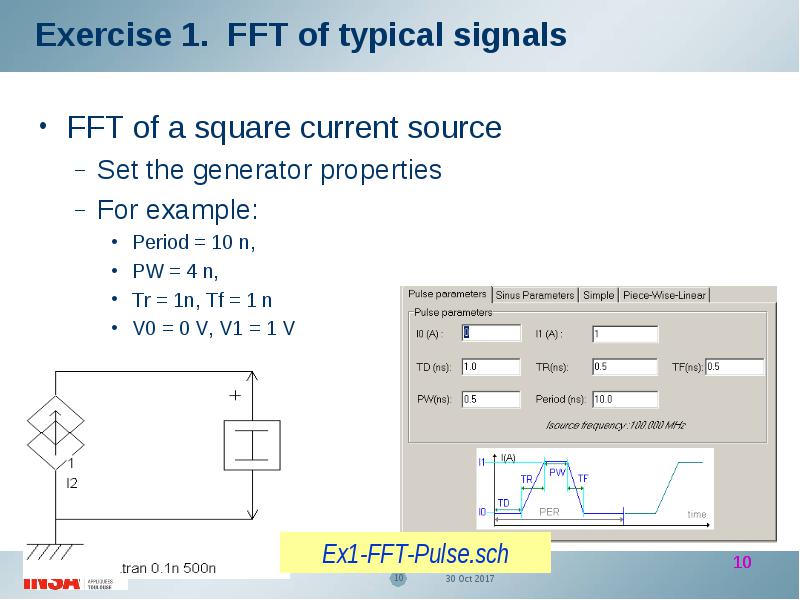

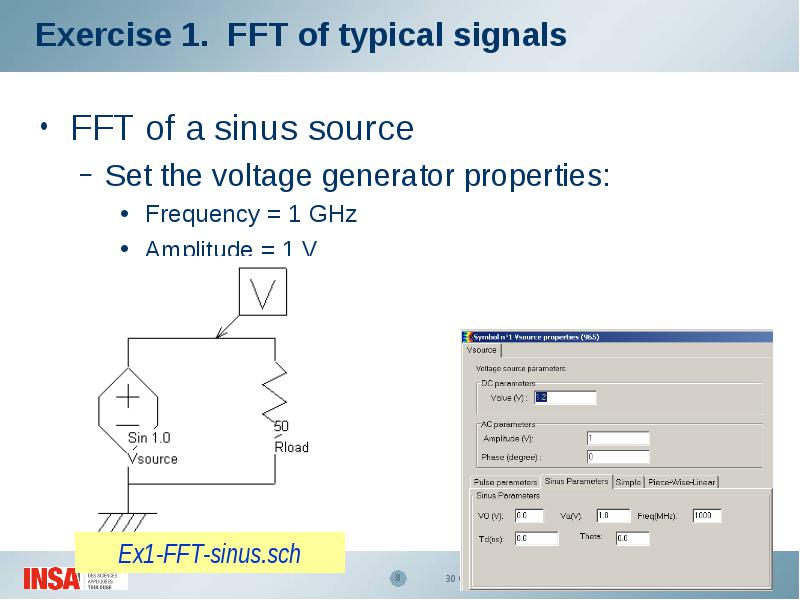

• Ex. 1. FFT of typical signals

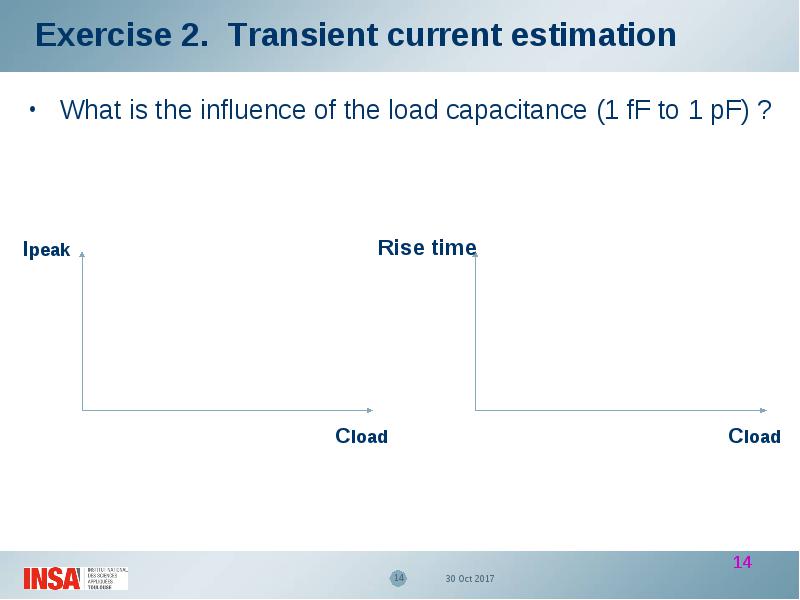

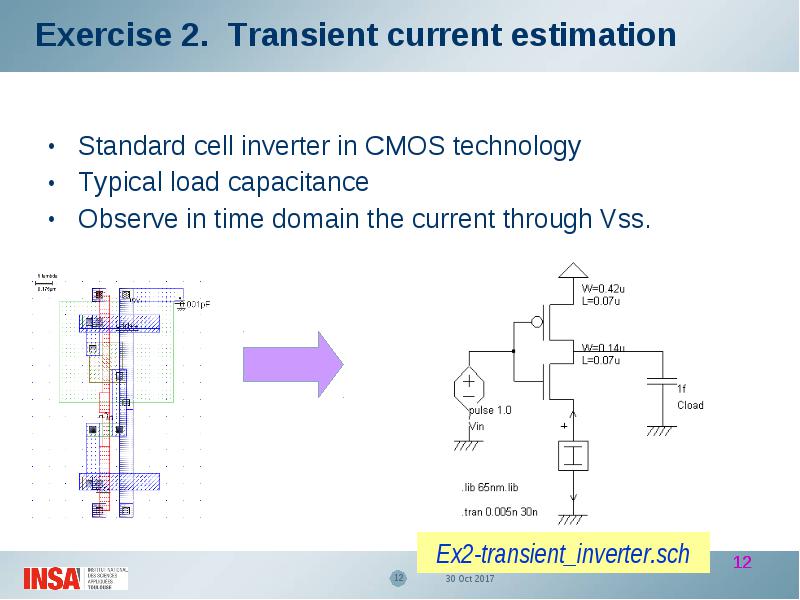

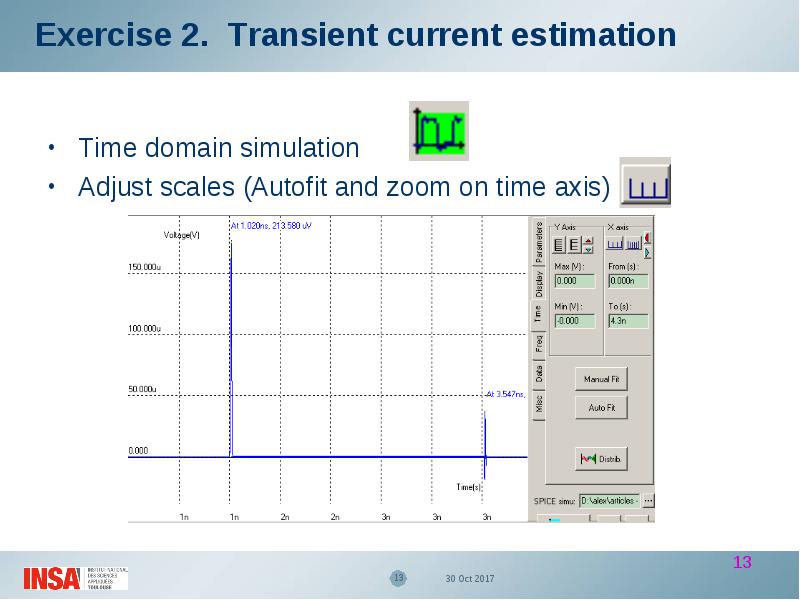

• Ex. 2. Transient current estimation

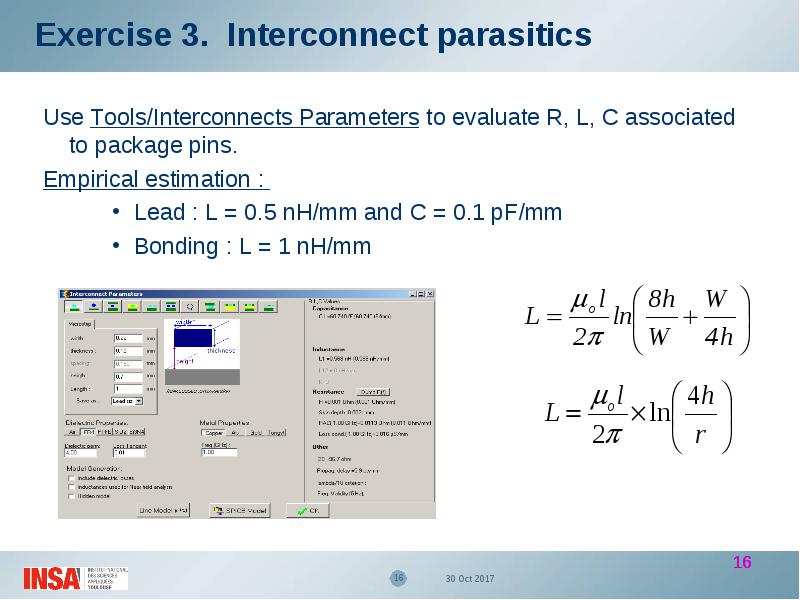

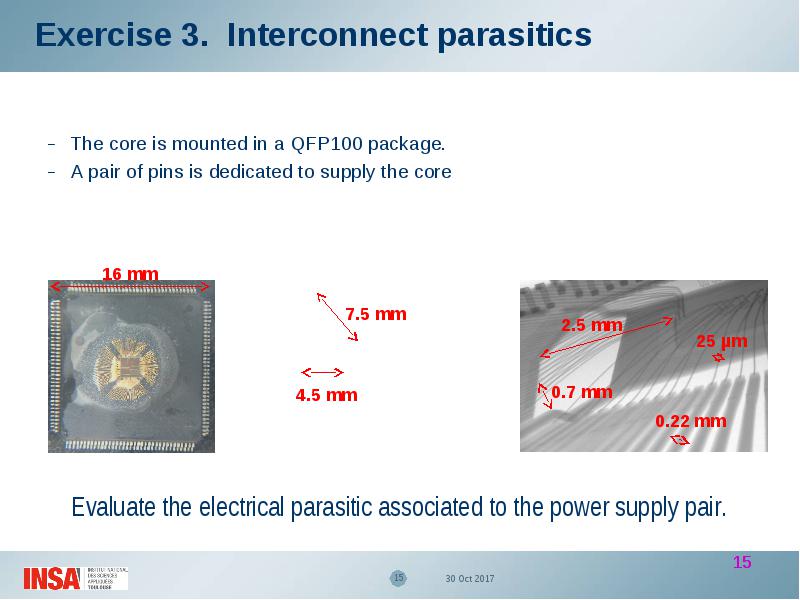

• Ex. 3. Interconnect parasitics

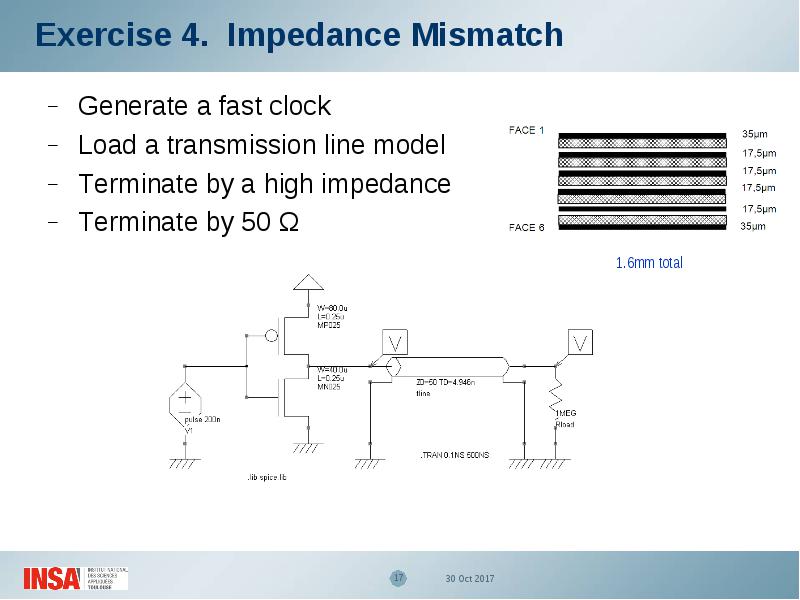

• Ex. 4. Impedance mismatch

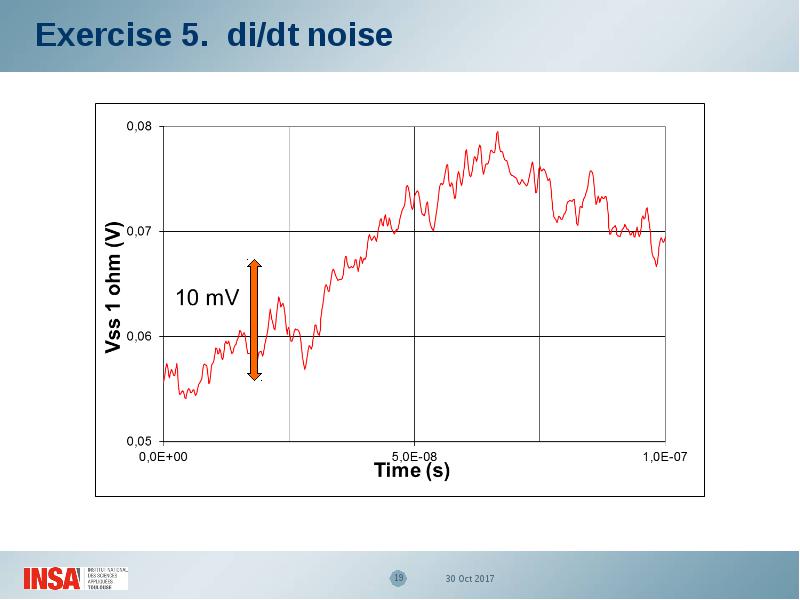

• Ex. 5. di/dt noise

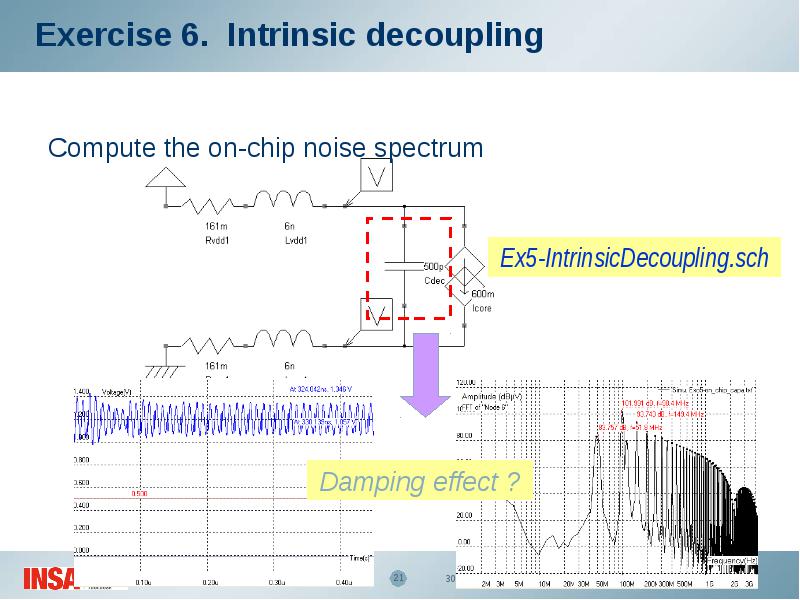

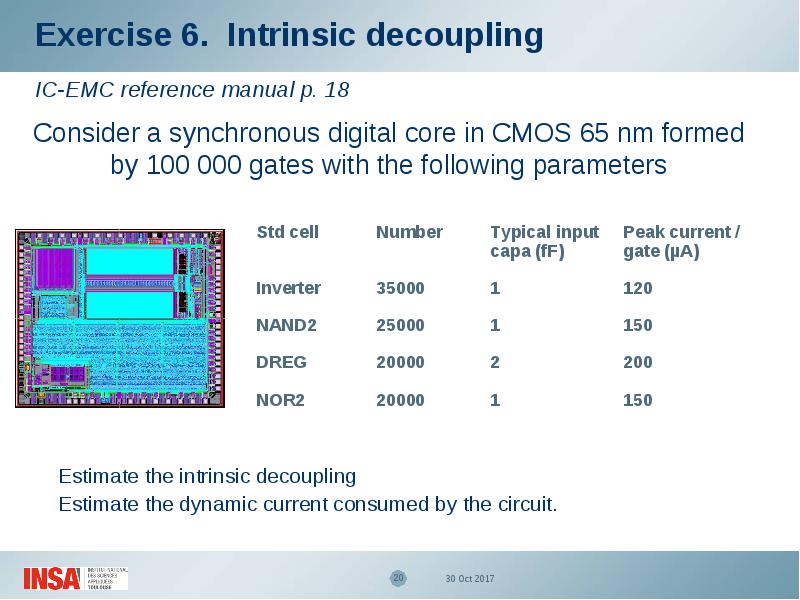

• Ex. 6. intrinsic decoupling

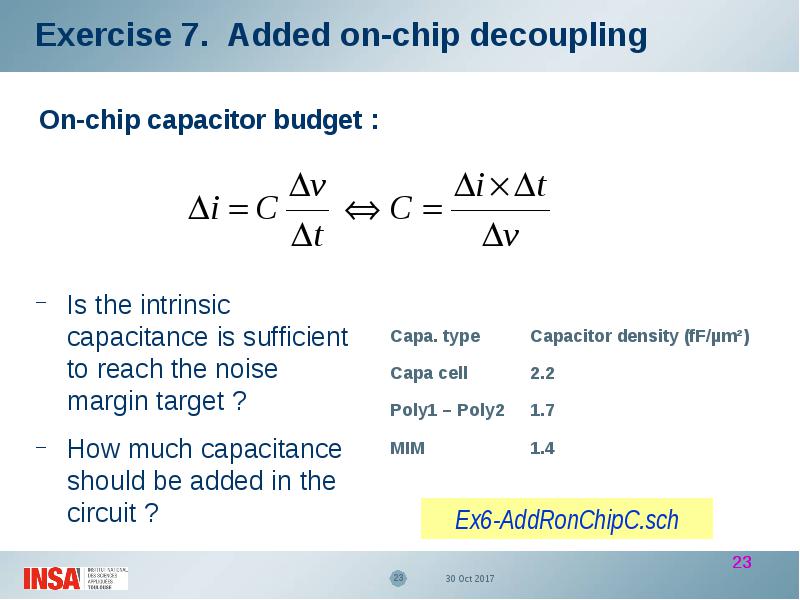

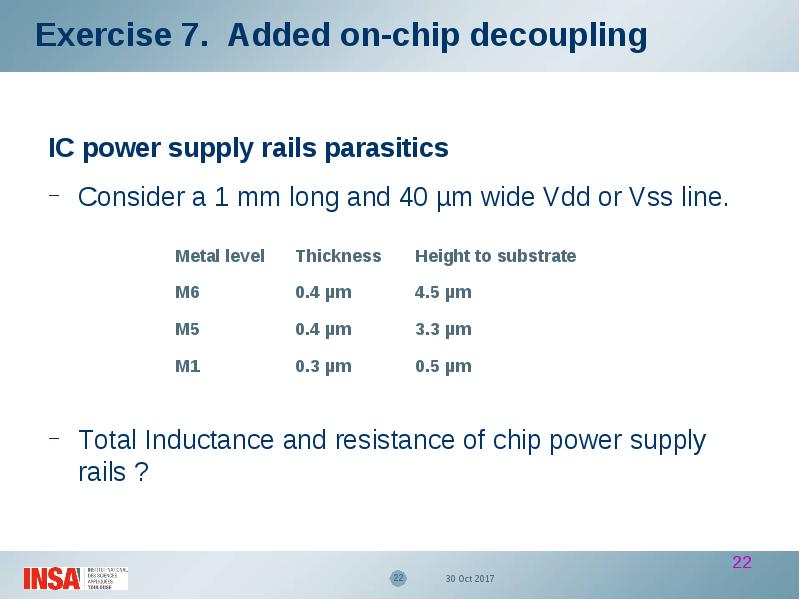

• Ex. 7. added on-chip decoupling

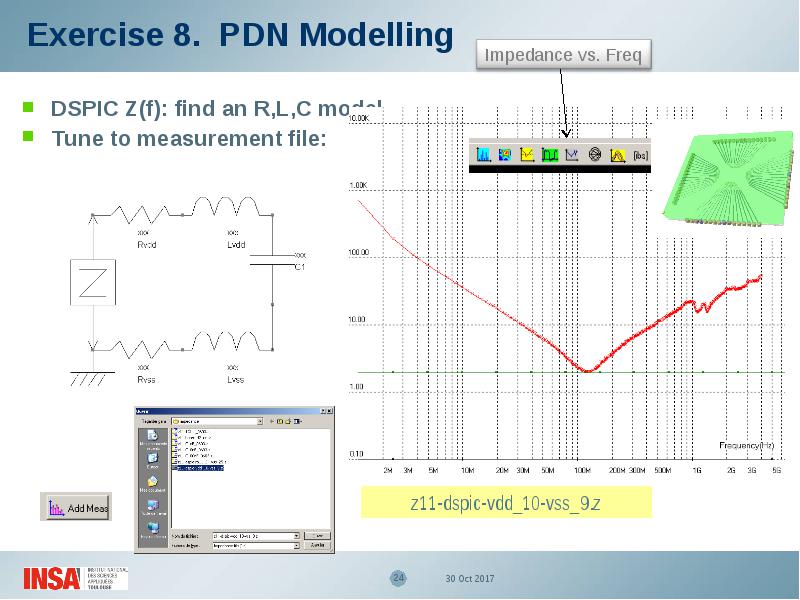

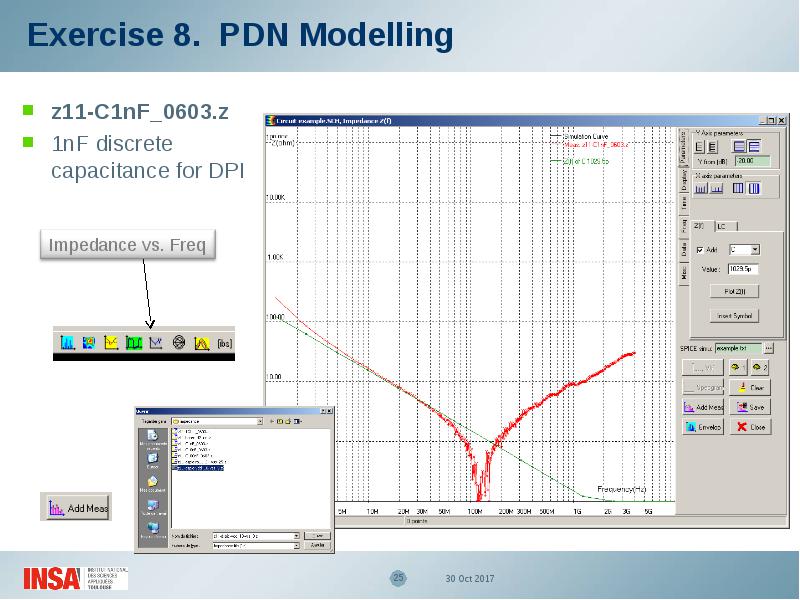

• Ex. 8. PDN modelling

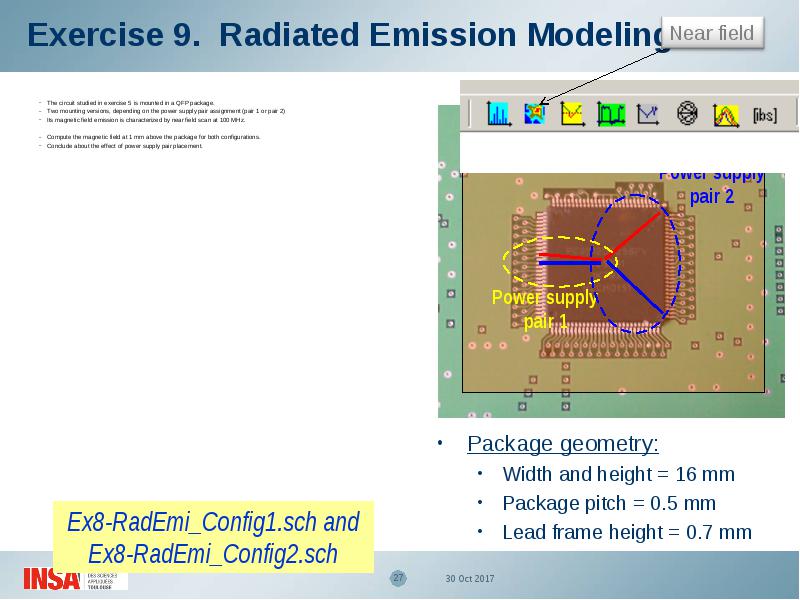

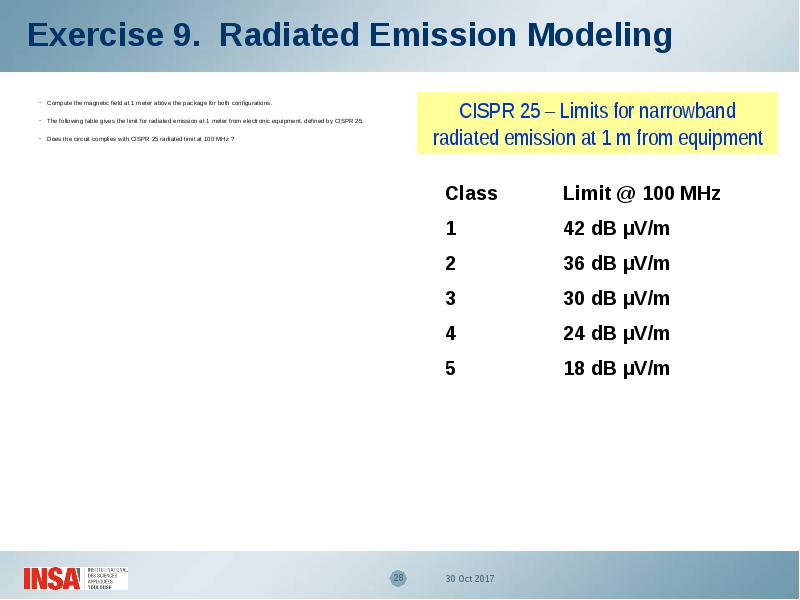

• Ex. 9. Radiated emission modelling

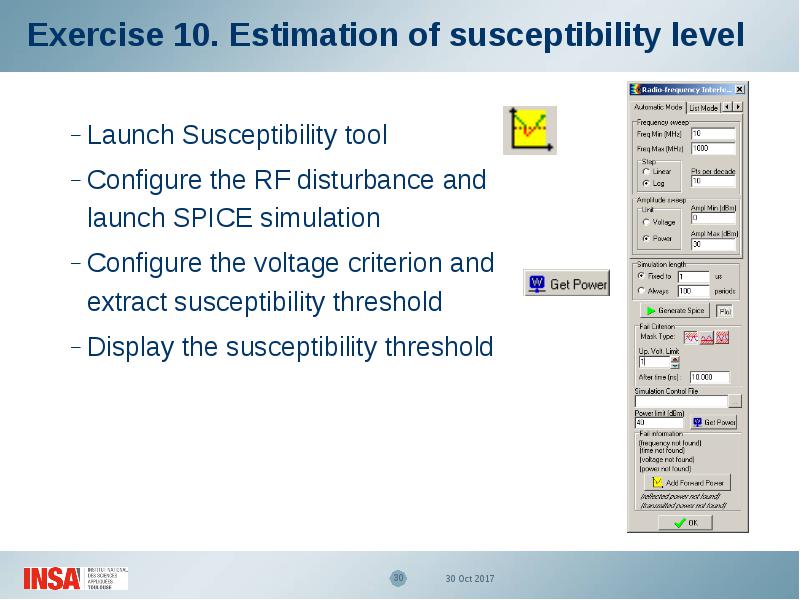

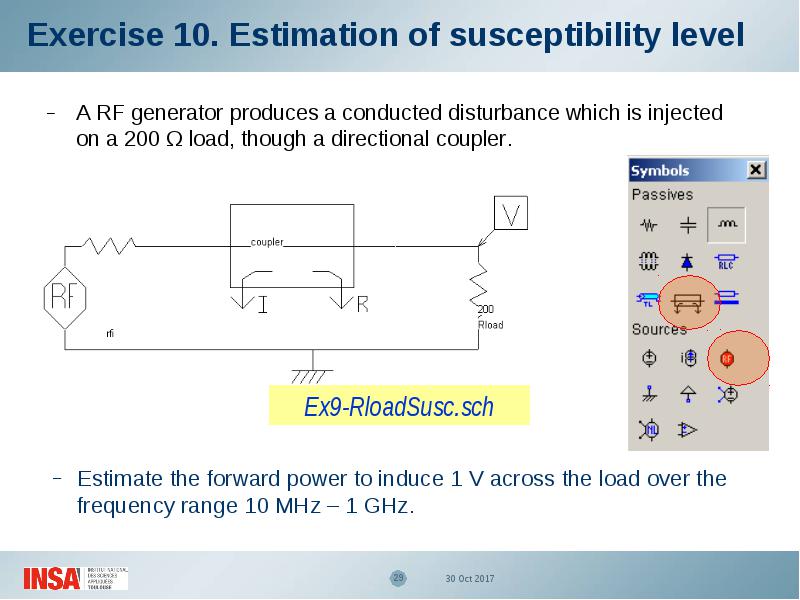

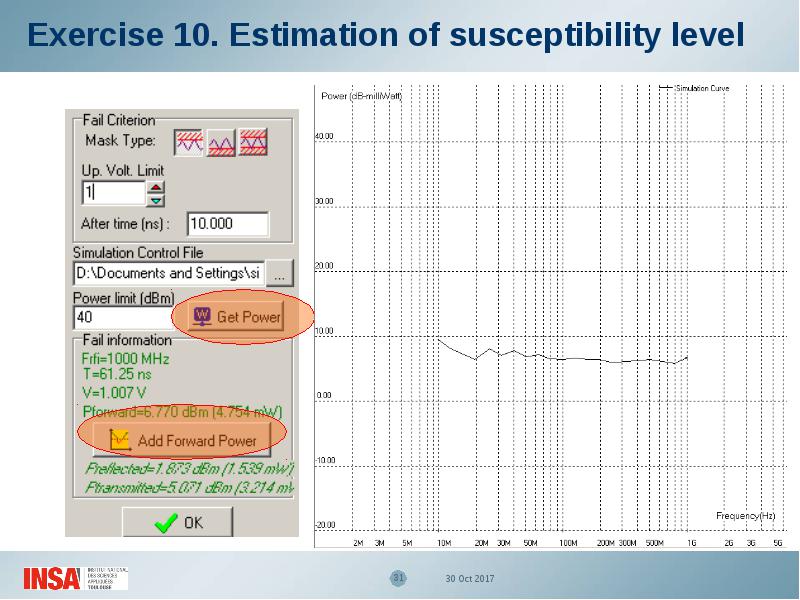

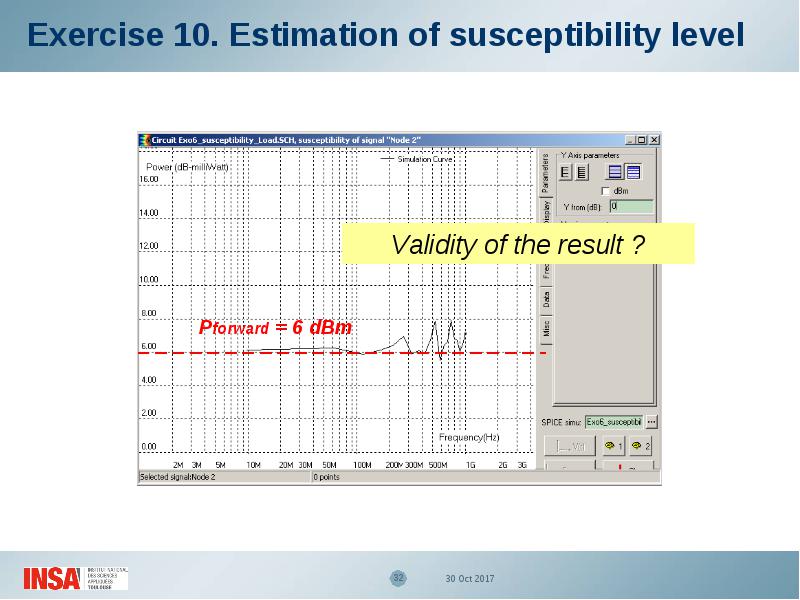

• Ex. 10. Estimation of susceptibility level

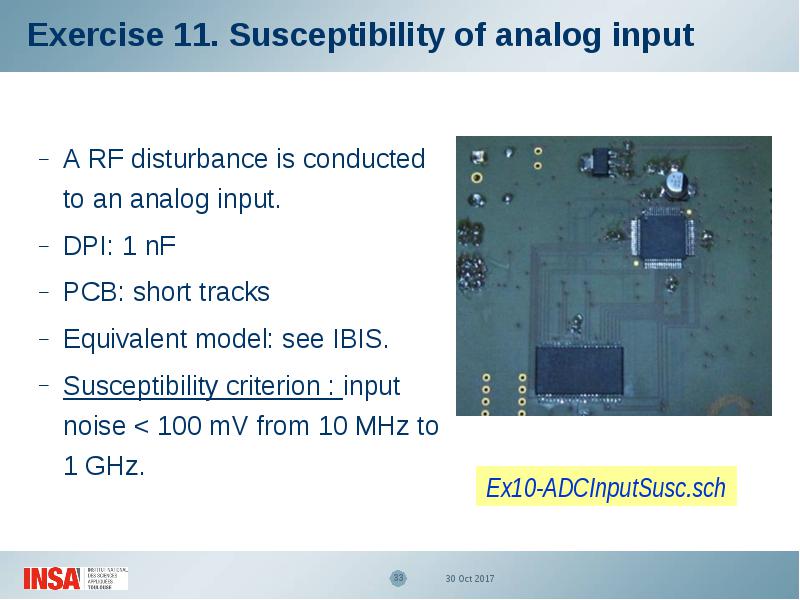

• Ex. 11. Susceptibility of analog input

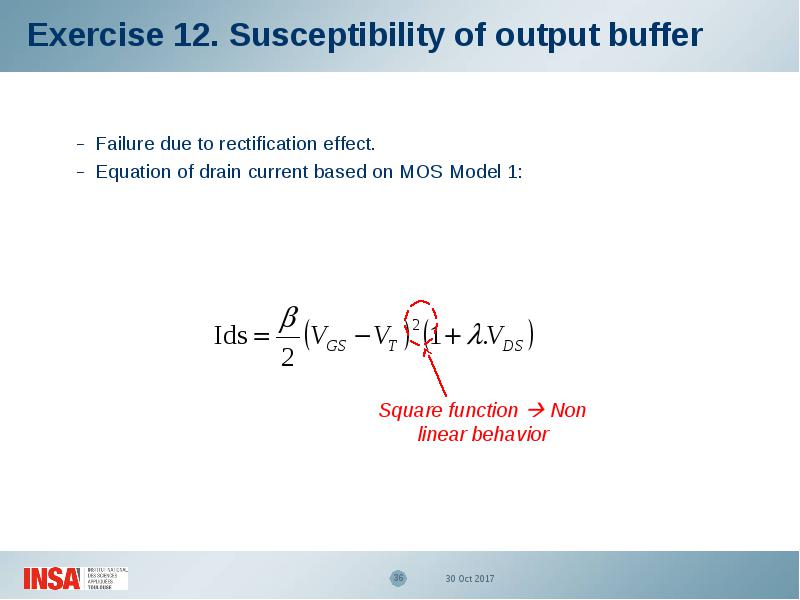

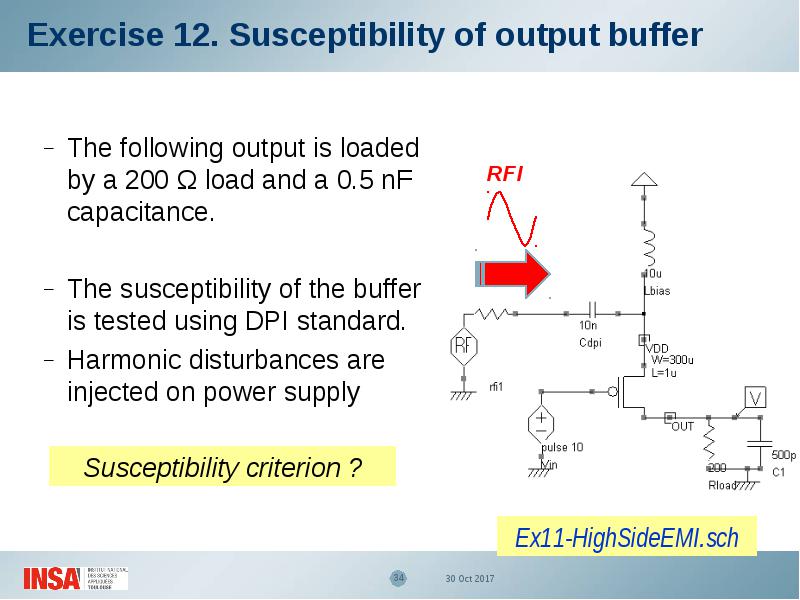

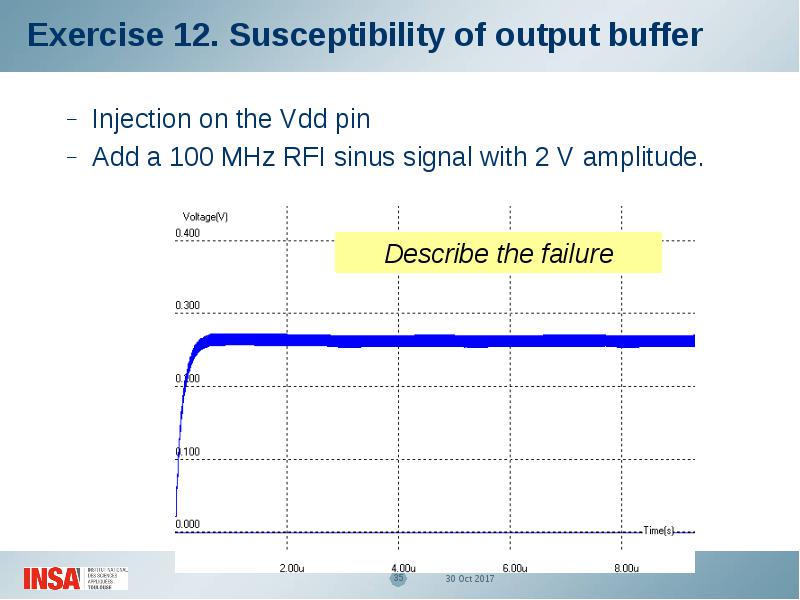

• Ex. 12. Susceptibility of output buffer

• Ex. 13. Susceptibility of a micro-controller

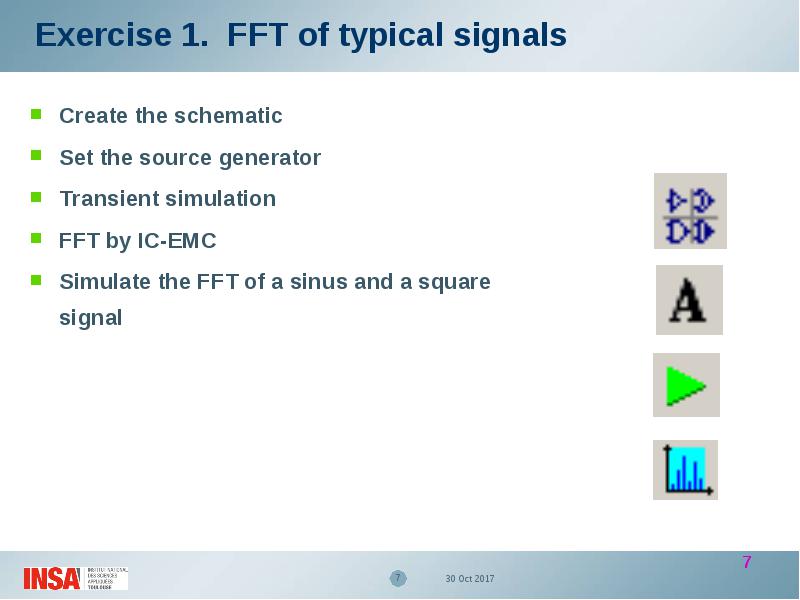

Create the schematic

• Create the schematic

• Set the source generator

• Transient simulation

• FFT by IC-EMC

• Simulate the FFT of a sinus and a square signal

DSPIC Z(f): find an R,L,C model

• DSPIC Z(f): find an R,L,C model

• Tune to measurement file:

z11-C1nF_0603.z

• z11-C1nF_0603.z

• 1nF discrete capacitance for DPI

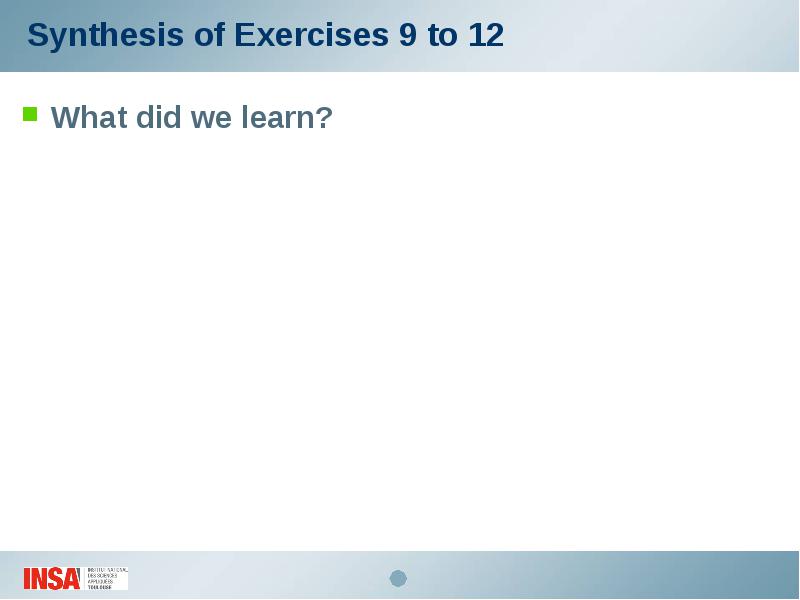

What did we learn ?

• What did we learn ?

What did we learn?

• What did we learn?

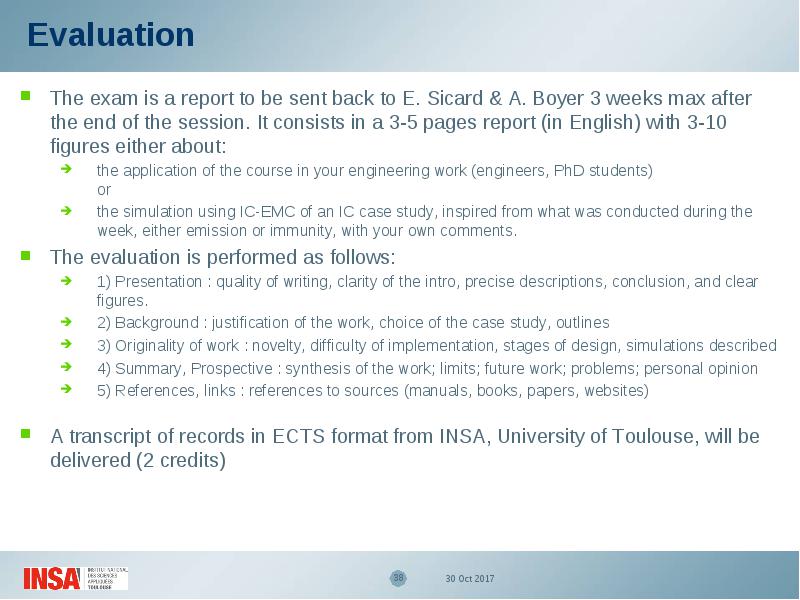

The exam is a report to be sent back to E. Sicard & A. Boyer 3 weeks max after the end of the session. It consists in a 3-5 pages report (in English) with 3-10 figures either about:

• The exam is a report to be sent back to E. Sicard & A. Boyer 3 weeks max after the end of the session. It consists in a 3-5 pages report (in English) with 3-10 figures either about:

• the application of the course in your engineering work (engineers, PhD students) or
• the simulation using IC-EMC of an IC case study, inspired from what was conducted during the week, either emission or immunity, with your own comments.

• The evaluation is performed as follows:

• 1) Presentation : quality of writing, clarity of the intro, precise descriptions, conclusion, and clear figures.
• 2) Background : justification of the work, choice of the case study, outlines
• 3) Originality of work : novelty, difficulty of implementation, stages of design, simulations described
• 4) Summary, Prospective : synthesis of the work; limits; future work; problems; personal opinion
• 5) References, links : references to sources (manuals, books, papers, websites)

• A transcript of records in ECTS format from INSA, University of Toulouse, will be delivered (2 credits)
