Hubble Space Telescope (HST):

  • Hubble Space Telescope (HST):

  • HST NICMOS:

    • 189 x FoV,
    • 38 x better sensitivity at K band, 8 x at H band
  • Spitzer:

    • 8 x Spitzer diameter
    • Diffraction limited at 2 microns vs. 6 microns
    • 8 to 24 x better angular resolution
    • 10 x lower dark current supports R ~ 1000 at high redshift
  • Ground:

    • JWST and GSMT are complementary where capabilities overlap:
    • HST: Keck diameter ratio ~ JWST:GSMT
    • Background ~1,000,000 x larger on ground at 5 microns














Core Test integration complete

  • Core Test integration complete

    • OTE/SC assemblies mated
    • GSFC radiometers received and installed
    • He shroud installed, leak checks completed
    • MLI closeouts complete
    • Instrumentation installation and checkout complete
  • Cool down started on April 17th

  • Competed testing on May 26th

  • Data analysis is complete

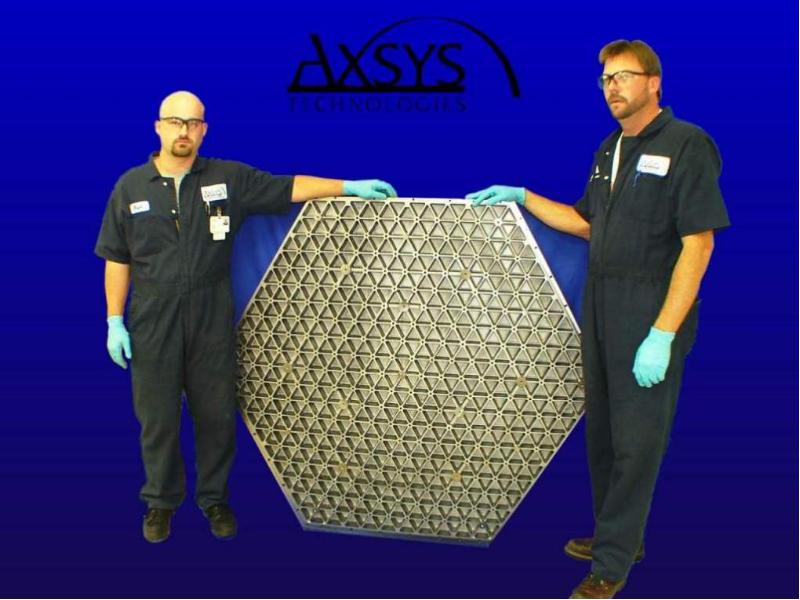

18 Flight PMSAs (6 A, 6 B, and 6 C segments) are at various stages of completion

  • 18 Flight PMSAs (6 A, 6 B, and 6 C segments) are at various stages of completion

    • All segments have completed the surface grinding processes at Tinsley
    • All but 5 segments have completed the rough polish process at Tinsley
    • 16 flight mirrors have been shipped to Ball from Tinsley for configuration changes, assembly integration and testing
    • 4 flight mirrors have been at the XRCF for Cryo Deformation Testing
    • Next Cryo Deformation test with 5 flight and the completely polished ETU mirrors is scheduled to start in early January
    • A1 is the first flight mirror in Cryo Null Polishing, now at Tinsley










Secondary Mirrors

  • Secondary Mirrors

    • EDU SM is in final testing at BATC and is scheduled for delivery as a pathfinder in March 2010
    • Flight SM is in initial rough polishing at Tinsley, pre-cryo testing
  • Tertiary Mirror

    • Flight TM has completed cryo and integration deformation testing at BATC
    • Flight TM has begun Cryo Null Polishing at Tinsley
  • Fine Steering Mirror

    • Flight FSM has successfully completed cryo deformation testing at BATC; the null figure polishing target map is being developed
    • Cryo Null Polishing of the Flight FSM is scheduled to begin next at Tinsley






JWST Dedicated Coating Chamber

  • JWST Dedicated Coating Chamber

  • Chamber and coating qualification on schedule to support flight coating

    • FSM and TMA will be coated in Feb 2010
    • PMSA EDU will be coated in Apr 2010
