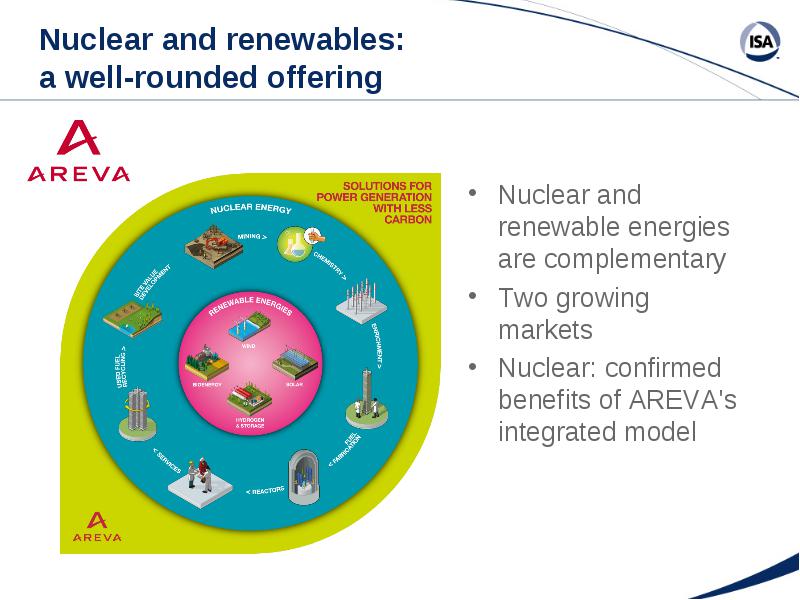

Nuclear and renewable energies are complementary

  • Nuclear and renewable energies are complementary

  • Two growing markets

  • Nuclear: confirmed benefits of AREVA's integrated model

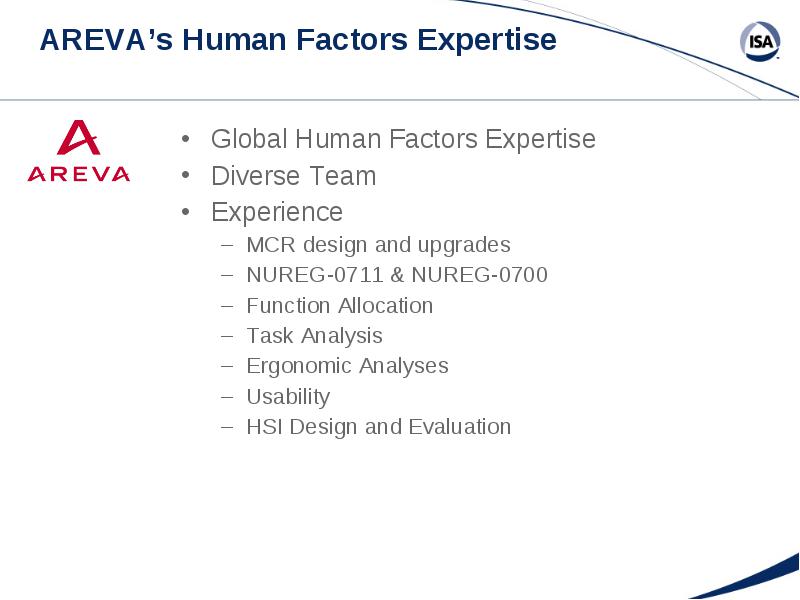

Global Human Factors Expertise

  • Global Human Factors Expertise

  • Diverse Team

  • Experience

    • MCR design and upgrades
    • NUREG-0711 & NUREG-0700
    • Function Allocation
    • Task Analysis
    • Ergonomic Analyses
    • Usability
    • HSI Design and Evaluation

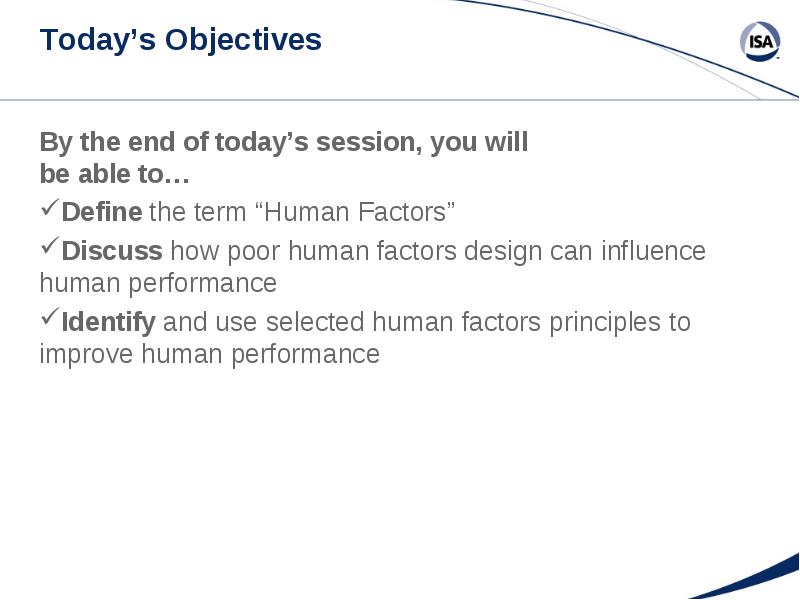

By the end of today’s session, you will be able to…

  • By the end of today’s session, you will be able to…

  • Define the term “Human Factors”

  • Discuss how poor human factors design can influence human performance

  • Identify and use selected human factors principles to improve human performance

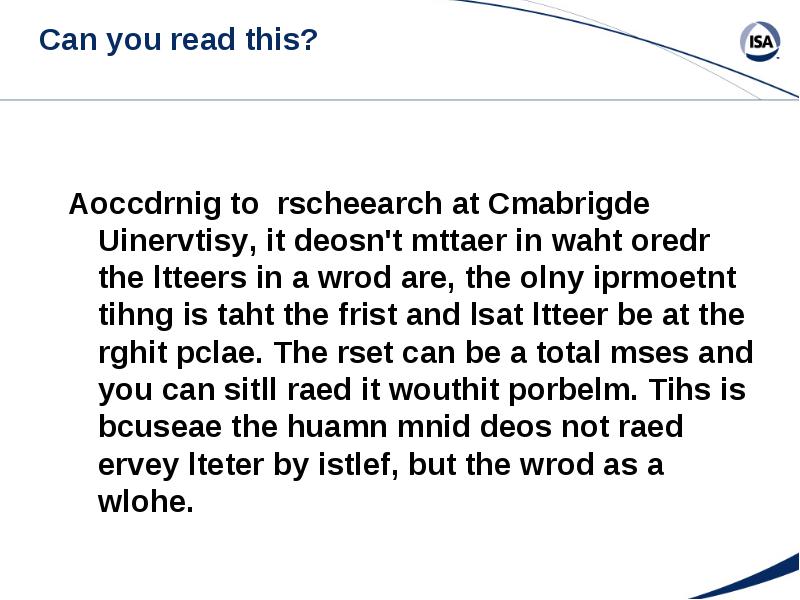

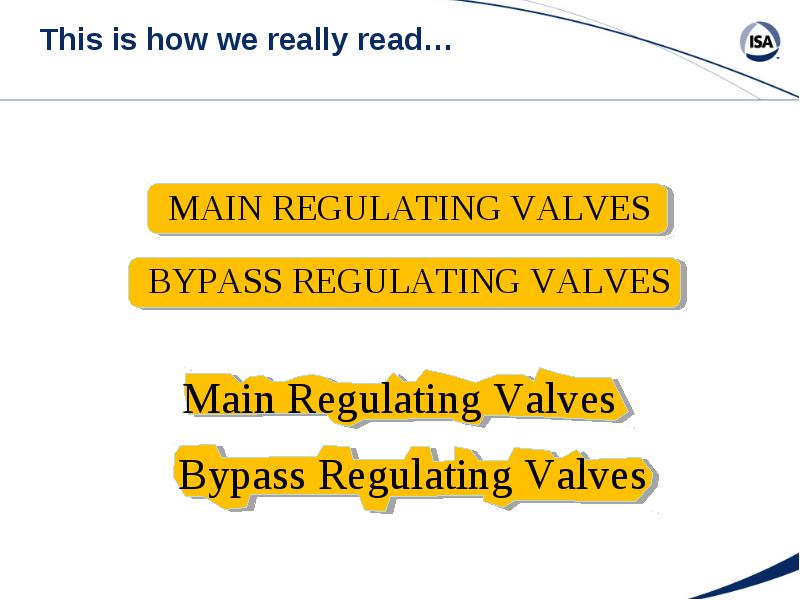

  • Aoccdrnig to rscheearch at Cmabrigde Uinervtisy, it deosn't mttaer in waht oredr the ltteers in a wrod are, the olny iprmoetnt tihng is taht the frist and lsat ltteer be at the rghit pclae. The rset can be a total mses and you can sitll raed it wouthit porbelm. Tihs is bcuseae the huamn mnid deos not raed ervey lteter by istlef, but the wrod as a wlohe.

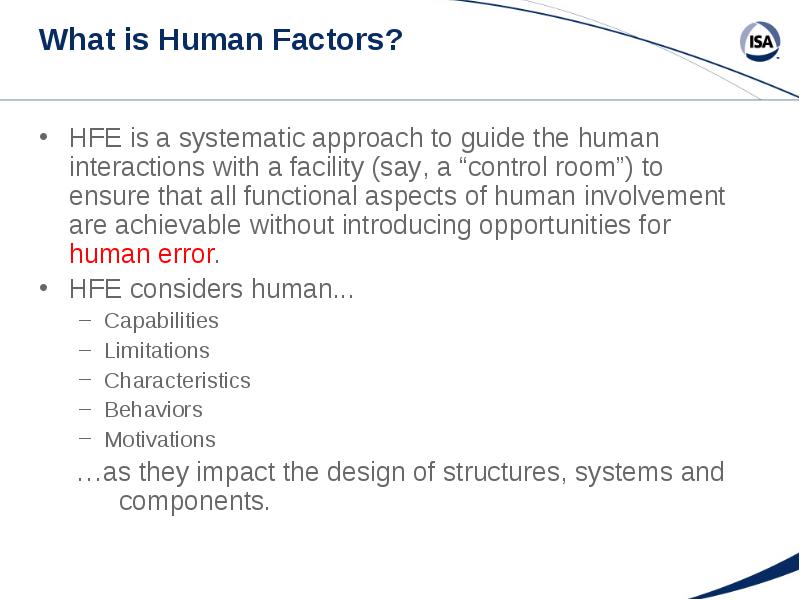

HFE is a systematic approach to guide the human interactions with a facility (say, a “control room”) to ensure that all functional aspects of human involvement are achievable without introducing opportunities for human error.

  • HFE is a systematic approach to guide the human interactions with a facility (say, a “control room”) to ensure that all functional aspects of human involvement are achievable without introducing opportunities for human error.

  • HFE considers human...

    • Capabilities
    • Limitations
    • Characteristics
    • Behaviors
    • Motivations
  • …as they impact the design of structures, systems and components.



























Principle #1: Make relevant parts visible.

  • Principle #1: Make relevant parts visible.

  • Principle #2: Give each action an immediate and obvious effect

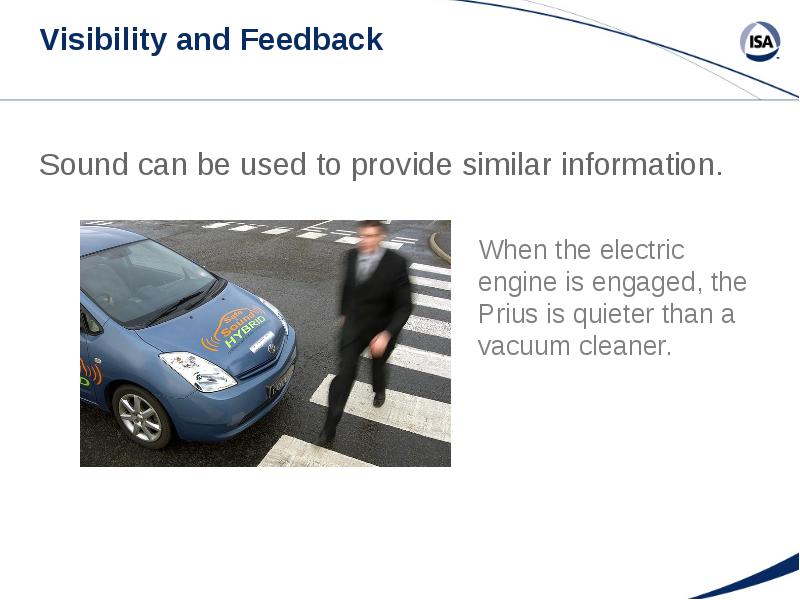

Sound can be used to provide similar information.

  • Sound can be used to provide similar information.

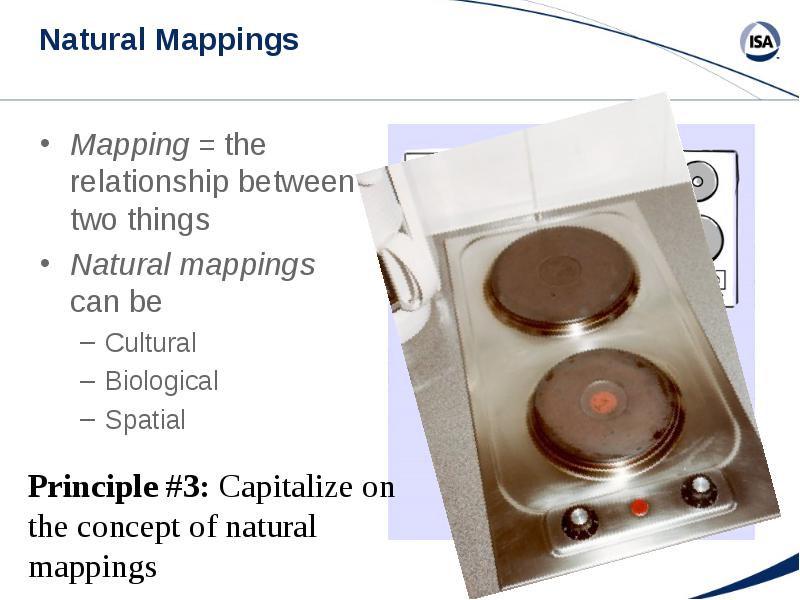

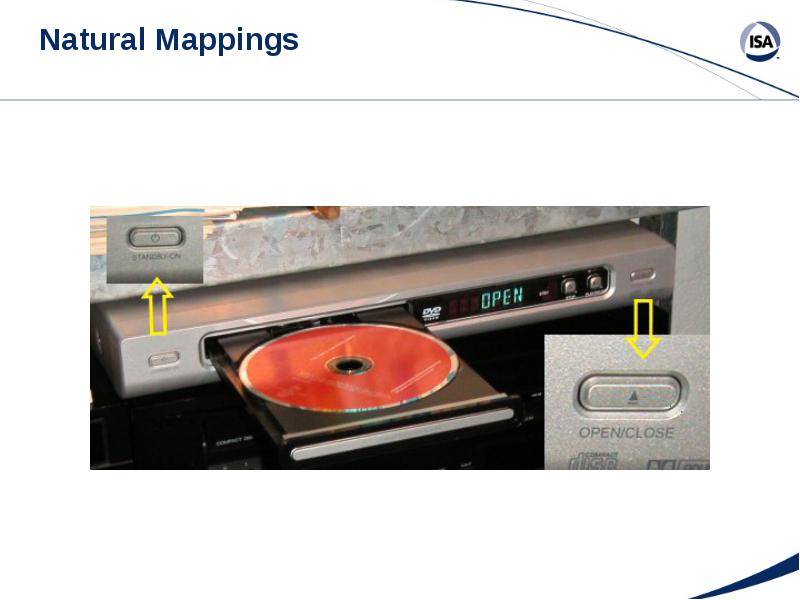

Mapping = the relationship between two things

  • Mapping = the relationship between two things

  • Natural mappings can be

    • Cultural
    • Biological
    • Spatial

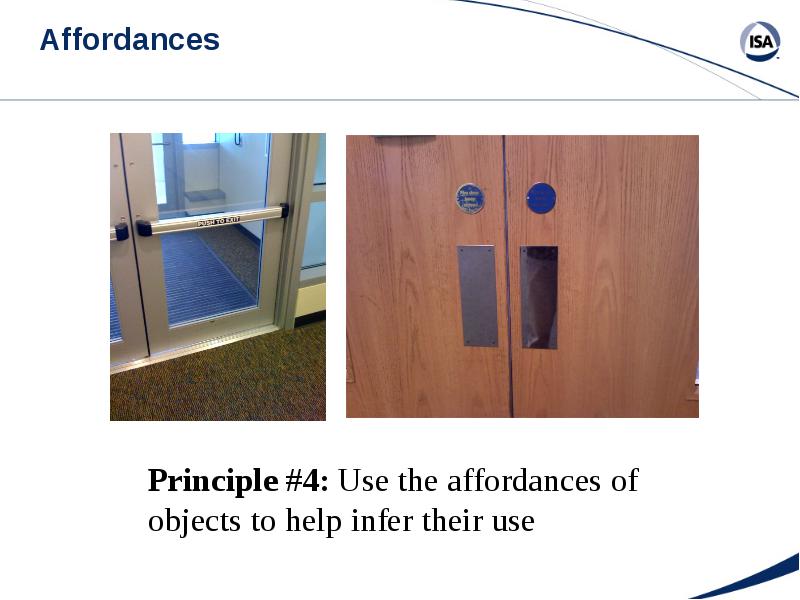

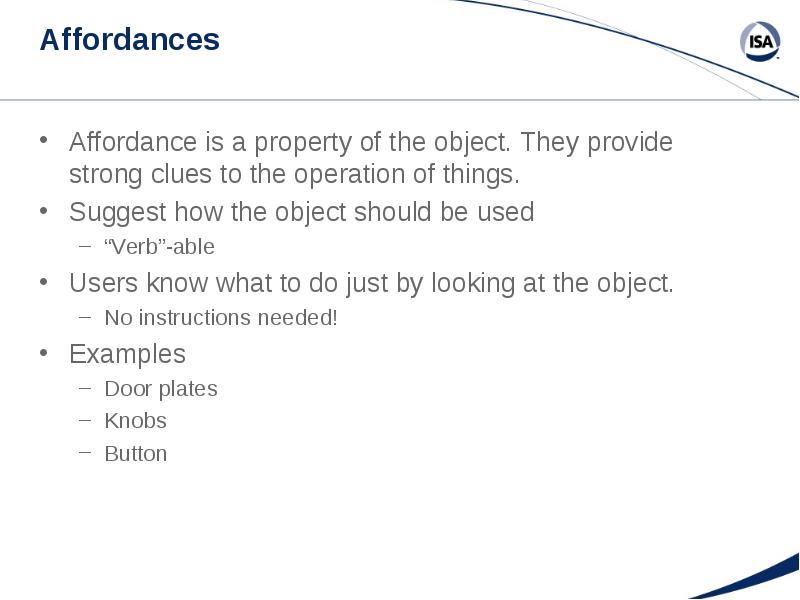

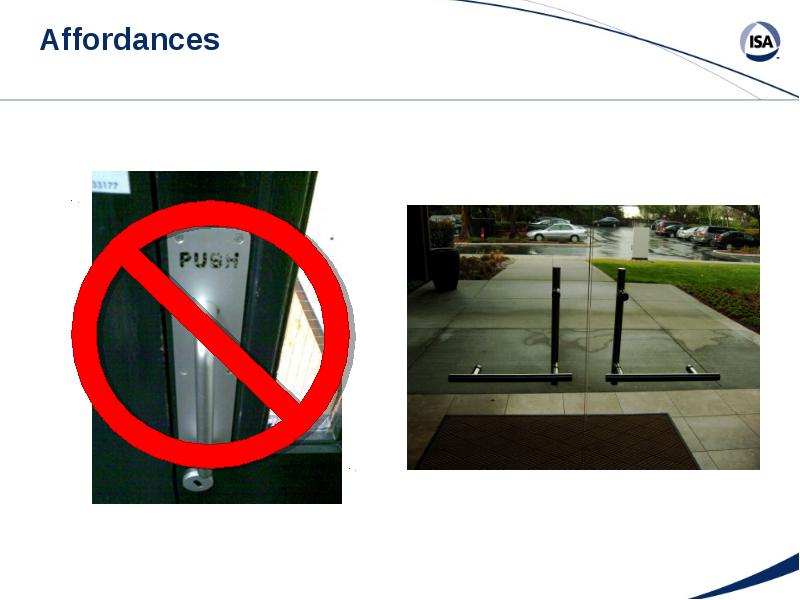

Affordance is a property of the object. They provide strong clues to the operation of things.

  • Affordance is a property of the object. They provide strong clues to the operation of things.

  • Suggest how the object should be used

    • “Verb”-able
  • Users know what to do just by looking at the object.

    • No instructions needed!
  • Examples

    • Door plates
    • Knobs
    • Button

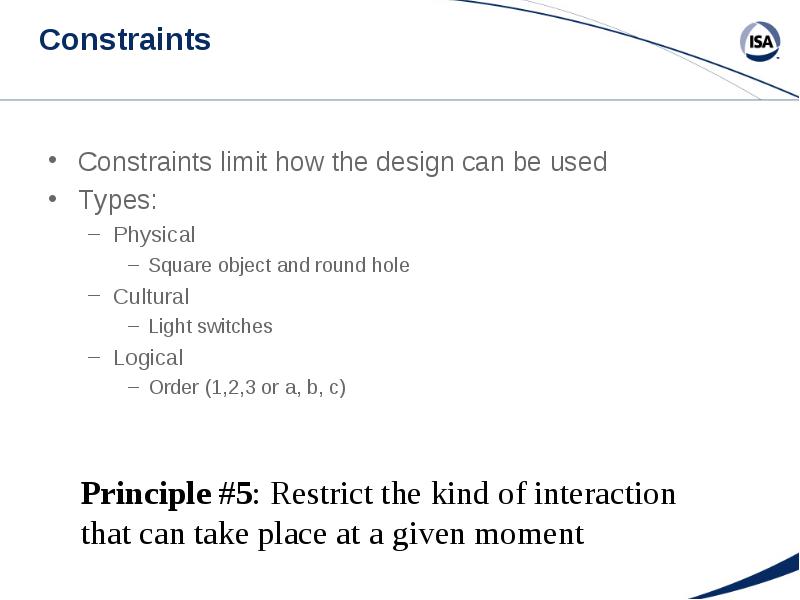

Constraints limit how the design can be used

  • Constraints limit how the design can be used

  • Types:

    • Physical
      • Square object and round hole
    • Cultural
      • Light switches
    • Logical
      • Order (1,2,3 or a, b, c)

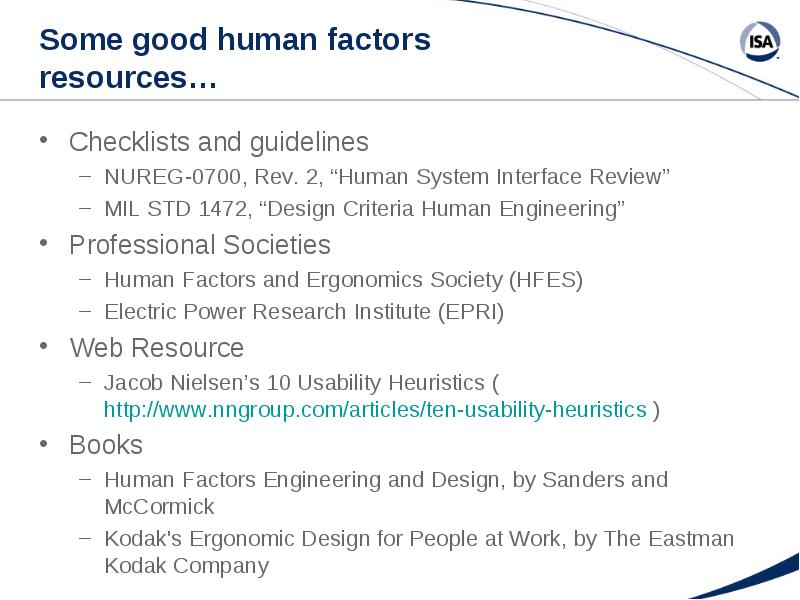

Checklists and guidelines

  • Checklists and guidelines

    • NUREG-0700, Rev. 2, “Human System Interface Review”
    • MIL STD 1472, “Design Criteria Human Engineering”
  • Professional Societies

    • Human Factors and Ergonomics Society (HFES)
    • Electric Power Research Institute (EPRI)
  • Web Resource

    • Jacob Nielsen’s 10 Usability Heuristics (http://www.nngroup.com/articles/ten-usability-heuristics )
  • Books



Paris Stringfellow, Ph.D.

  • Paris Stringfellow, Ph.D.

  • AREVA, Inc.

  • (704)805-2661

  • Paris.Stringfellow@AREVA.com

  • www.AREVA.com
