Omg issue Number

Disposition: Resolved

OMG Issue No: 11877

Title: In Annex D, I would suggest make unit names

Source:

THALES (Mr. Sebastien Demathieu, [e-mail])

Summary:

In Annex D, I would suggest make unit names (e.g. bits, bytes) singular.

Resolution:

Modify Figures D.3 with singular unit names.

Revised Text:

Page 435 old figure



Figure D.3 – MARTE library of measurement units

Page 435 new figure (note that the modification includes Issue 11338)



Figure D.3. – MARTE library of measurement units

Disposition: Resolved

Disposition: Resolved

OMG Issue No: 11885

Title: page 271, Fig.15.7 and in Annex D, page 437, Fig.D.5 (Arrival pattern data type)

Source:

Carleton University (Dr. Dorina C. Petriu, [e-mail])

Summary:

a) Inconsistent definition of dataType ArrivalPattern as follows:

- on page 263, Fig.15.3 and on page 288, Fig.16.3 the definition contains 7 values (the last two are “open” and “close”)

- on page 271, Fig.15.7 and in Annex D, page 437, Fig.D.5, the same definition contains only 6 values ("open" is missing and should be added).

Example of use of different arrival patterns: “open” in Fig.17.17 and “closed” in 17.22.
Resolution:

There was a mistake in Figures 15.7 (GQAM) and Fig. D.5 (Annex D). The OpenPattern was not included in the list of Arrival Patterns. These two figures will be corrected.

Revised Text:

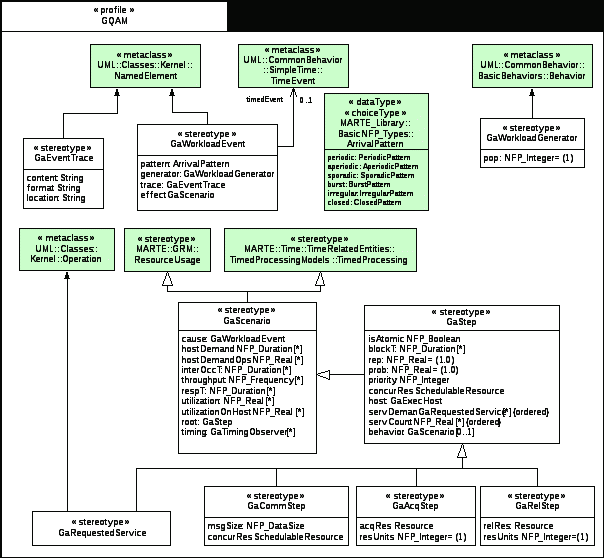

-Old Figure 15.7 (p. 271):

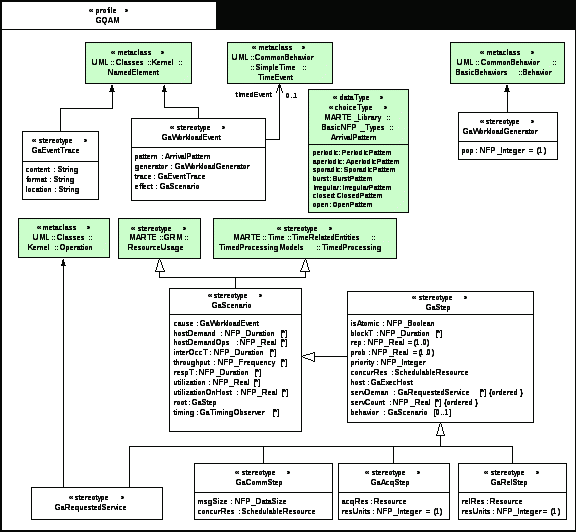

New Figure 15.7 (p. 271):

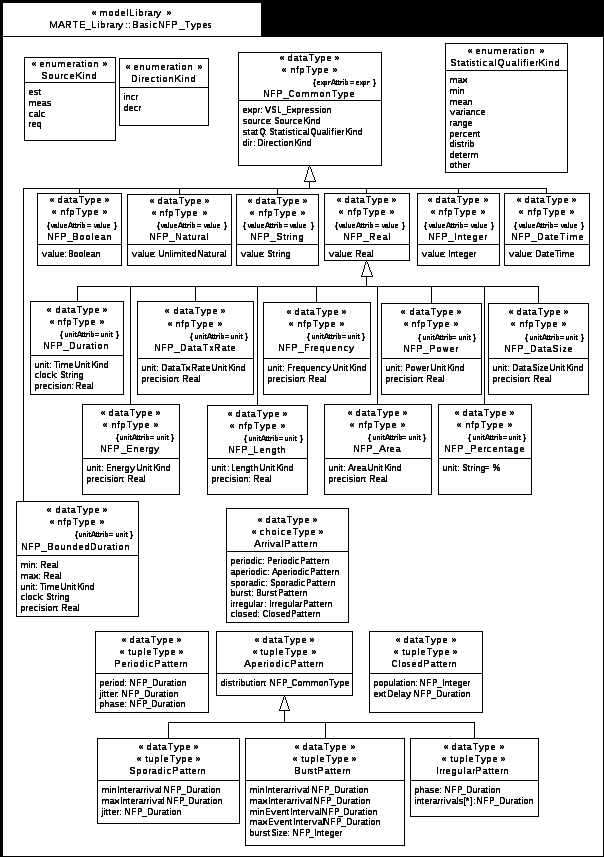

-Old Figure D.5 (p. 437)

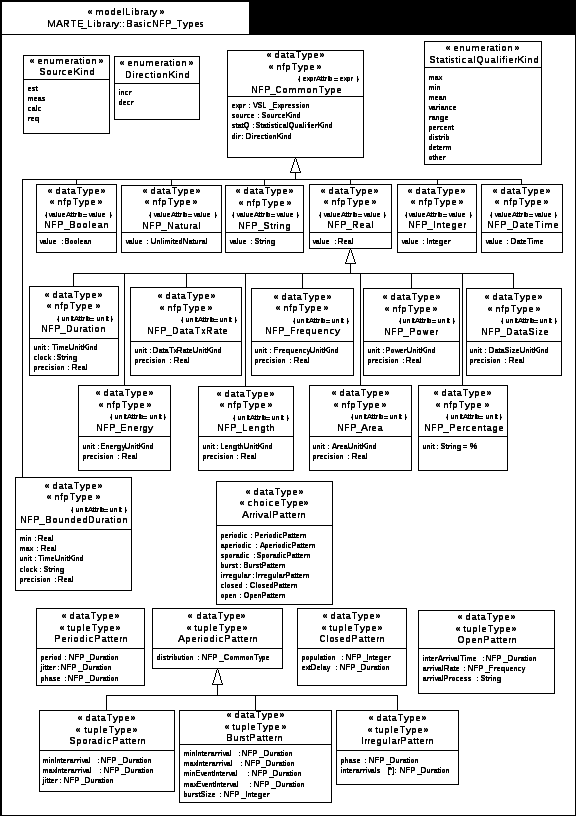

New Figure D.3:



Disposition: Resolved

Disposition: Resolved

OMG Issue No: 11887

Title: attribute “resMult”

Source:

Carleton University (Dr. Dorina C. Petriu, [e-mail])

Summary:

The attribute “resMult” (resource multiplicity) of Resource appears under its old name “maxRI” in the following figures: 17.14, 17.16, 17.17, 17.24

(Also found in Fig 14.3)

Resolution:

Replace the name in the affected Figures.

Revised Text:

maxRI is replaced by resMult in these Figures and in Fig 14.3 (revised separately)

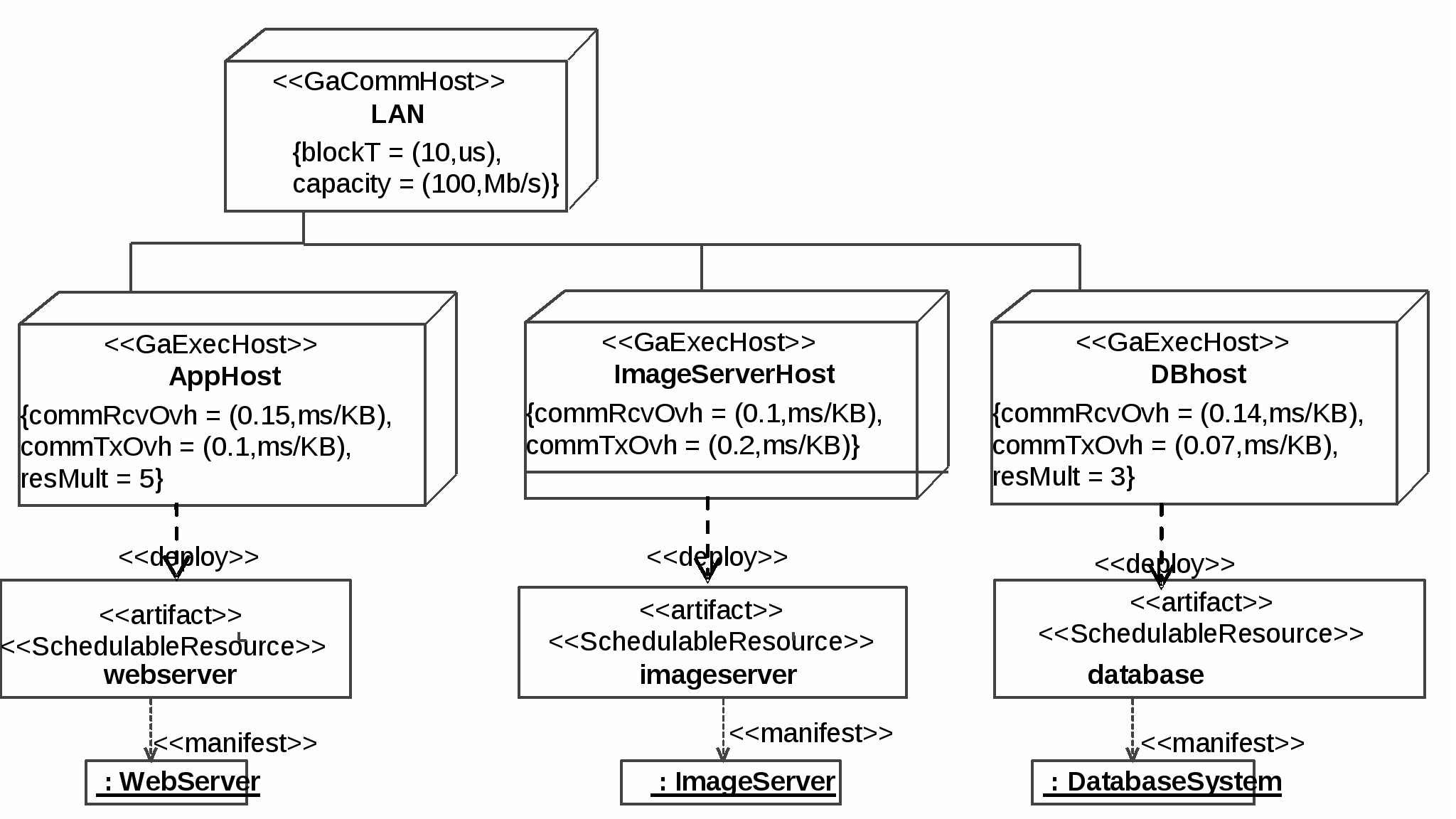

Figure 17.14

Figure 17.16


Figure 17.17

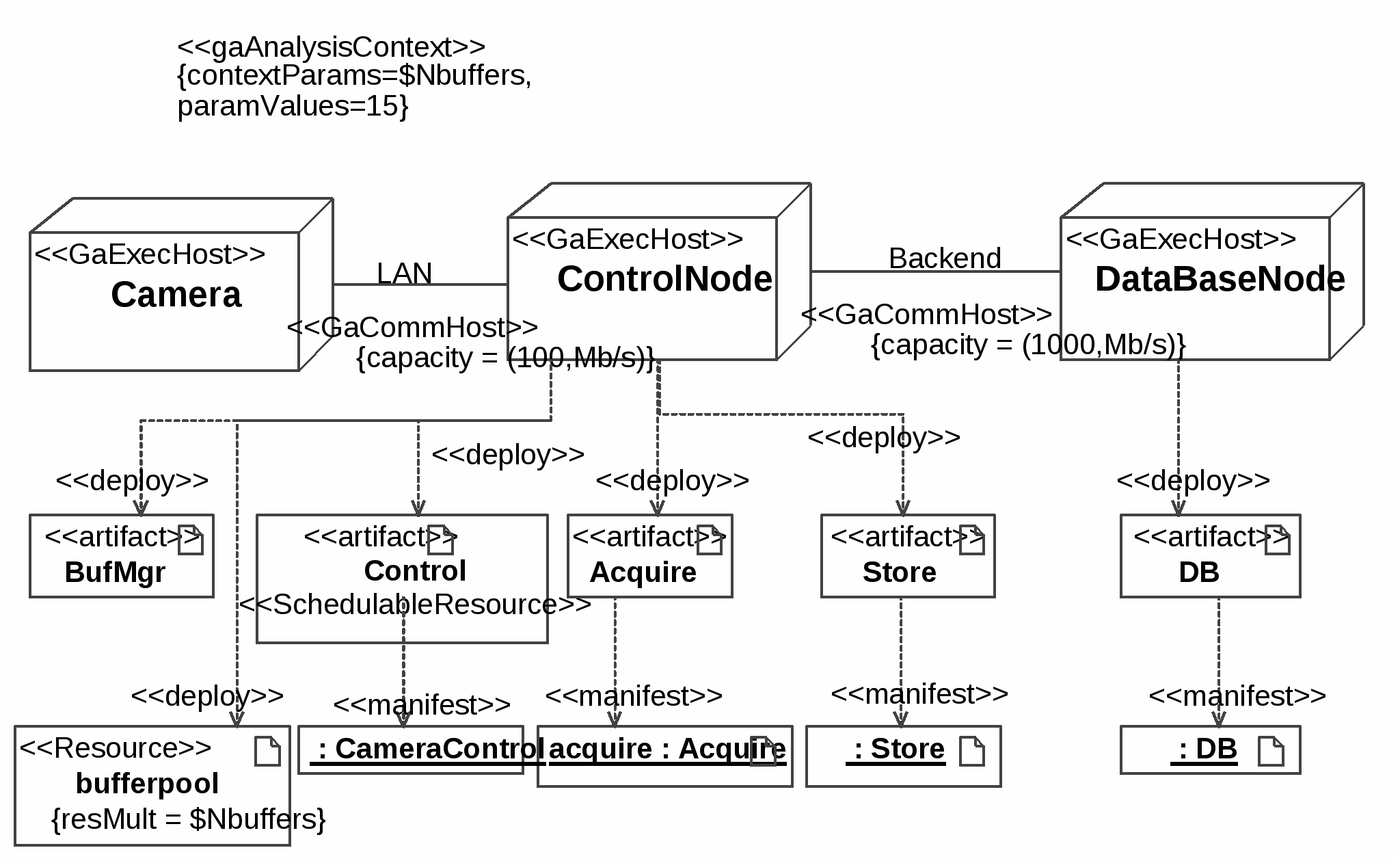

Figure 17.24

Disposition: Resolved

Disposition: Resolved

OMG Issue No: 11888

Title: Missing attribute in figure 17.17

Source:

Carleton University (Dr. Dorina C. Petriu, [e-mail])

Summary:

d) Missing attribute in figure. On Page 333, the second paragraph says:

“The cycleInit Action has a hostDemand. Since it is not shown in a swimlane, its process (SchedulableResource) is given directly on the Step stereotype by the attribute "concur" (which determines its deployment and thus its host processor).”

However, Fig 17.17 to which this text refers does not show any attribute “concur”.

Resolution:

Add the attribute, which is called concurRes not concur.

Revised Text:

(1) The second para of p 333, which describes this, has been removed in issue 11649. However it appears to be needed to explain this point. So

original text:

The cycleInit Action has a hostDemand. Since it is not shown in a swimlane, its process (SchedulableResource) is given directly on the Step stereotype by the attribute "concur" (which determines its deployment and thus its host processor).

New text:

The cycleInit Action has a hostDemand. Since it is not shown in a swimlane, its process (SchedulableResource) is given directly on the Step stereotype by the attribute "concurRes" (which determines its deployment and thus its host processor).

In Fig 17.17, there is a Step stereotype on the trigger for CycleInit. To this, add the attribute:

concurRes=Acquire

Revised Figure 17.17 (including changes made for issue 11649). Pastable and editable figure in word or frame:

{Precise editing instructions for applying resolution, including exact text, models, diagrams, references to be included or deleted. NOTE: IDL should be shown in Courier font}

Disposition: Resolved

Disposition: Resolved

OMG Issue No: 11890

Title: Unfinished Sentence

Source:

Carleton University (Dr. Dorina C. Petriu, [e-mail])

Summary:

p 313 para 6 ends “Within a scenario these are lumped together as”

Resolution:

Remove the partial sentence.

Revised Text:

Remove the sentence

Disposition: Resolved
