Historical perspective

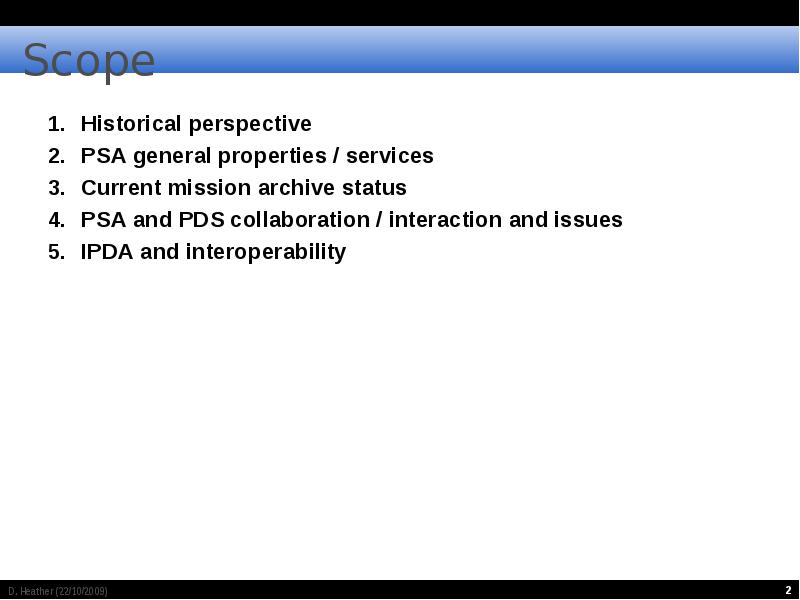

  • Historical perspective

  • PSA general properties / services

  • Current mission archive status

  • PSA and PDS collaboration / interaction and issues

  • IPDA and interoperability

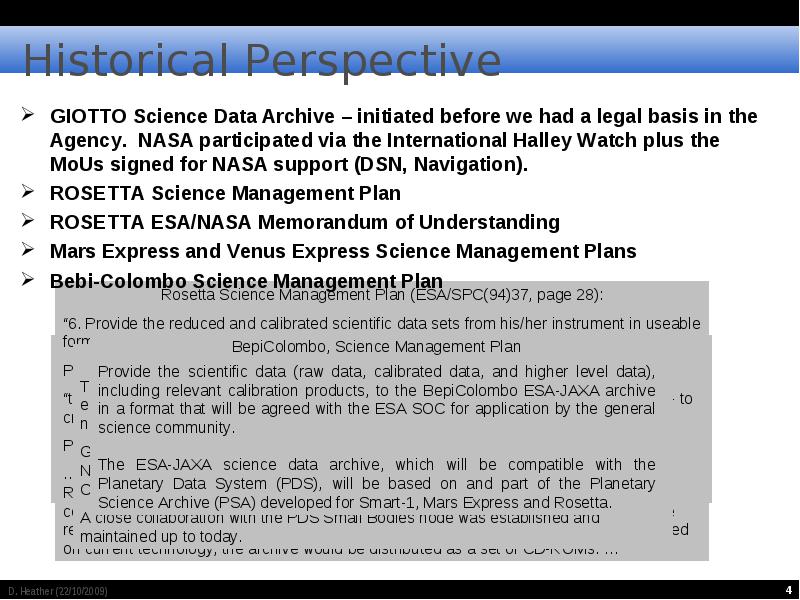

GIOTTO Science Data Archive – initiated before we had a legal basis in the Agency. NASA participated via the International Halley Watch plus the MoUs signed for NASA support (DSN, Navigation).

  • GIOTTO Science Data Archive – initiated before we had a legal basis in the Agency. NASA participated via the International Halley Watch plus the MoUs signed for NASA support (DSN, Navigation).

  • ROSETTA Science Management Plan

  • ROSETTA ESA/NASA Memorandum of Understanding

  • Mars Express and Venus Express Science Management Plans

  • Bebi-Colombo Science Management Plan

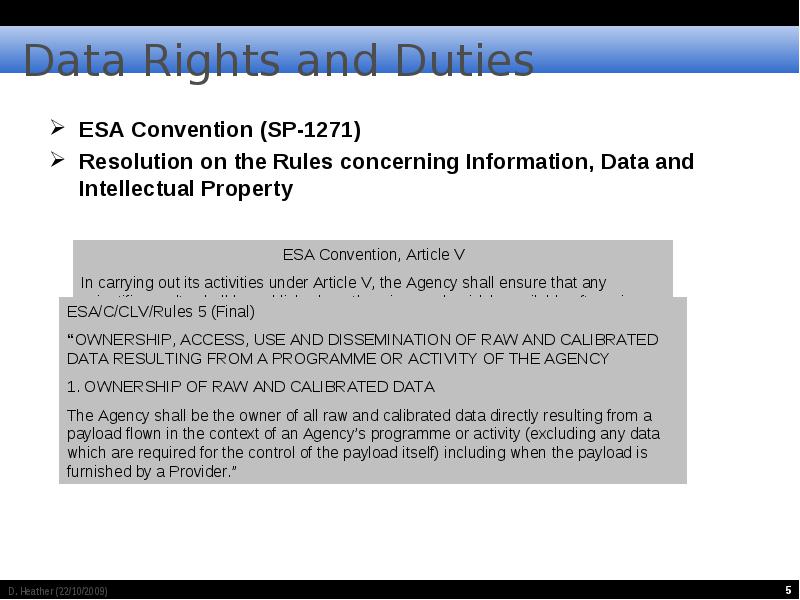

ESA Convention (SP-1271)

  • ESA Convention (SP-1271)

  • Resolution on the Rules concerning Information, Data and Intellectual Property

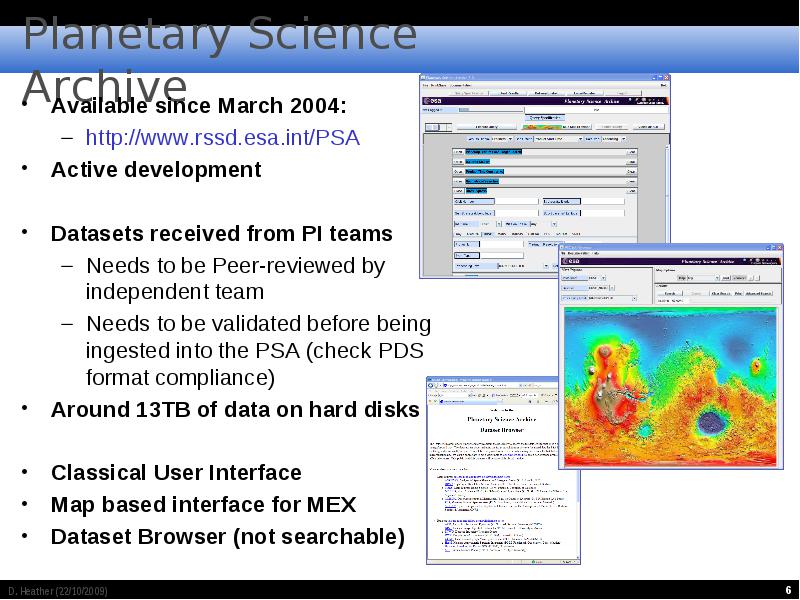

Available since March 2004:

  • Available since March 2004:

    • http://www.rssd.esa.int/PSA
  • Active development

  • Datasets received from PI teams

    • Needs to be Peer-reviewed by independent team
    • Needs to be validated before being ingested into the PSA (check PDS format compliance)
  • Around 13TB of data on hard disks

  • Classical User Interface

  • Map based interface for MEX

  • Dataset Browser (not searchable)

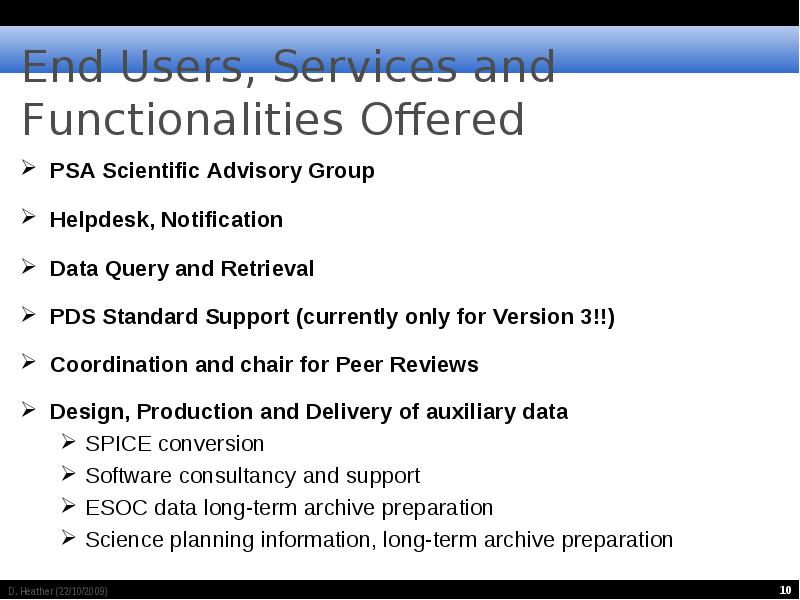

PSA Scientific Advisory Group

  • PSA Scientific Advisory Group

  • Helpdesk, Notification

  • Data Query and Retrieval

  • PDS Standard Support (currently only for Version 3!!)

  • Coordination and chair for Peer Reviews

  • Design, Production and Delivery of auxiliary data

    • SPICE conversion
    • Software consultancy and support
    • ESOC data long-term archive preparation
    • Science planning information, long-term archive preparation

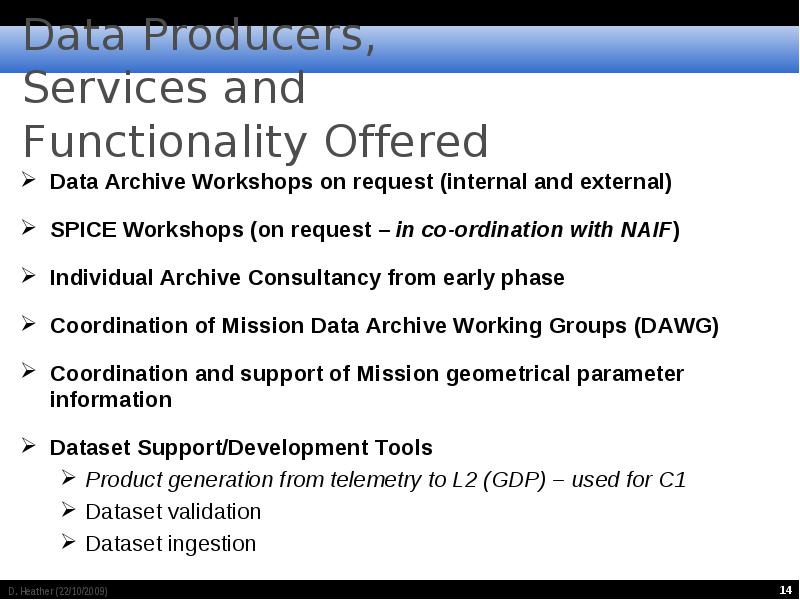

Data Archive Workshops on request (internal and external)

  • Data Archive Workshops on request (internal and external)

  • SPICE Workshops (on request – in co-ordination with NAIF)

  • Individual Archive Consultancy from early phase

  • Coordination of Mission Data Archive Working Groups (DAWG)

  • Coordination and support of Mission geometrical parameter information

  • Dataset Support/Development Tools

    • Product generation from telemetry to L2 (GDP) – used for C1
    • Dataset validation
    • Dataset ingestion

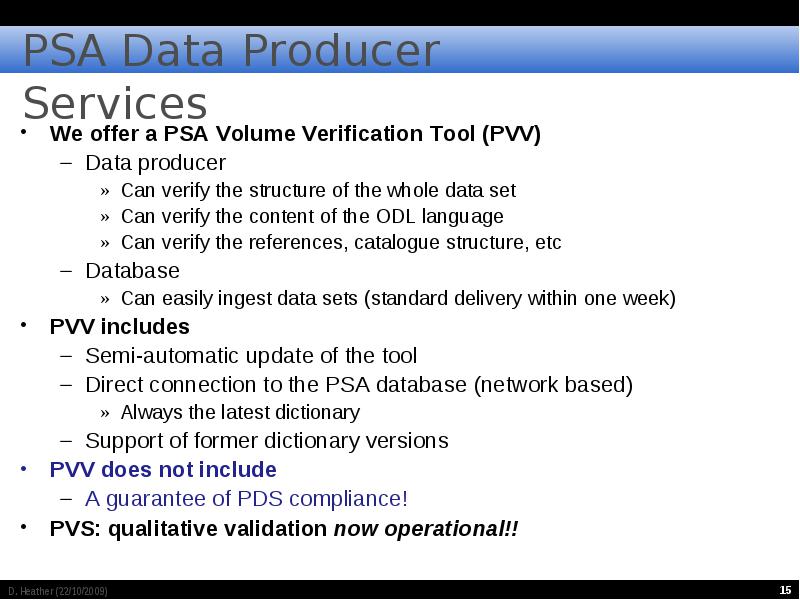

We offer a PSA Volume Verification Tool (PVV)

  • We offer a PSA Volume Verification Tool (PVV)

    • Data producer
      • Can verify the structure of the whole data set
      • Can verify the content of the ODL language
      • Can verify the references, catalogue structure, etc
    • Database
      • Can easily ingest data sets (standard delivery within one week)
  • PVV includes

    • Semi-automatic update of the tool
    • Direct connection to the PSA database (network based)
      • Always the latest dictionary
    • Support of former dictionary versions
  • PVV does not include

    • A guarantee of PDS compliance!
  • PVS: qualitative validation now operational!!

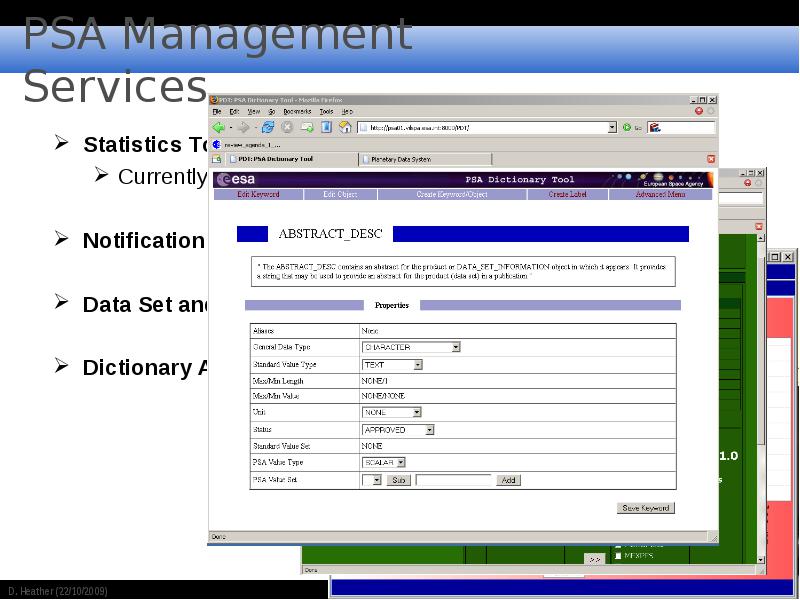

Statistics Tool (PST)

  • Statistics Tool (PST)

    • Currently does NOT account for FTData set Browser access.
  • Notification Management

  • Data Set and User Administration (PAT)

  • Dictionary Administration (PDT)

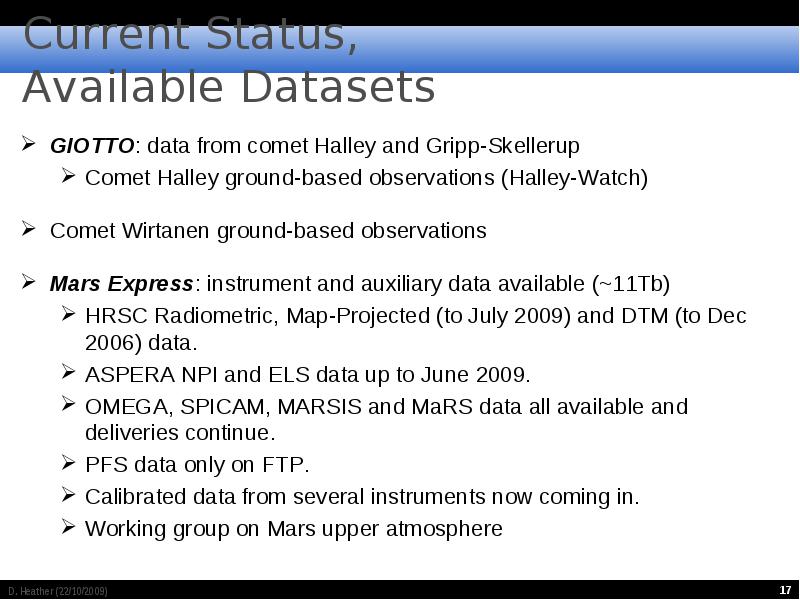

GIOTTO: data from comet Halley and Gripp-Skellerup

  • GIOTTO: data from comet Halley and Gripp-Skellerup

    • Comet Halley ground-based observations (Halley-Watch)
  • Comet Wirtanen ground-based observations

  • Mars Express: instrument and auxiliary data available (~11Tb)

    • HRSC Radiometric, Map-Projected (to July 2009) and DTM (to Dec 2006) data.
    • ASPERA NPI and ELS data up to June 2009.
    • OMEGA, SPICAM, MARSIS and MaRS data all available and deliveries continue.
    • PFS data only on FTP.
    • Calibrated data from several instruments now coming in.
    • Working group on Mars upper atmosphere

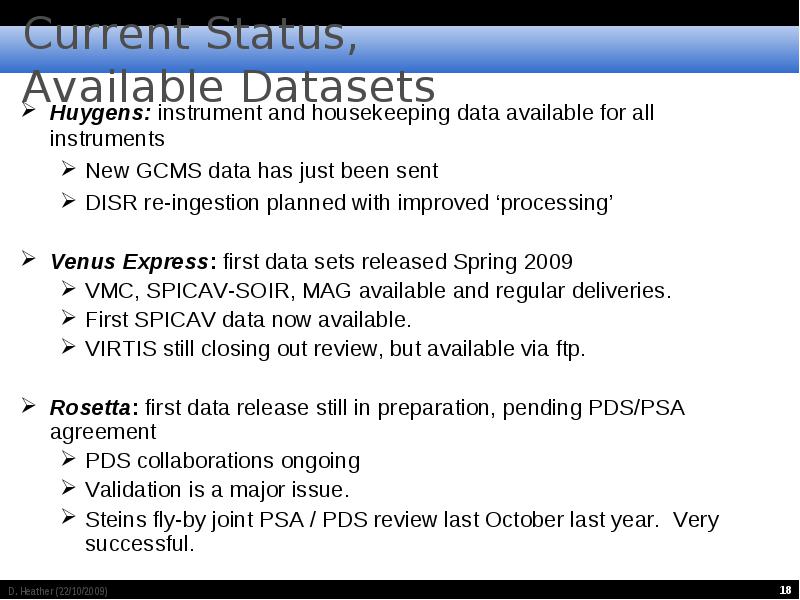

Huygens: instrument and housekeeping data available for all instruments

  • Huygens: instrument and housekeeping data available for all instruments

    • New GCMS data has just been sent
    • DISR re-ingestion planned with improved ‘processing’
  • Venus Express: first data sets released Spring 2009

    • VMC, SPICAV-SOIR, MAG available and regular deliveries.
    • First SPICAV data now available.
    • VIRTIS still closing out review, but available via ftp.
  • Rosetta: first data release still in preparation, pending PDS/PSA agreement

    • PDS collaborations ongoing
    • Validation is a major issue.
    • Steins fly-by joint PSA / PDS review last October last year. Very successful.

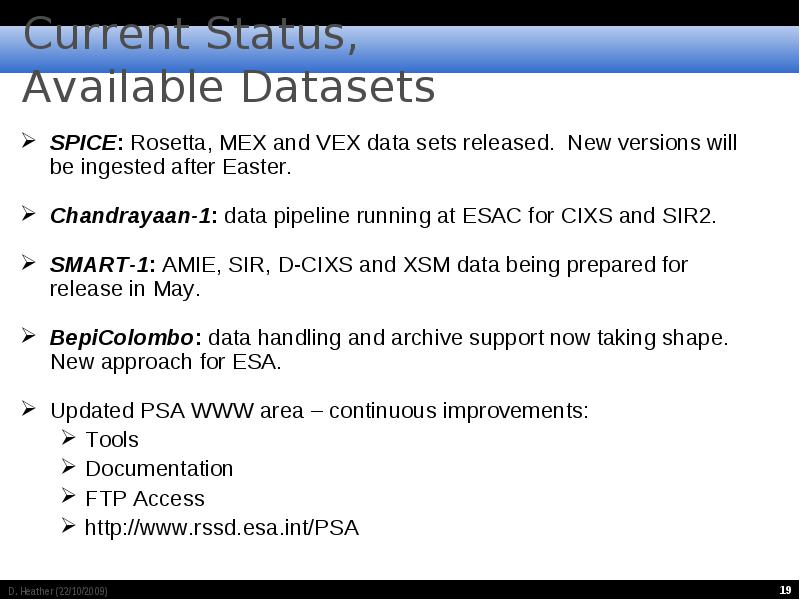

SPICE: Rosetta, MEX and VEX data sets released. New versions will be ingested after Easter.

  • SPICE: Rosetta, MEX and VEX data sets released. New versions will be ingested after Easter.

  • Chandrayaan-1: data pipeline running at ESAC for CIXS and SIR2.

  • SMART-1: AMIE, SIR, D-CIXS and XSM data being prepared for release in May.

  • BepiColombo: data handling and archive support now taking shape. New approach for ESA.

  • Updated PSA WWW area – continuous improvements:

    • Tools
    • Documentation
    • FTP Access
    • http://www.rssd.esa.int/PSA

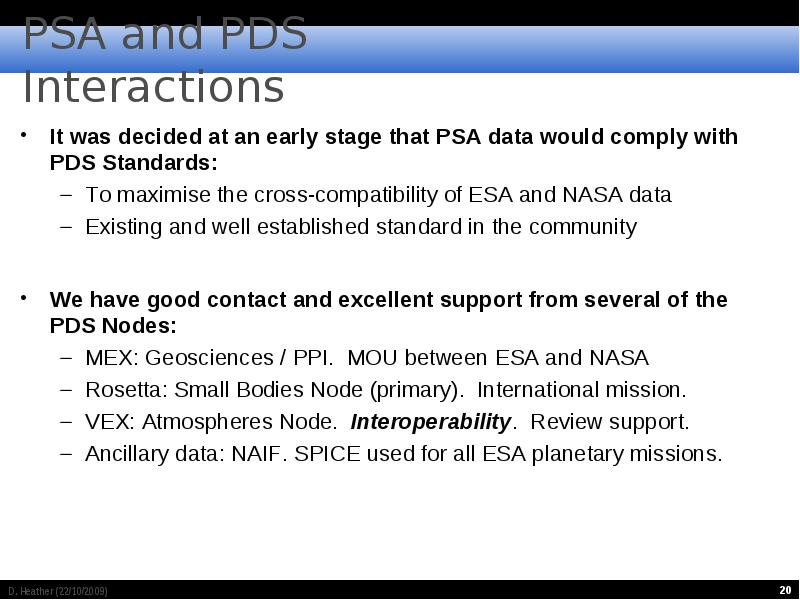

It was decided at an early stage that PSA data would comply with PDS Standards:

  • It was decided at an early stage that PSA data would comply with PDS Standards:

    • To maximise the cross-compatibility of ESA and NASA data
    • Existing and well established standard in the community

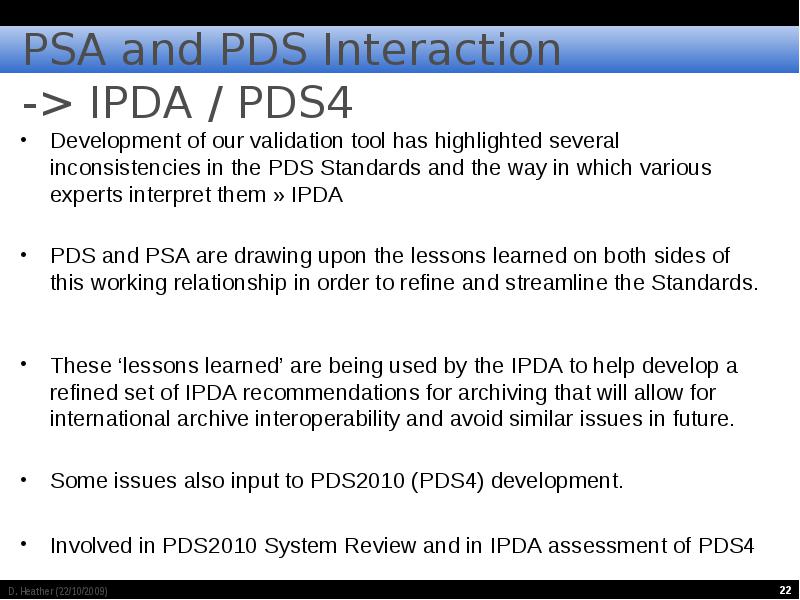

Development of our validation tool has highlighted several inconsistencies in the PDS Standards and the way in which various experts interpret them » IPDA

  • Development of our validation tool has highlighted several inconsistencies in the PDS Standards and the way in which various experts interpret them » IPDA

  • PDS and PSA are drawing upon the lessons learned on both sides of this working relationship in order to refine and streamline the Standards.

  • These ‘lessons learned’ are being used by the IPDA to help develop a refined set of IPDA recommendations for archiving that will allow for international archive interoperability and avoid similar issues in future.

  • Some issues also input to PDS2010 (PDS4) development.

  • Involved in PDS2010 System Review and in IPDA assessment of PDS4

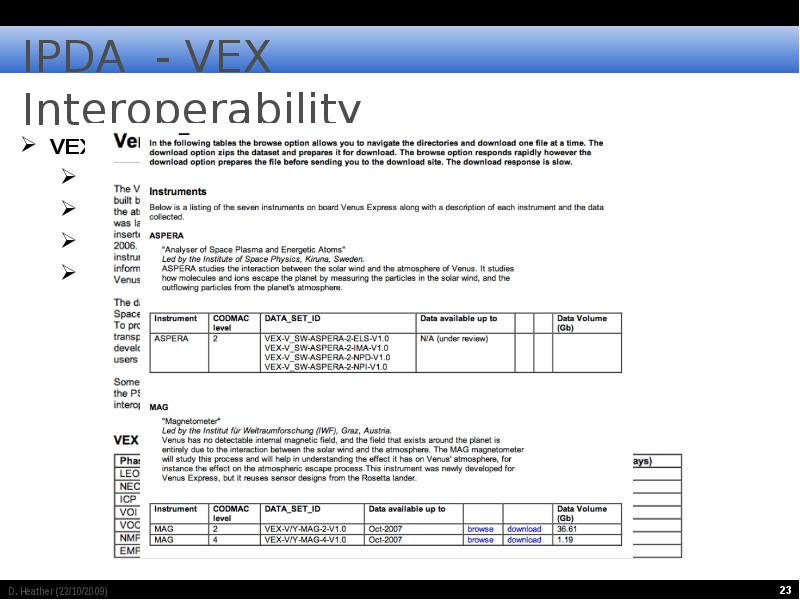

VEX - First interoperability studies between PDS and PSA

  • VEX - First interoperability studies between PDS and PSA

    • Access to data remotely
    • Full search functionality
    • Transparent access to data on various servers
    • Planned for PDS data access on VEX

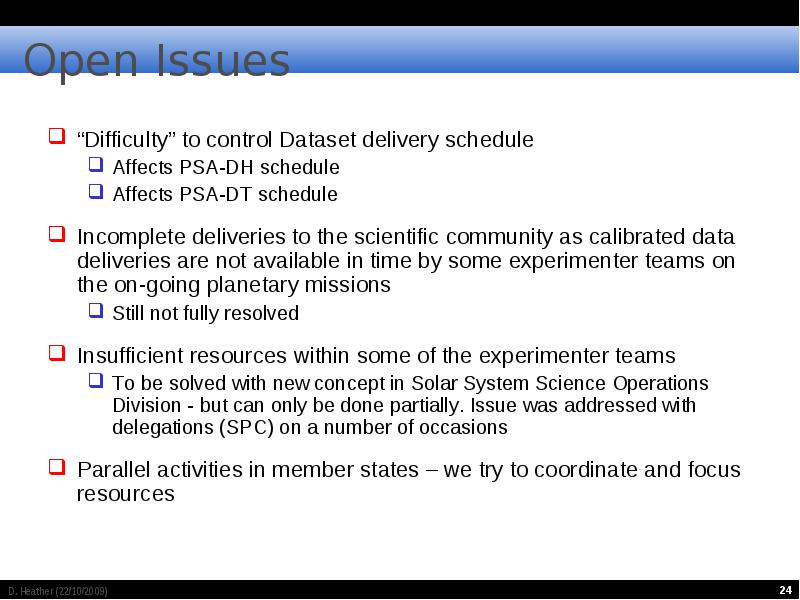

“Difficulty” to control Dataset delivery schedule

  • “Difficulty” to control Dataset delivery schedule

    • Affects PSA-DH schedule
    • Affects PSA-DT schedule
  • Incomplete deliveries to the scientific community as calibrated data deliveries are not available in time by some experimenter teams on the on-going planetary missions

  • Insufficient resources within some of the experimenter teams

    • To be solved with new concept in Solar System Science Operations Division - but can only be done partially. Issue was addressed with delegations (SPC) on a number of occasions
  • Parallel activities in member states – we try to coordinate and focus resources

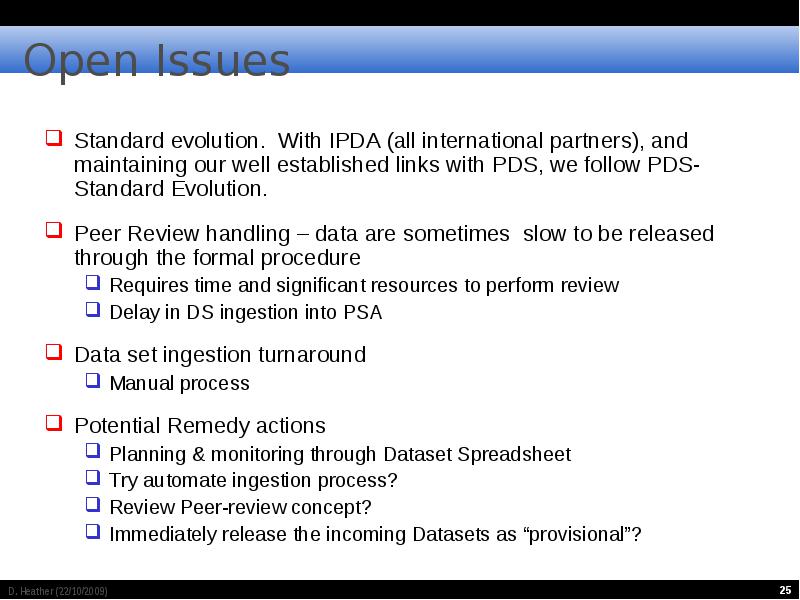

Standard evolution. With IPDA (all international partners), and maintaining our well established links with PDS, we follow PDS-Standard Evolution.

  • Standard evolution. With IPDA (all international partners), and maintaining our well established links with PDS, we follow PDS-Standard Evolution.

  • Peer Review handling – data are sometimes slow to be released through the formal procedure

    • Requires time and significant resources to perform review
    • Delay in DS ingestion into PSA
  • Data set ingestion turnaround

    • Manual process
  • Potential Remedy actions

    • Planning & monitoring through Dataset Spreadsheet
    • Try automate ingestion process?
    • Review Peer-review concept?
    • Immediately release the incoming Datasets as “provisional”?
