3 proiectarea unei forme (formular) Formele

'daca data sistemului este returnata cu PM adaugam 12 altfel o lasam asa

ora = Now.Hour + 12

Else

ora = Now.Hour

End If
If Me.ClientSize.Width > Me.ClientSize.Height Then 'setam unghiul care va determina ce tip de brat este

R = (Me.ClientSize.Height / 2) - 35

Else

R = (Me.ClientSize.Width / 2) - 35

End If

unghi = ora * ora1 - (3.2 * ora1) 'variabila unghi retine unghiul de miscare si se calculeaza astfel:

' unghi = ora * ora1 - (3.2 * ora1)

' unghi = ora * ora1 - (2.8 * ora1)

' unghi = ora * ora1 - (3 * ora1)

' punctul de incepere al cercului este pozitia orei 3

X = Cos(unghi) * (R - 20) 'valoarea lui X pentru punctul din stanga

Y = (Sin(unghi) * (R - 20)) * AspectRatio ' valoarea lui Y pentru punctul din stanga

fp(0) = New Point(XC, YC)

fp(1) = New Point(XC + X, YC + Y)

unghi = ora * ora1 - (2.8 * ora1)

X = Cos(unghi) * (R - 20)

Y = (Sin(unghi) * (R - 20)) * AspectRatio

fp(3) = New Point(XC + X, YC + Y)

unghi = ora * ora1 - (3 * ora1)

X = Cos(unghi) * R

Y = (Sin(unghi) * R) * AspectRatio

fp(2) = New Point(XC + X, YC + Y)

fp(4) = fp(0)

g.FillPolygon(MyBrush, fp)

g.DrawLine(Pens.Black, fp(0), fp(1))

g.DrawLine(Pens.Black, fp(1), fp(2))

g.DrawLine(Pens.Black, fp(2), fp(3))

g.DrawLine(Pens.Black, fp(3), fp(4))

'desenarea minutarului

unghi = MIN * SS - (16 * SS)

X = Cos(unghi) * (R - 40)

Y = (Sin(unghi) * (R - 40)) * AspectRatio

fp(0) = New Point(XC, YC)

fp(1) = New Point(XC + X, YC + Y)

unghi = MIN * SS - (14 * SS)

X = Cos(unghi) * (R - 40)

Y = (Sin(unghi) * (R - 40)) * AspectRatio

fp(3) = New Point(XC + X, YC + Y)

unghi = MIN * SS - (15 * SS)

X = Cos(unghi) * (R - 30)

Y = (Sin(unghi) * (R - 30)) * AspectRatio

fp(2) = New Point(XC + X, YC + Y)

fp(4) = fp(0)

g.FillPolygon(MyBrush, fp)

g.DrawLine(Pens.Black, fp(0), fp(1))

g.DrawLine(Pens.Black, fp(1), fp(2))

g.DrawLine(Pens.Black, fp(2), fp(3))

g.DrawLine(Pens.Black, fp(3), fp(4))

'secundarul

unghi = SEC * SS - (15 * SS)

X = Cos(unghi) * R

Y = (Sin(unghi) * R) * AspectRatio

fp(0) = New Point(XC, YC)

fp(1) = New Point(XC + X, YC + Y)

g.DrawLine(Pens.Black, fp(0), fp(1))

Array.Clear(fp, 0, fp.GetUpperBound(0))

fp = Nothing

MyBrush.Dispose()

MyBrush = Nothing
End Sub
Private Sub Draw_Clock_Markers()

Dim index As Integer

If Me.ClientSize.Width > Me.ClientSize.Height Then

R = (Me.ClientSize.Height / 2) - 25

Else

R = (Me.ClientSize.Width / 2) - 25

End If

index = 0

For unghi = 0 To 2 * PI Step (2 * PI) / 60

X = Cos(unghi) * R

Y = (Sin(unghi) * R) * AspectRatio

If index / 5 = Int(index / 5) Then

g.FillEllipse(Brushes.Firebrick, XC + X - 5, YC + Y - 5, 10, 10)

g.DrawEllipse(Pens.Black, XC + X - 5, YC + Y - 5, 10, 10)

Else

g.FillEllipse(Brushes.Firebrick, XC + X - 2, YC + Y - 2, 4, 4)

g.DrawEllipse(Pens.Black, XC + X - 2, YC + Y - 2, 4, 4)

End If

index += 1

Next

g.FillEllipse(Brushes.Black, XC - 5, YC - 5, 10, 10)

index = Nothing

End Sub
Private Sub Draw_Clock_Face()

Dim gp As New Drawing2D.GraphicsPath

Dim fp(1) As Point

Dim index As Integer

If Me.ClientSize.Width > Me.ClientSize.Height Then

R = (Me.ClientSize.Height / 2) - 15

Else

R = (Me.ClientSize.Width / 2) - 15

End If

index = 1

For unghi = 0 To 2 * PI Step 0.1

X = Cos(unghi) * R

Y = (Sin(unghi) * R) * AspectRatio

If X <> 0 And Y <> 0 Then

If index - 1 > fp.GetUpperBound(0) Then

ReDim Preserve fp(index)

End If

fp(index - 1) = New System.Drawing.Point(XC + X, YC + Y)

index += 1

End If

Next

gp.AddCurve(fp)

gp.CloseFigure()

g.FillPath(Brushes.GhostWhite, gp)

g.DrawPath(Pens.Black, gp)

Array.Clear(fp, 0, fp.GetUpperBound(0))

fp = Nothing

gp.Dispose()

gp = Nothing

index = Nothing

End Sub
Private Sub Form1_Closing(ByVal sender As Object, ByVal e As System.ComponentModel.CancelEventArgs) Handles MyBase.Closing

bm.Dispose()

g.Dispose()

bm = Nothing

g = Nothing

PI = Nothing

XC = Nothing

YC = Nothing

X = Nothing

Y = Nothing

R = Nothing

unghi = Nothing

Secundac = Nothing

AspectRatio = Nothing

End Sub
Private Sub Timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Timer1.Tick

If Secundac <> Now.Second Then

Secundac = Now.Second

Draw_Graphics()

Me.BackgroundImage = bm

Me.Refresh()

End If

End Sub
Private Sub Form1_Activated(ByVal sender As Object, ByVal e As System.EventArgs) Handles MyBase.Activated

If Timer1.Enabled = False Then Timer1.Enabled = True

End Sub

End Class

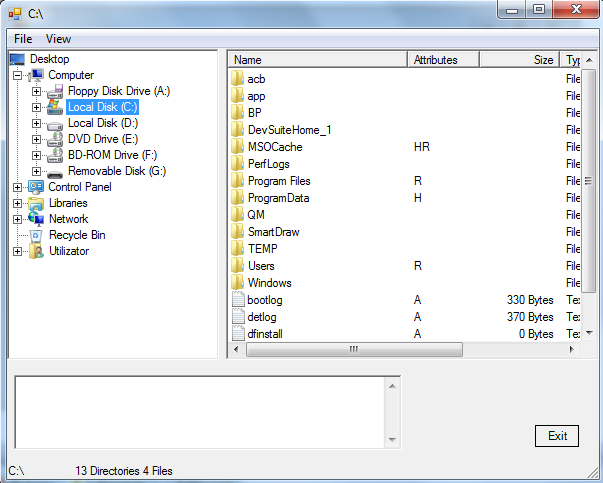

17. Să se proiecteze şi să se realizeze efectiv o interfaţă gen “Windows Explorer “ pentru vizualizarea structurii de foldere şi fişiere şi unităţile de disc disponibile. Un dublu click pe un fişier îl va deschide cu aplicaţia asociată (va lansa în execuţie un fişier executabil sau va deschide pentru lucru un fişier sub Word, Excel etc).
Sugestie de rezolvare:

Codul sursa al programului este urmatorul:

Imports ExpTreeLib

Imports ExpTreeLib.CShItem

Imports ExpTreeLib.SystemImageListManager

Imports System.IO

Imports System.Text

Imports System.Text.RegularExpressions

Imports System.Threading

#Const Ver = 2005
Public Class frmDragDrop

Inherits System.Windows.Forms.Form

Dim testTime As New DateTime(1, 1, 1, 0, 0, 0)

Private LastSelectedCSI As CShItem

Friend WithEvents txtDropOn As System.Windows.Forms.TextBox

Friend WithEvents mnuChangeRoot As System.Windows.Forms.MenuItem

Friend WithEvents mnuRefreshTree As System.Windows.Forms.MenuItem

Friend WithEvents mnuSetToDesktop As System.Windows.Forms.MenuItem

Friend WithEvents mnuExit As System.Windows.Forms.MenuItem

Friend WithEvents MenuItem1 As System.Windows.Forms.MenuItem

Friend WithEvents mnuViewLargeIcons As System.Windows.Forms.MenuItem

Friend WithEvents mnuViewSmallIcons As System.Windows.Forms.MenuItem

Friend WithEvents mnuViewList As System.Windows.Forms.MenuItem

Friend WithEvents mnuViewDetails As System.Windows.Forms.MenuItem

Friend WithEvents MenuItem2 As System.Windows.Forms.MenuItem

Friend WithEvents MainMenu1 As System.Windows.Forms.MainMenu

Private Shared Event1 As New ManualResetEvent(True)
#Region " Windows Form Designer generated code "
Public Sub New()

MyBase.New()

InitializeComponent()

SystemImageListManager.SetListViewImageList(lv1, False, False)

SystemImageListManager.SetListViewImageList(lv1, True, False)

#If Ver = 2005 Then

Control.CheckForIllegalCrossThreadCalls = False

#End If

End Sub
Protected Overloads Overrides Sub Dispose(ByVal disposing As Boolean)

If disposing Then

If Not (components Is Nothing) Then

components.Dispose()

End If

End If

MyBase.Dispose(disposing)

End Sub
Private components As System.ComponentModel.IContainer

Friend WithEvents Panel1 As System.Windows.Forms.Panel

Friend WithEvents ExpTree1 As ExpTreeLib.ExpTree

Friend WithEvents Splitter1 As System.Windows.Forms.Splitter

Friend WithEvents Panel2 As System.Windows.Forms.Panel

Friend WithEvents cmdExit As System.Windows.Forms.Button

Friend WithEvents sbr1 As System.Windows.Forms.StatusBar

Friend WithEvents lv1 As System.Windows.Forms.ListView

Friend WithEvents ColumnHeaderName As System.Windows.Forms.ColumnHeader

Friend WithEvents ColumnHeaderSize As System.Windows.Forms.ColumnHeader

Friend WithEvents ColumnHeaderType As System.Windows.Forms.ColumnHeader

Friend WithEvents ColumnHeaderModifyDate As System.Windows.Forms.ColumnHeader

Friend WithEvents ColumnHeaderAttributes As System.Windows.Forms.ColumnHeader

Private Sub InitializeComponent()

Me.SuspendLayout()

'

'frmDragDrop

'

Me.ClientSize = New System.Drawing.Size(560, 363)

Me.Name = "frmDragDrop"

Me.ResumeLayout(False)

End Sub

#End Region

#Region "Form Exit Methods"

Private Sub cmdExit_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdExit.Click

mnuExit_Click(sender, e)

End Sub
Private Sub mnuExit_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles mnuExit.Click

Me.Close()

End Sub

#End Region
#Region "Form Load"

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

#If Ver = 2005 Then

Control.CheckForIllegalCrossThreadCalls = False

#End If

End Sub

#End Region
#Region " ExplorerTree Event Handling"

Private Sub AfterNodeSelect(ByVal pathName As String, ByVal CSI As CShItem) Handles ExpTree1.ExpTreeNodeSelected

Dim dirList As New ArrayList()

Dim fileList As New ArrayList()

Dim TotalItems As Integer

LastSelectedCSI = CSI

If CSI.DisplayName.Equals(CShItem.strMyComputer) Then

dirList = CSI.GetDirectories

Else

dirList = CSI.GetDirectories

fileList = CSI.GetFiles

End If

Event1.WaitOne()

TotalItems = dirList.Count + fileList.Count

If TotalItems > 0 Then

Dim item As CShItem

dirList.Sort()

fileList.Sort()

Me.Text = pathName

sbr1.Text = pathName & " " & _

dirList.Count & " Directories " & fileList.Count & " Files"

Dim combList As New ArrayList(TotalItems)

combList.AddRange(dirList)

combList.AddRange(fileList)

lv1.BeginUpdate()

lv1.Items.Clear()

lv1.Refresh()

For Each item In combList

Dim lvi As New ListViewItem(item.DisplayName)

With lvi

If Not item.IsDisk And item.IsFileSystem Then

Dim attr As FileAttributes

attr = GetAttr(item.Path)

Dim SB As New StringBuilder()

If (attr And FileAttributes.System) = FileAttributes.System Then SB.Append("S")

If (attr And FileAttributes.Hidden) = FileAttributes.Hidden Then SB.Append("H")

If (attr And FileAttributes.ReadOnly) = FileAttributes.ReadOnly Then SB.Append("R")

If (attr And FileAttributes.Archive) = FileAttributes.Archive Then SB.Append("A")

.SubItems.Add(SB.ToString)

Else : .SubItems.Add("")

End If

If Not item.IsDisk And item.IsFileSystem And Not item.IsFolder Then

If item.Length > 1024 Then

.SubItems.Add(Format(item.Length / 1024, "#,### KB"))

Else

.SubItems.Add(Format(item.Length, "##0 Bytes"))

End If

Else

.SubItems.Add("")

End If

.SubItems.Add(item.TypeName)

If item.IsDisk Then

.SubItems.Add("")

Else

If item.LastWriteTime = testTime Then

.SubItems.Add("")

Else

.SubItems.Add(item.LastWriteTime)

End If

End If

.Tag = item

End With

lv1.Items.Add(lvi)

Next

lv1.EndUpdate()

LoadLV1Images()

Else

lv1.Items.Clear()

sbr1.Text = pathName & " Has No Items"

End If

End Sub
#End Region

#Region " IconIndex Loading Thread"

Private Sub LoadLV1Images()

Dim ts As New ThreadStart(AddressOf DoLoadLv)

Dim ot As New Thread(ts)

#If Ver = 2005 Then

ot.SetApartmentState(ApartmentState.STA)

#Else

ot.ApartmentState = ApartmentState.STA

#End If

Event1.Reset()

ot.Start()

End Sub
Private Sub DoLoadLv()

Dim lvi As ListViewItem

For Each lvi In lv1.Items

lvi.ImageIndex = SystemImageListManager.GetIconIndex(lvi.Tag, False)

Next

Event1.Set()

End Sub

#End Region

#Region " Drag From Routines"

Private Sub lv1_ItemDrag(ByVal sender As Object, ByVal e As System.Windows.Forms.ItemDragEventArgs) Handles lv1.ItemDrag

With lv1

If .SelectedItems.Count > 0 Then

Dim toDrag As New ArrayList()

Dim lvItem As ListViewItem

Dim strD(.SelectedItems.Count - 1) As String

Dim i As Integer

For Each lvItem In .SelectedItems

toDrag.Add(lvItem.Tag)

strD(i) = CType(lvItem.Tag, CShItem).Path

i += 1

Next

Dim Dobj As New DataObject()

Dim ms As MemoryStream

ms = CProcDataObject.MakeShellIDArray(toDrag)

With Dobj

If Not ms Is Nothing Then

.SetData("Shell IDList Array", True, ms)

End If

.SetData("FileDrop", True, strD)

.SetData(toDrag)

End With

Dim dEff As DragDropEffects

If e.Button = Windows.Forms.MouseButtons.Right Then

dEff = DragDropEffects.Copy Or DragDropEffects.Move Or DragDropEffects.Link

Else

dEff = DragDropEffects.Copy Or DragDropEffects.Move

End If

Dim res As DragDropEffects = .DoDragDrop(Dobj, dEff)

End If

End With

End Sub
#End Region
Private Sub lv1_DoubleClick(ByVal sender As Object, ByVal e As System.EventArgs) Handles lv1.DoubleClick

Dim csi As CShItem = lv1.SelectedItems(0).Tag

If csi.IsFolder Then

ExpTree1.ExpandANode(csi)

Else

Try

Process.Start(csi.Path)

Catch ex As Exception

MsgBox(ex.Message, MsgBoxStyle.OkOnly, "Error in starting application")

End Try

End If

End Sub
Private Sub txtDropOn_DragEnter(ByVal sender As Object, ByVal e As System.Windows.Forms.DragEventArgs) Handles txtDropOn.DragEnter

If e.Data.GetDataPresent("FileDrop", True) And _

((e.AllowedEffect And DragDropEffects.Copy) = DragDropEffects.Copy) Then

e.Effect = DragDropEffects.Copy

Else

e.Effect = DragDropEffects.None

End If

End Sub
Private Sub txtDropOn_DragDrop(ByVal sender As Object, ByVal e As System.Windows.Forms.DragEventArgs) Handles txtDropOn.DragDrop

Dim fList() As String = e.Data.GetData("FileDrop", True)

txtDropOn.Text = ""

Dim S As String

For Each S In fList

txtDropOn.Text += S & vbCrLf

Next

e.Effect = DragDropEffects.None

End Sub
Private Sub SAY(ByVal S As String)

txtDropOn.Text += S & vbCrLf

Debug.WriteLine(S)

End Sub

Private Sub mnuRefreshTree_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles mnuRefreshTree.Click

ExpTree1.RefreshTree()

End Sub
Private Sub mnuChangeRoot_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles mnuChangeRoot.Click

ExpTree1.RootItem = ExpTree1.SelectedItem

End Sub
Private Sub mnuSetToDesktop_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles mnuSetToDesktop.Click

ExpTree1.RootItem = CShItem.GetDeskTop

End Sub
#Region " Test Routines"

Private Sub mnuShowSpecial_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

Dim eNames() As String = [Enum].GetNames(GetType(ExpTree.StartDir))

Dim eNums() As ShellDll.CSIDL = [Enum].GetValues(GetType(ExpTree.StartDir))

Dim CSI As CShItem

Dim i As Integer

For i = 0 To eNames.Length - 1

Debug.WriteLine("Getting Item for -- " & eNames(i))

Try

CSI = New CShItem(eNums(i))

CSI.DebugDump() : CShItem.DumpPidl(CSI.PIDL)

Catch ex As Exception

Debug.WriteLine("Error on making new CShitem")

End Try

Debug.WriteLine("")

Next

End Sub
Private Sub mnuMakeDigest_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

Dim SR As New StreamReader("F:\DragNDropV4\LegalCSIDL.txt")

Dim SW As New StreamWriter("F:\DragNDropV4\LegalCSIDLDigest.txt", False)

Dim PidlOne As Boolean = False

Do While SR.Peek <> -1

Dim inp As String = SR.ReadLine()

Dim tInp As String = inp.Trim

If tInp.Length > 0 Then

If tInp.StartsWith("Getting") OrElse _

tInp.StartsWith("Error") OrElse _

tInp.StartsWith("DisplayName") OrElse _

tInp.StartsWith("Path") OrElse _

tInp.StartsWith("IsFileSystem") OrElse _

tInp.StartsWith("PIDL") OrElse _

tInp.StartsWith("TypeName") Then

SW.WriteLine(inp)

Debug.WriteLine(inp)

PidlOne = False

ElseIf tInp.StartsWith("ItemID #1") Then

PidlOne = True

SW.WriteLine(inp)

Debug.WriteLine(inp)

ElseIf tInp.StartsWith("ItemID") Then

SW.WriteLine(inp)

Debug.WriteLine(inp)

PidlOne = False

ElseIf PidlOne Then

SW.WriteLine(inp)

Debug.WriteLine(inp)

End If

End If

Loop

SR.Close()

SW.Close()

End Sub
Private Sub mnuTestcPidl_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

Dim CSI As CShItem = CShItem.GetDeskTop

dumpCPidl(CSI)

CSI = New CShItem(ShellDll.CSIDL.DESKTOPDIRECTORY)

dumpCPidl(CSI)

CSI = New CShItem("C:\Temp")

dumpCPidl(CSI)

CSI = New CShItem("F:\DragNDropV4\ClipSpy\src")

dumpCPidl(CSI)

CSI = New CShItem(ShellDll.CSIDL.NETHOOD)

dumpCPidl(CSI)

Dim b(14) As Byte

b(0) = 43

Debug.WriteLine("An Invalid Pidl Tests" & IIf(IsValidPidl(b), " IsValid", " Is NOT Valid"))

End Sub
Private Sub dumpCPidl(ByVal CSI As CShItem)

Dim cp As cPidl = CSI.clsPidl

Dim o() As Object = cp.Decompose

Debug.WriteLine(CSI.DisplayName)

DumpPidl(CSI.PIDL)

Dim b() As Byte

Dim i As Integer = 1

For Each b In o

Debug.Write("cPidl Item #" & i & IIf(IsValidPidl(b), " IsValid", " Is NOT Valid"))

DumpHex(b)

i += 1

Next

End Sub
Private Sub mnuTestFindCShItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

ExpTreeLib.Tests.TestFindCShItem()

End Sub
Private Sub MenuItem4_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

Dim xxx As CShItem = GetCShItem("C:\")

testJoinBytes(xxx)

xxx = GetCShItem(CType(GetDeskTop.GetItems()(3), CShItem).Path)

testJoinBytes(xxx)

Dim yyy As CShItem = GetCShItem(ShellDll.CSIDL.APPDATA)

xxx = CType(yyy.GetDirectories()(3), CShItem)

testJoinBytes(xxx)

End Sub
Private Sub testJoinBytes(ByVal xxx As CShItem)

Debug.WriteLine("Testing PIDL of -- " & xxx.DisplayName)

DumpPidl(xxx.PIDL)

Dim o() As Object = xxx.clsPidl.Decompose

Dim R() As Byte = o(0)

Debug.WriteLine("Joining Pidls, Step 0")

DumpHex(R)

Dim i As Integer

For i = 1 To o.Length - 1

R = cPidl.JoinPidlBytes(R, o(i))

Debug.WriteLine("Joining Pidls, Step " & i)

DumpHex(R)

Next

End Sub

#End Region

End Class
