Supplementary material

Green process for CO₂ valorization: kinetic study of the carbonation of epoxidized vegetable oils

Xiaoshuang Cai¹, Jun Liu Zheng¹, J. Wärnå², Tapio Salmi², Bechara Taouk¹, Sebastien Leveneur<sup>1,2

1</sup> Normandie Univ, INSA Rouen, UNIROUEN, LSPC, EA4704, 76000 Rouen, France ; E-mail : [e-mail]; fax: [phone].

²Laboratory of Industrial Chemistry and Reaction Engineering, Johan Gadolin Process Chemistry Centre, Åbo Akademi University, Biskopsgatan 8, FI-20500 Åbo/Turku, Finland.

S1: Density and viscosity measurement

The densities and viscosities of epoxidized cottonseed oil (ECSO), cottonseed oil (CSO) and carbonated cottonseed oil were measured at different temperatures. Pure CSO was used for the measurements. The conversion of double bonds was higher than 80% for ECSO. The conversion of the epoxide groups was higher than 80% for CCSO.

1.
   Viscosity measurements

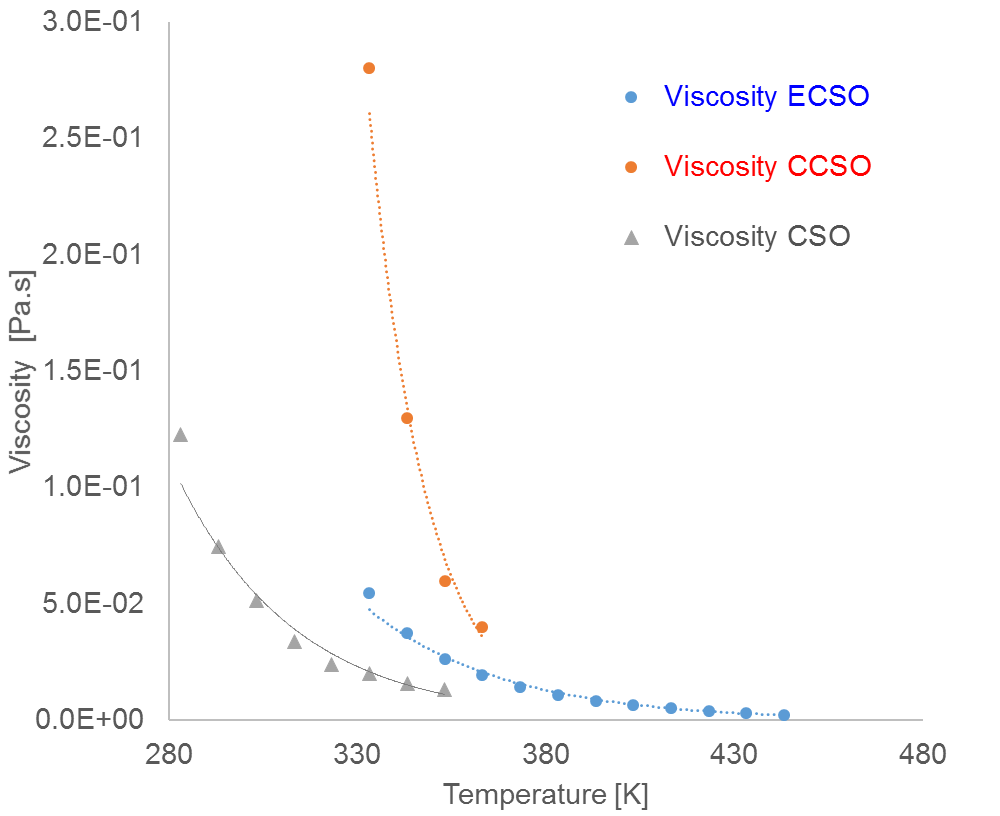

The viscosity of CSO was measured with a viscometer FUNGILAB.S.A. The viscosities of ECSO and CCSO were measured with a viscometer BROOKFIELD CAP2000+. Figure S1 shows the evolution of the viscosity of these three oils versus temperature. It can be noticed that the viscosity follows an exponential law with temperature. These relationships were used during the modeling stages.

Figure S1. Evolution of viscosities as a function of temperature.

Correlation between viscosity and temperature can be expressed as an Arrhenius law as illustrated by Figure S2.

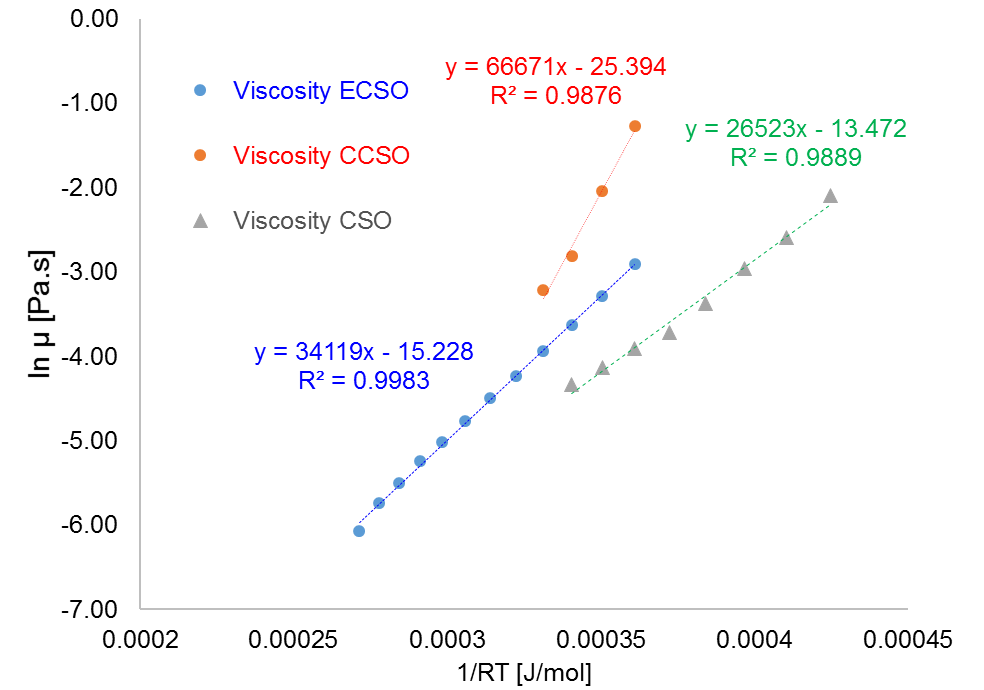

Figure S2. Linear correlation between the logarithm of viscosity and 1/RT.

2.
   Density measurement


Density of these oils was measured with an Anton Parr density meter. Figure S3 shows that the evolution of density is linear with temperature.

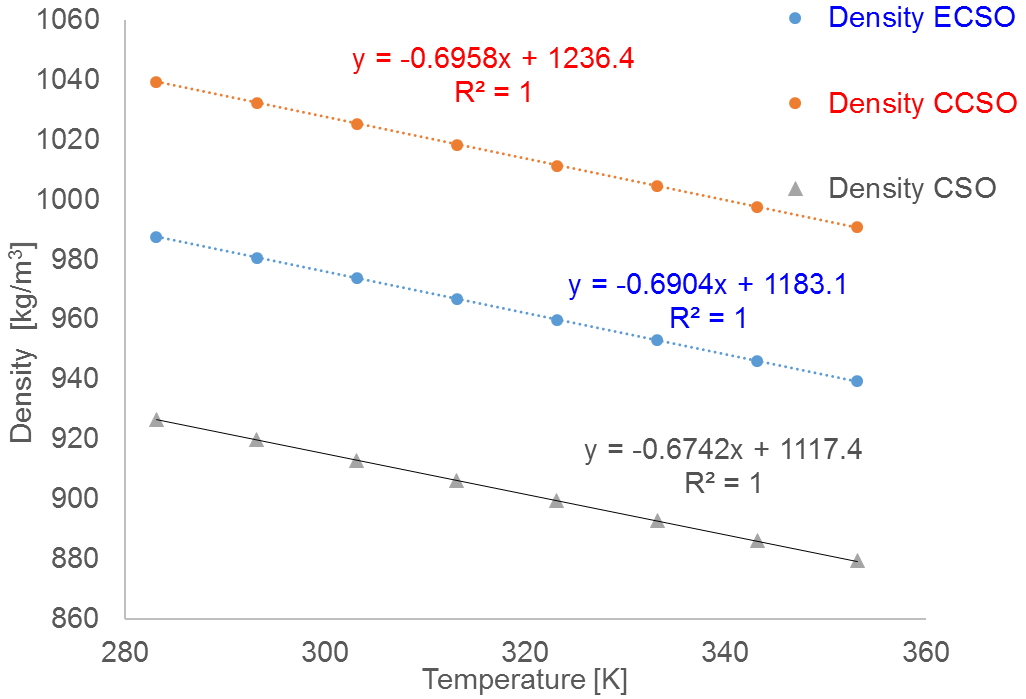

Figure S3. Evolution of densities in function of temperature.

3.
   Statistical data.

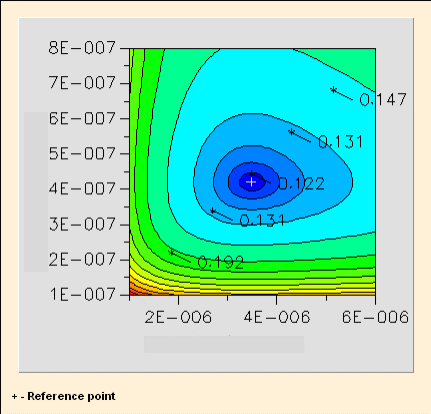

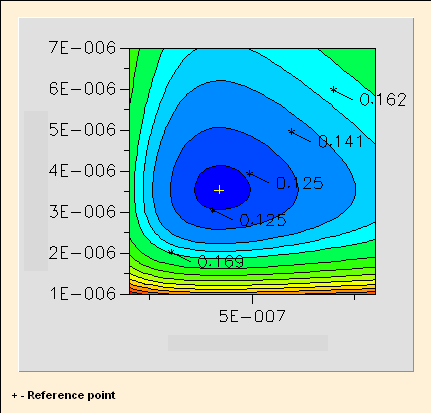

Figures S4-S6 show the contour plot for the modified mass transfer coefficients. One can notice that in all the cases the estimated parameters were found at the minimum.

Figure S4 Contour plot of modified mass transfer coefficient versus.

4.



Figure S5 Contour plot of modified mass transfer coefficient versus.

Figure S6 Contour plot of modified mass transfer coefficient versus.

Figure S7 shows that there is a clear.



Figure S7. MCMC sensitivity analysis for all estimated parameters.
