Transforming and leveraging olap queries Patrick Marcel

Transforming and leveraging OLAP queries

• Patrick Marcel

• Université François Rabelais Tours

• Laboratoire d'Informatique

• SAP-BO, 06.22.2010

Outline

• Short CV

• Personnalizing OLAP queries

• Recommending OLAP queries

• Summarizing OLAP queries

• Perspectives

About me

• PhD « multidimensional data(base) manipulations and rule based languages »,

• defended 1998, LISI (now LIRIS) INSA Lyon
• Sup. J. Kouloumdjian and MS Hacid

• Maître de Conférences, UFRT, Dépt. Informatique

• Head of the Masters program in Information systems and decision making

• Semester off (September 2010 – January 2011)

About me (cont'd)

• Member of DB & NLP team (4 PR, 8 MCF)

• NLP
• XML and web technology
• Data mining and OLAP
• Recent activities
• Pattern based global models (PhD Eynollah Khanjari 2009)
• Summarizing and visualizing large sets of association rules (PhD Marie Ndiaye 2010)
• Collaborative exploration of datawarehouses (PhD Elsa Negre 2009)

Personnalizing OLAP queries

• PhD Hassina Mouloudi (2007)

• Main pulications

• ACM DOLAP 2005
• BDA 2006
• Hassina's dissertation (in French)

• Prototype

• Mobile application for querying a cube with query personnalization
• Mondrian, Oracle, Tomcat, Axis

Motivation

• SELECT CROSSJOIN({City.Tours, City.Orleans},

• {Category.Members}) ON ROWS

• {2003, 2004, 2005, 2006} ON COLUMNS

• FROM SalesCube

• WHERE (Measures.quantity)

• Visualization depends on the user's profile

The problem

• Given

• An MDX query q
• User preferences P
• A Visualization constraint v

• Find a preferred query q'

• Included in q
• Nearest to q satisfying v
• The most interesting w.r.t P

Example of preferred query

Personnalizing

Personnalizing OLAP queries

• Context

• Dimension tables in main memory
• No acces to the fact table

• Principle

• Compute sets of positions in the resulting crosstab
• Largest possible
• Visualizable w.r.t. The visualization constraint
• Corresponding to the preferred facts
• Compute the structures of the crosstabs

Example of personnalization (1)

Example of personnalization (2)

Example of personnalization (3)

Example of personnalization (4)

Example of personnalization (5)

Prototype

Speedup

Recommending OLAP queries

• PhD Elsa Negre (2009)

• Main publications

• ACM DOLAP 2008
• DaWak 2009
• ACM DOLAP 2009
• Int. Journal of DW and mining

• Prototype

• Various methods for OLAP query recommendation
• Mondrian, MySql

Context and principle

Distances

• Between positions in the cube

• Hamming
• Based on shortest path

• Between queries

• Based on differences in dimension
• Hausdorff

• Between sessions

• Based on the subsequence
• Edit distance

Experiments

• Cube

• Foodmart (Mondrian sample cube)

• Session generator

• Max 100 cells per MDX query
• 25-50 sessions
• 20-50 queries/session
• Log of 150-25000 queries
• 1-20 queries/current session

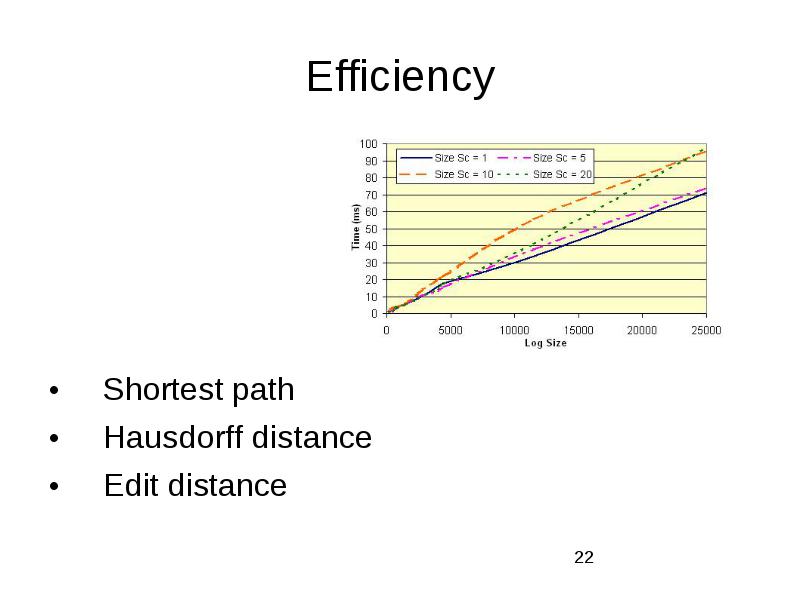

Efficiency

• Shortest path

• Hausdorff distance

• Edit distance

Effectiveness

• 10 fold cross validation

• 1 query set = 10 equally sized subsets
• 9 for the log
• 1 for the current sessions

• For the current sessions

• Remove the last query
• check how often this last query is recommended

Effectiveness

Query recommandation for discovery driven analysis?

Processing the log

Processing the log

Processing the log

Processing the log

Processing the log

Processing the log

Recommending

Recommending

Recommending

Recommending

Recommending

Prototype

• Java, mondrian OLAP engine & Sarawagi's icube

• Preliminary tests show that

• for small size log (few hundreds of queries)
• Recommendation time does not exceeds 50 ms

Conclusion: so far...

Summarizing OLAP queries

• Master's thesis Julien Aligon (in progress)

• Problem: viewpoints on former sessions?

• By summarizing the log
• Summarize a sequence of queries by a sequence of queries
• By browsing/querying the summary

• Experiments on healthcare data

• Related publication

• EDA 2007, 2010

Perspectives

• Project STIC-AmSud PQUERY: preference models for personnalized queries

• Forthcomming work with M. Golfarelli (U. Bologna)

• Preference mining to dynamically add preferences to an MDX query

• Contributions to a collaborative query management system for OLAP
