Emc models Models – What for ?

EMC Models

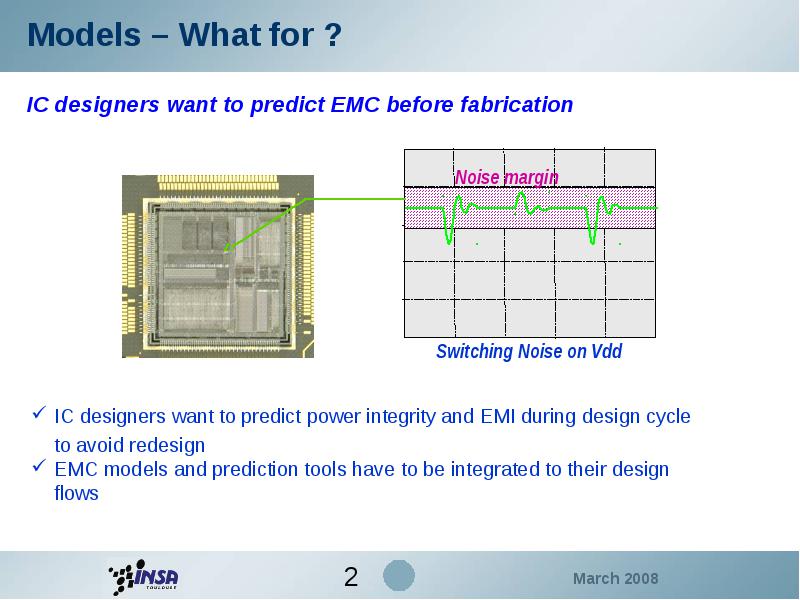

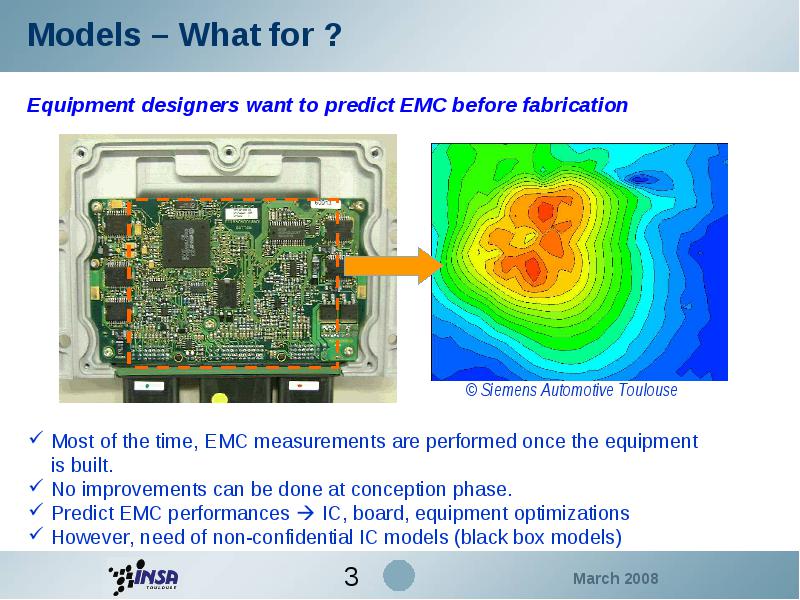

Models – What for ?

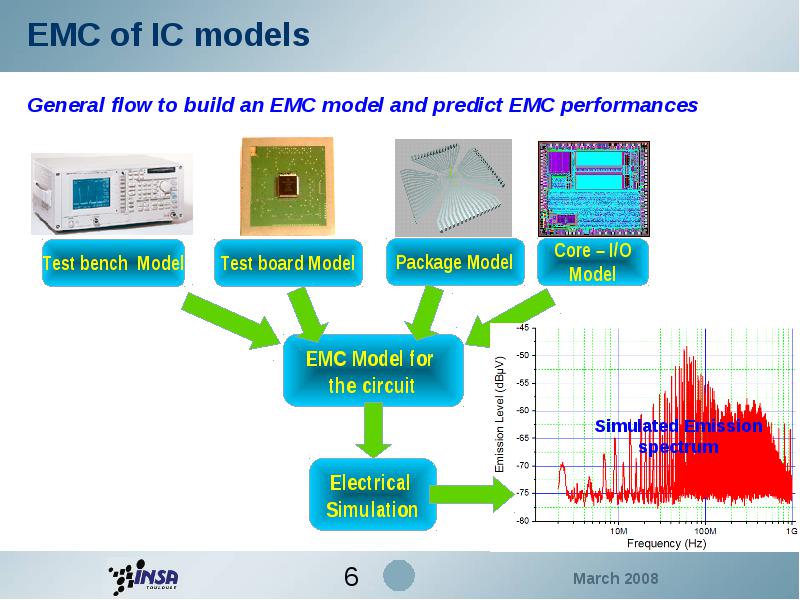

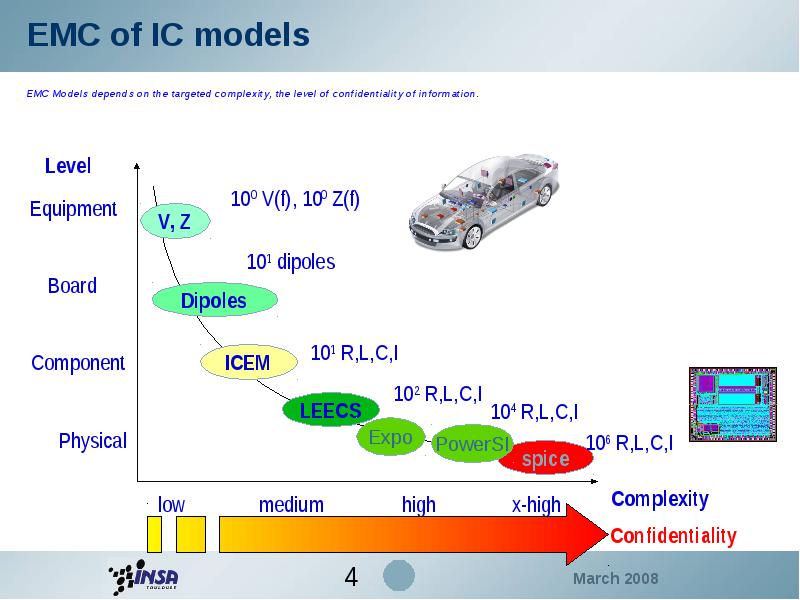

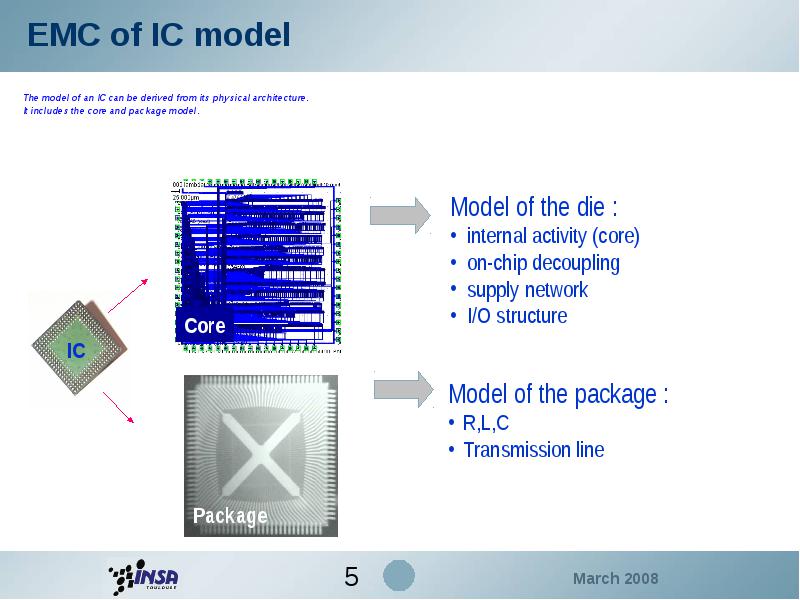

EMC of IC model

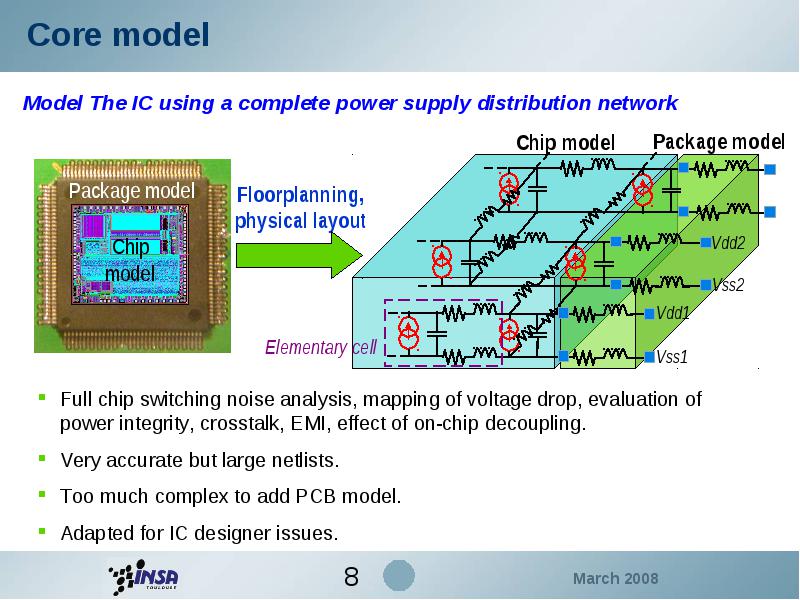

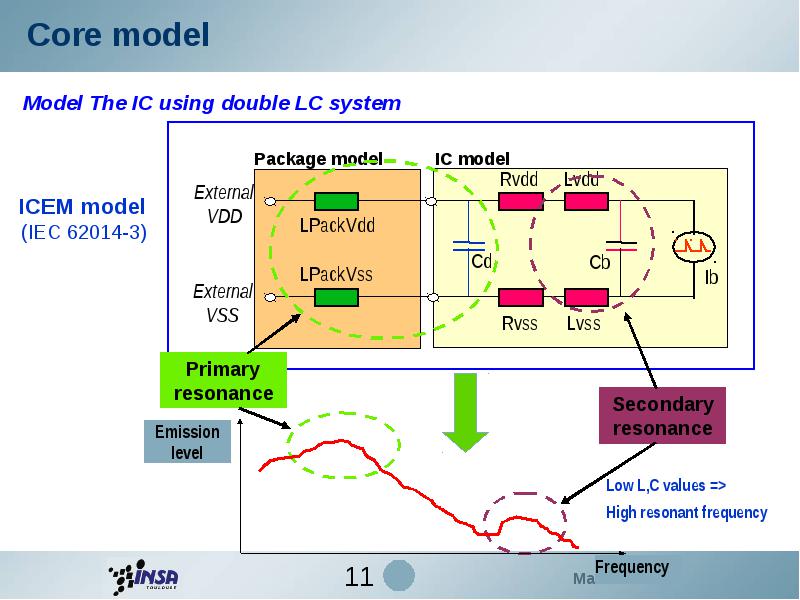

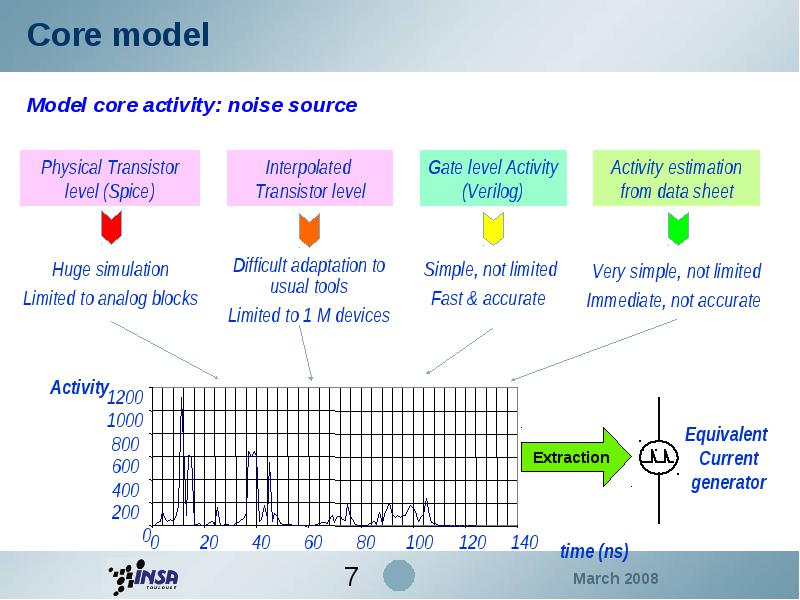

Core model

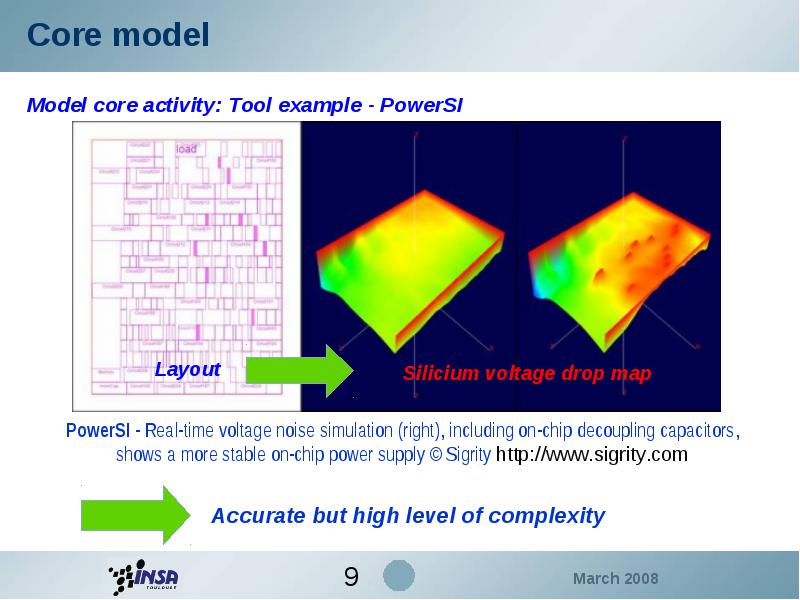

Core model

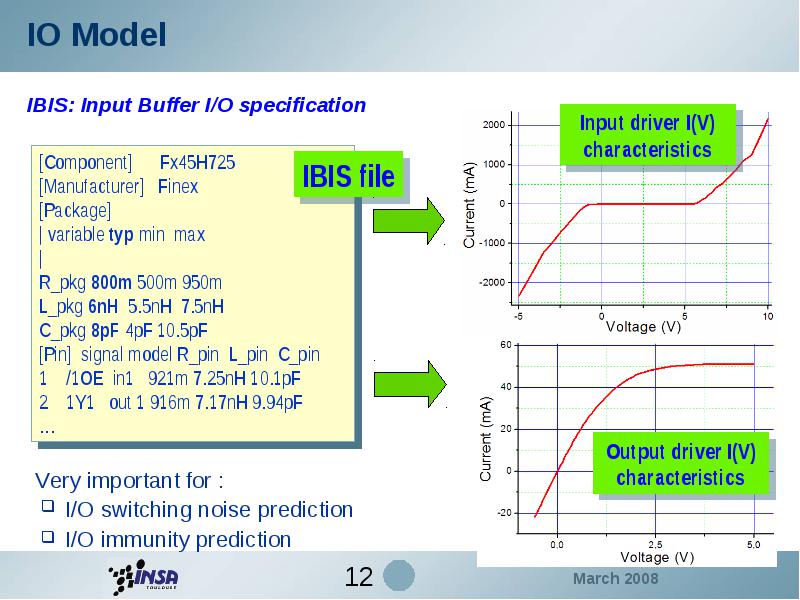

IO Model

EMC Guidelines

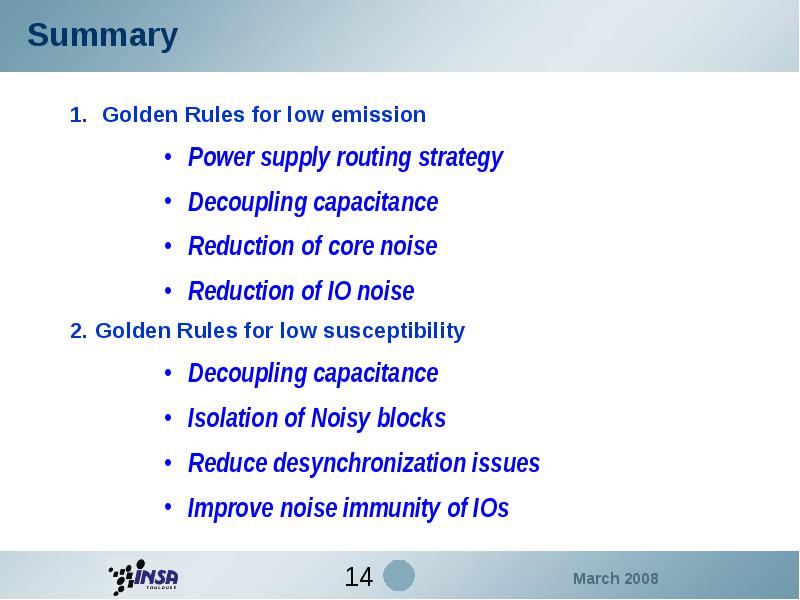

Summary

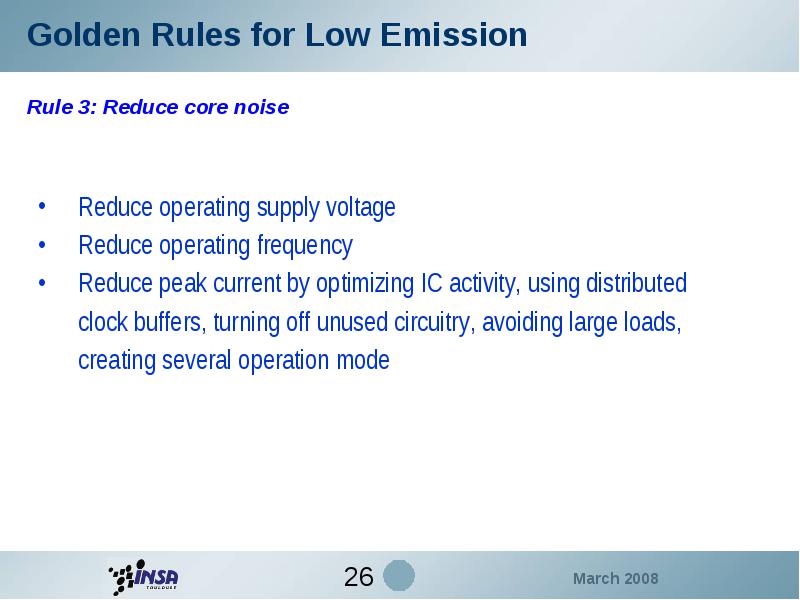

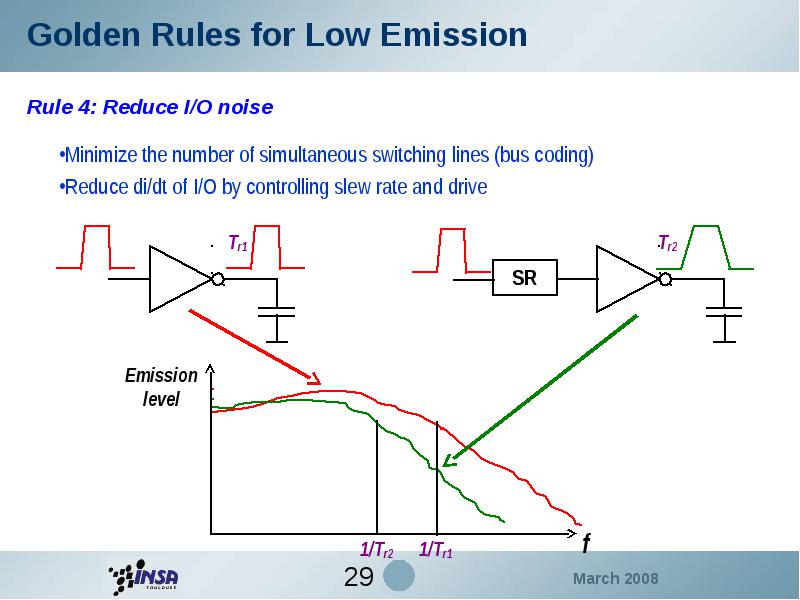

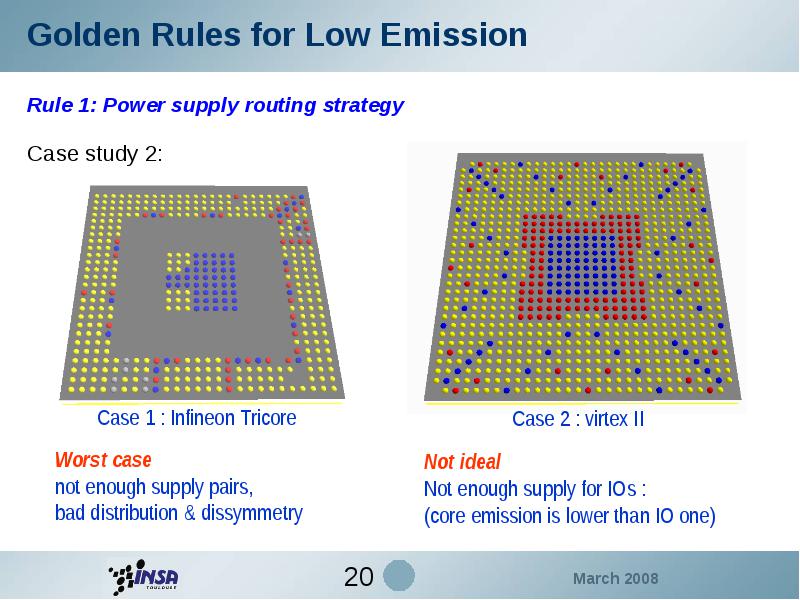

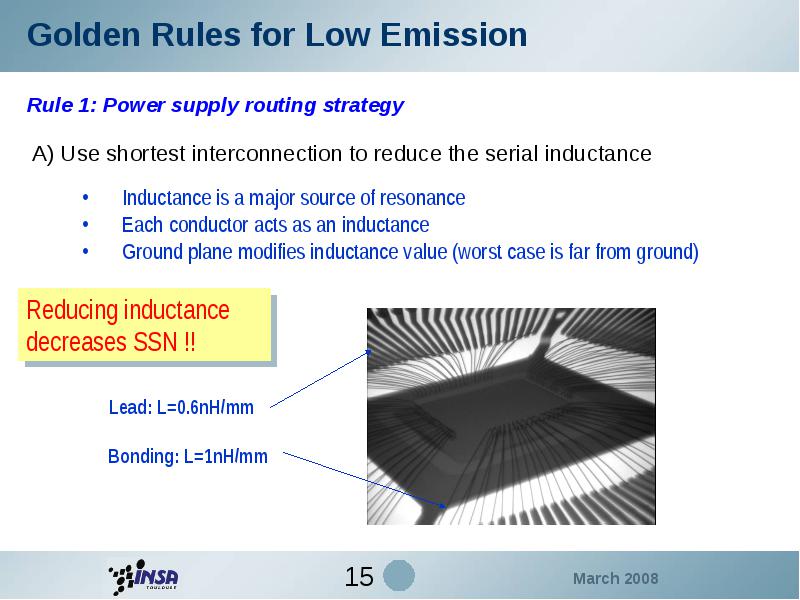

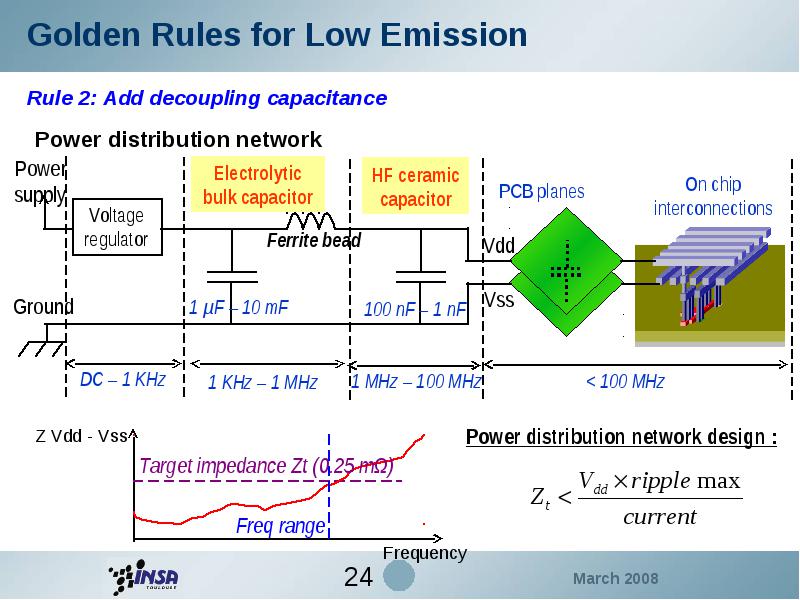

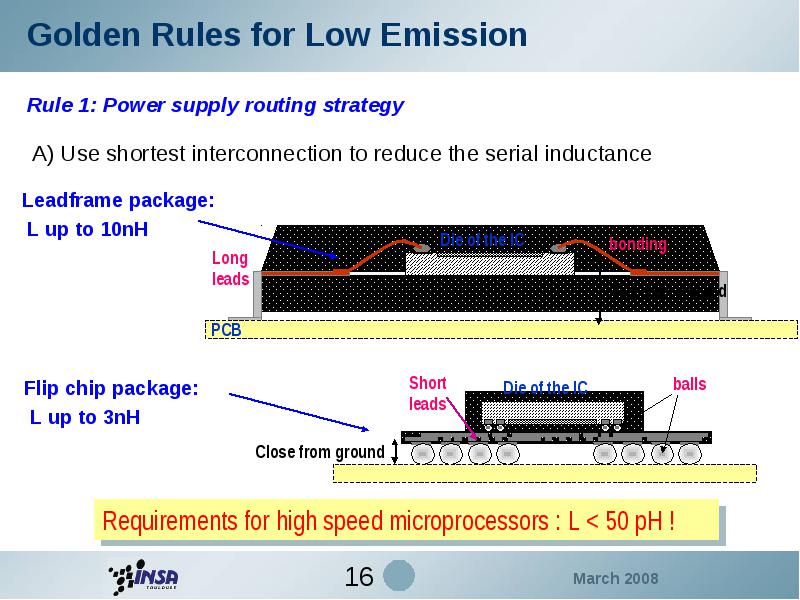

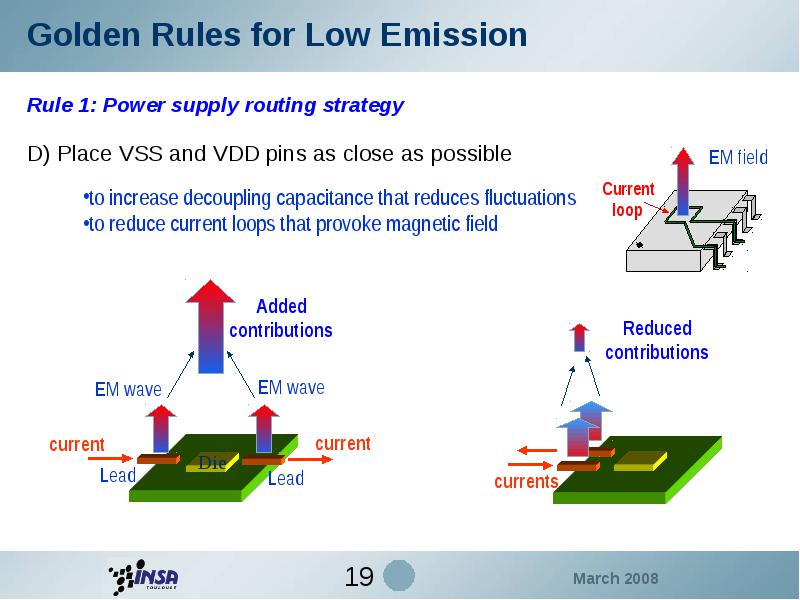

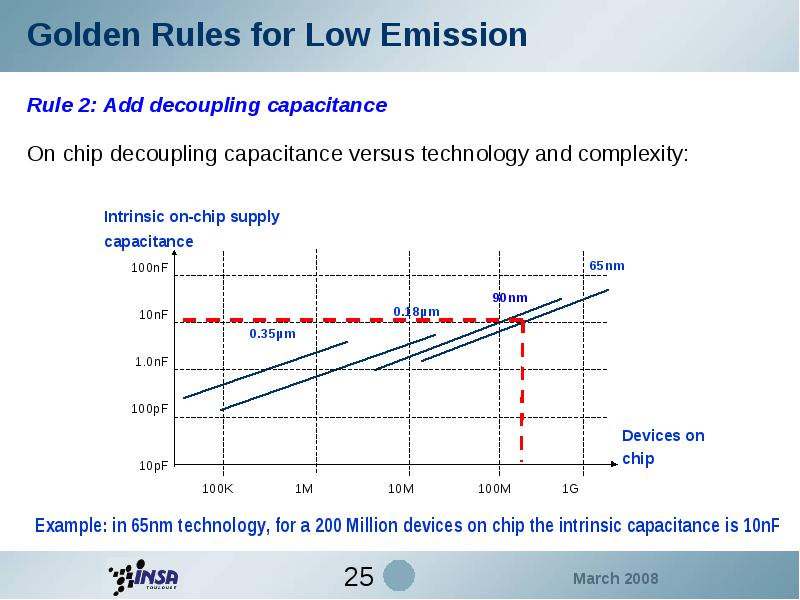

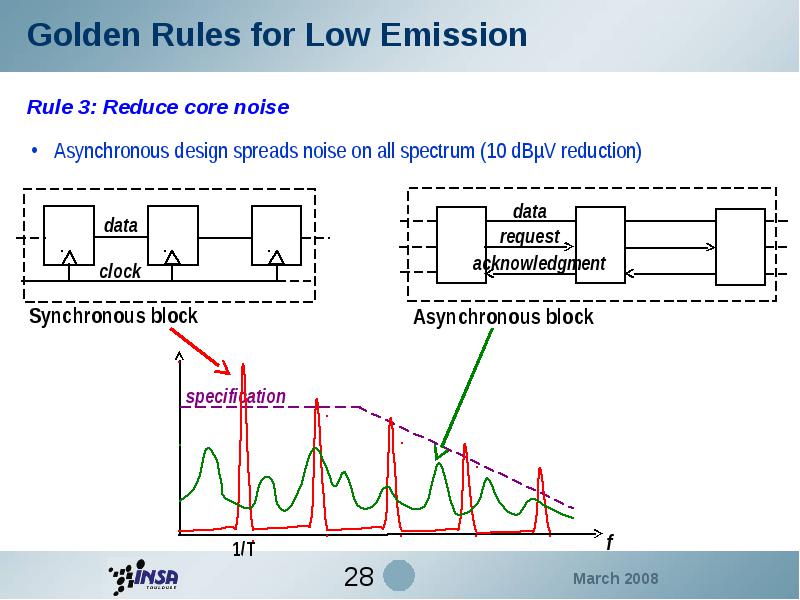

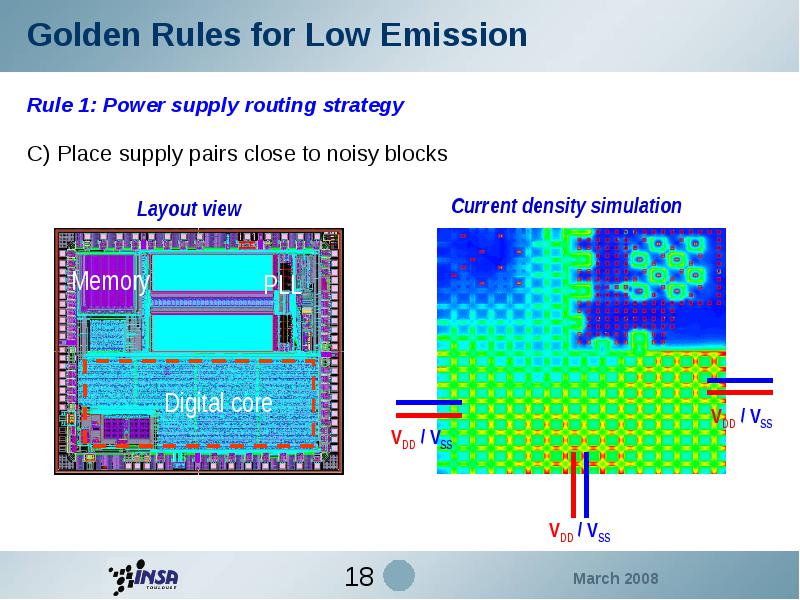

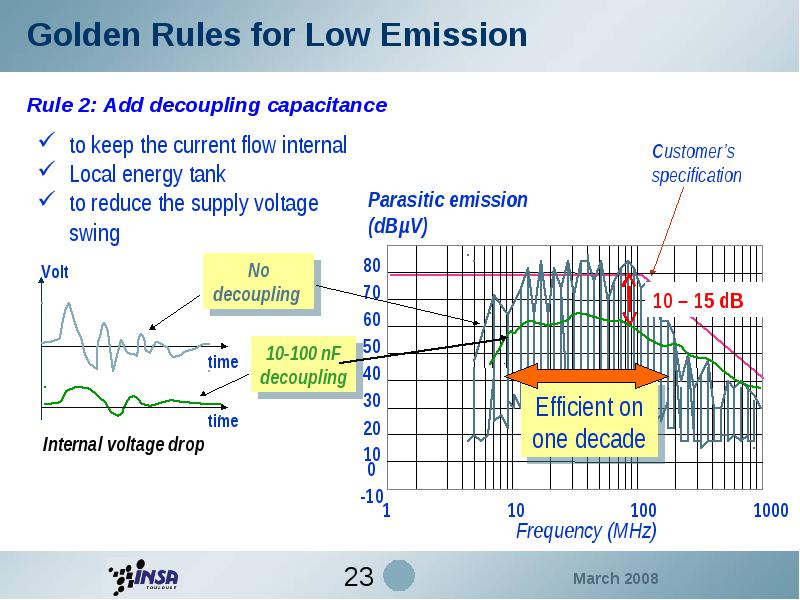

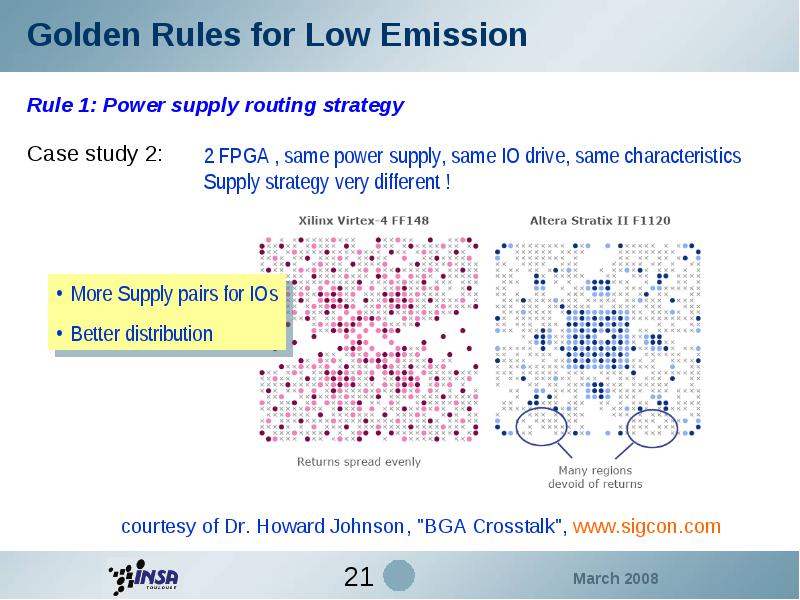

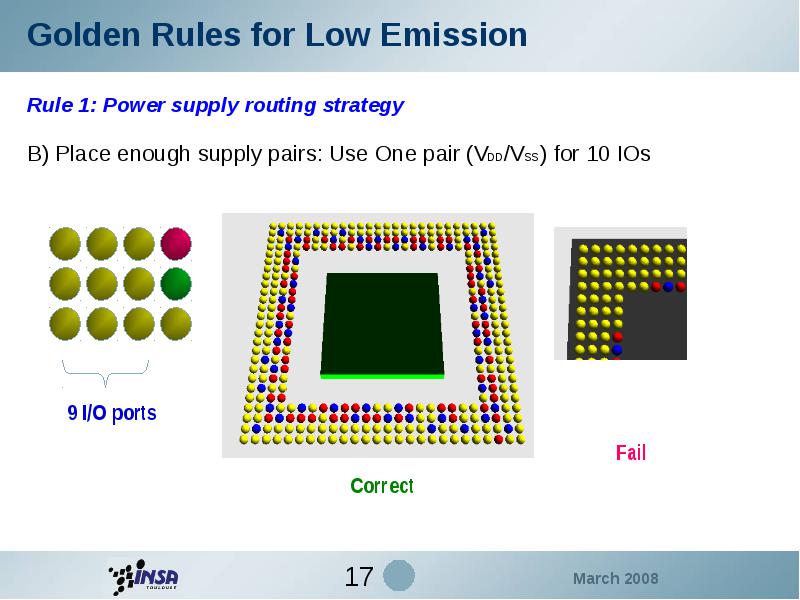

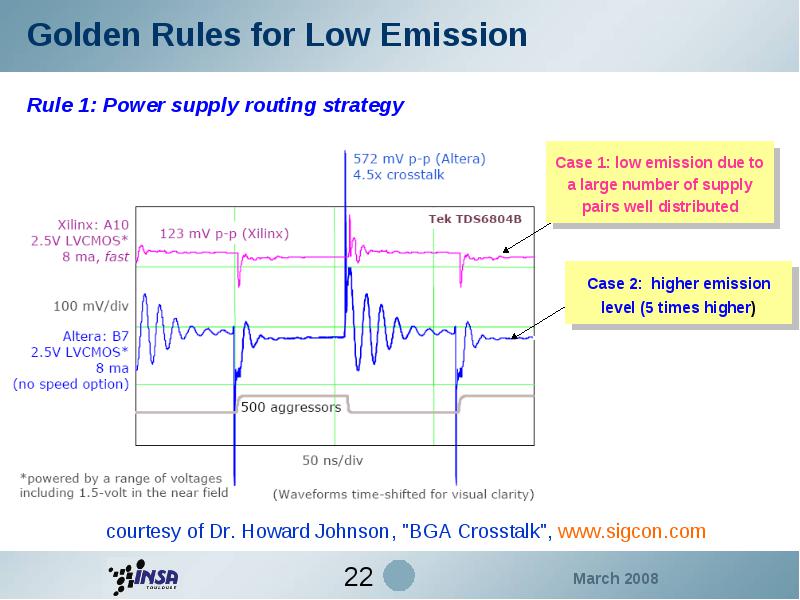

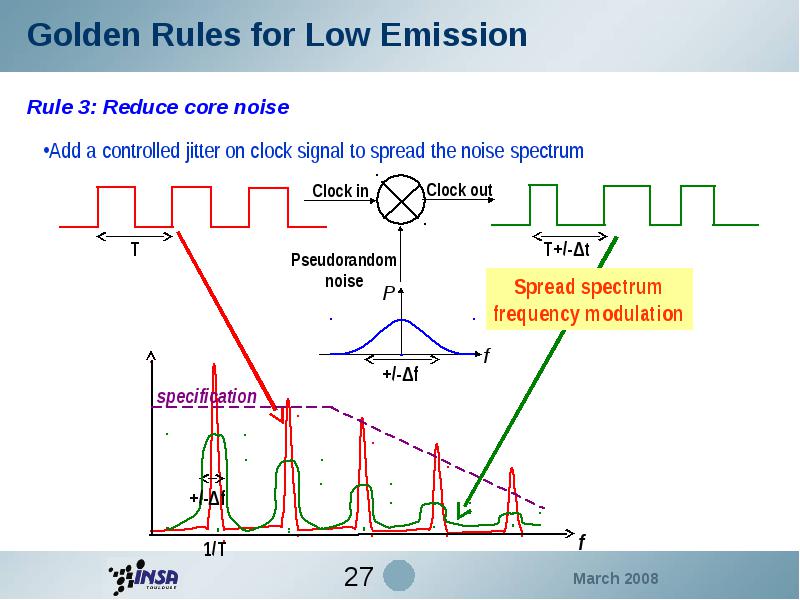

Golden Rules for Low Emission

Conclusion / Future of EMC

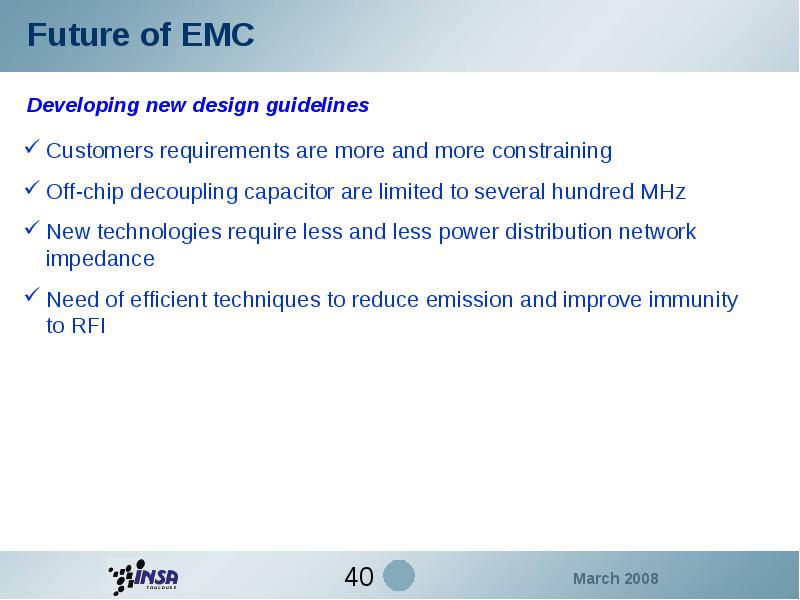

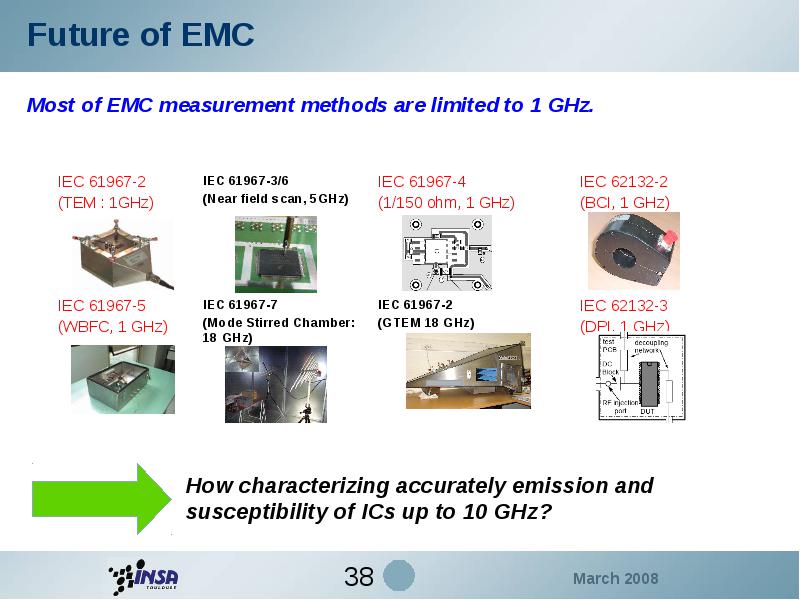

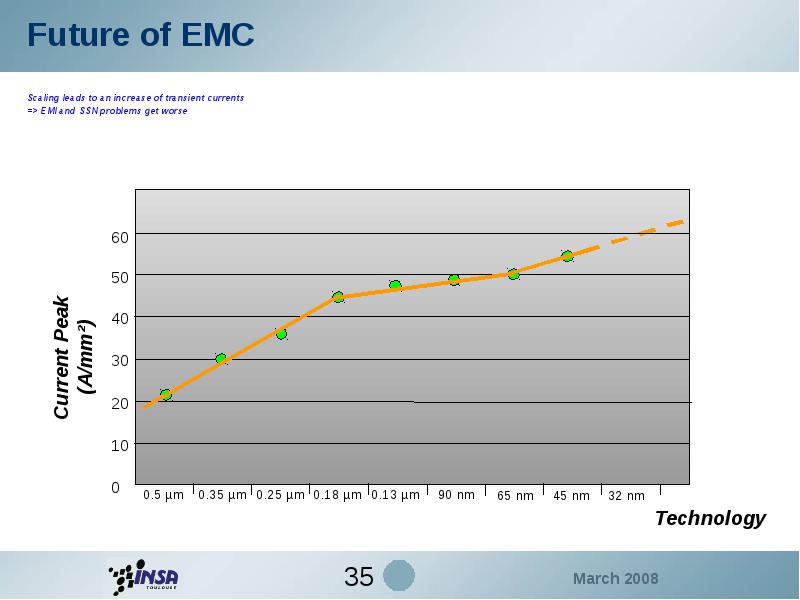

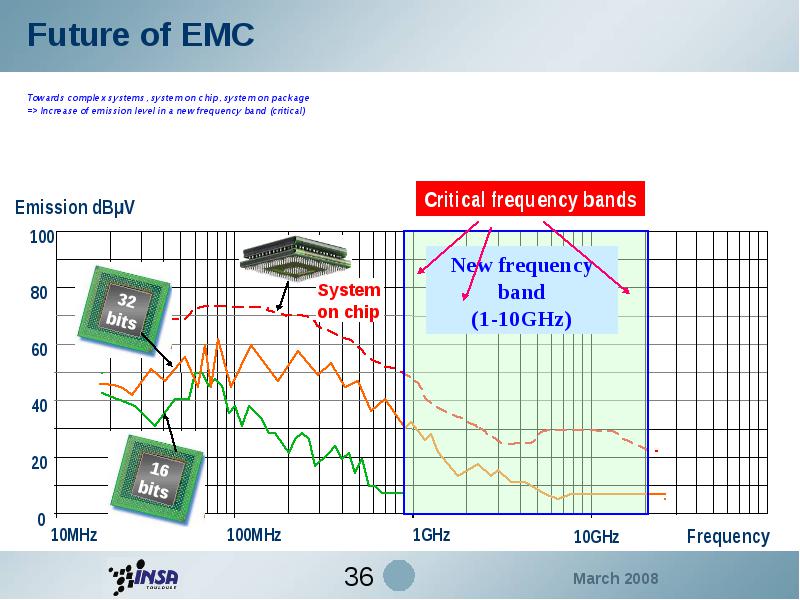

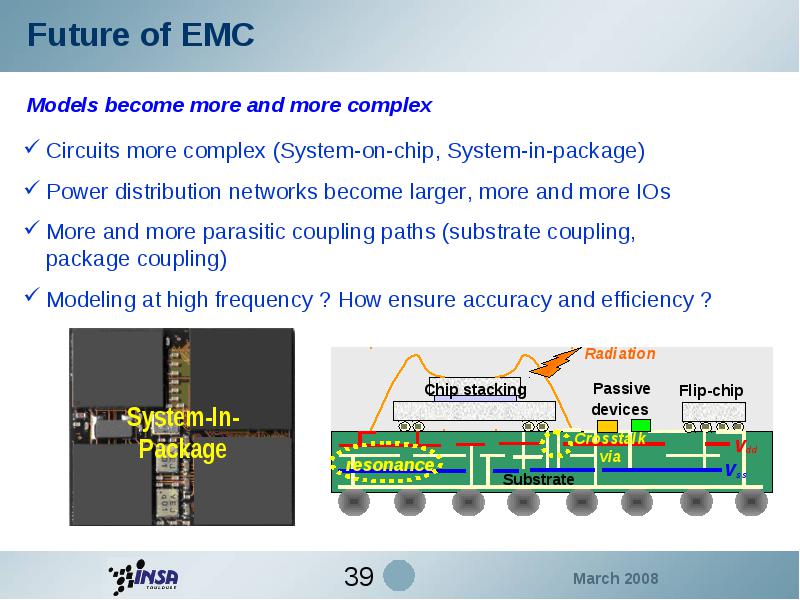

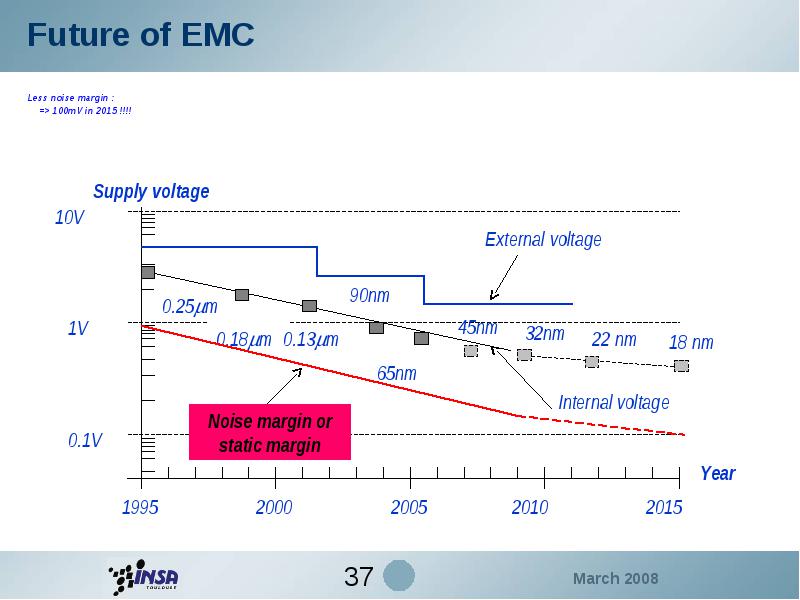

Future of EMC

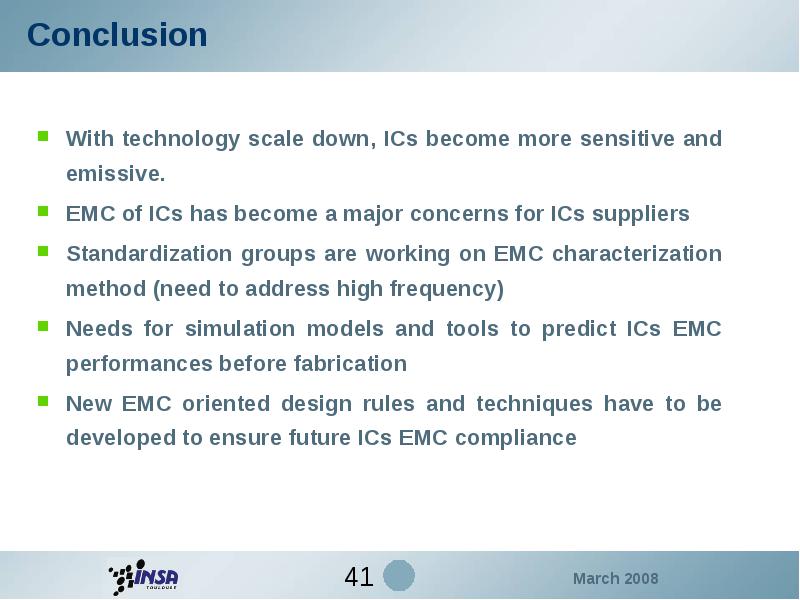

Conclusion

• With technology scale down, ICs become more sensitive and emissive.

• EMC of ICs has become a major concerns for ICs suppliers

• Standardization groups are working on EMC characterization method (need to address high frequency)

• Needs for simulation models and tools to predict ICs EMC performances before fabrication

• New EMC oriented design rules and techniques have to be developed to ensure future ICs EMC compliance
