Robust 3-D Watermarking against Distortionless Attacks

Jae-Won Cho1, Min-Su Kim1, 2, R. Prost2,


Hyun-Yeol Chung1, and Ho-Youl Jung1

1Dept. of Info. and Comm. Eng., University of Yeungnam, KOREA
2CREATIS, INSA de Lyon, FRANCE

ram56@yumail.ac.kr,hoyoul@yu.ac.kr



Abstract. Most watermarking techniques for 3-D mesh models have mainly focused on robustness against various attacks, such as adding noise, smoothing, simplification, re-meshing, clipping, and so on. These attacks perceptually damage the stego model itself. Unlike watermarking of other multimedia data, serious attacks for 3-D meshes includes similarity transform and vertex re-ordering. They can fatally destroy the watermark without any perceptual degradation of the stego model. In this paper, we propose a new watermarking technique for 3-D polygonal mesh model, which modifies the distribution of vertex norms according to watermark bit to be embedded. In particular, the proposed employs blind watermark detection technique, which extracts the watermark without referring to cover meshes. The simulation results show that the pro-posed is remarkably robust against similarity transform and vertex re-ordering.

1. INTRODUCTION

With remarkable growth of network technology such as WWW (World Wide Web), digital media enables us to copy, modify, store, and distribute digital data without effort. As a result, it has become a new issue to research schemes for copyright protection. Watermarking is a copyright protection technique to embed information, so-called watermark, into cover data.

There are several challenges to develop robust watermarking technique in 3-D polygonal mesh models. Unlike image data represented by brightness (or color) at pixel uniformly sampled over regular grid in dimension two, polygonal mesh model has no unique representation, i.e., no implicit order and connectivity of vertices [1]. For such a reason, most techniques developed for other types of multimedia are not effective for 3-D meshes [2]. Besides it is hard to decide embedding primitives for robust watermark. And a variety of complex geometrical and topological operations are available to disturb the watermark extraction for assertion of ownership [3]. In particular, some distortionless attacks such as vertex re-ordering and similarity transform (including rotation, translation, and uniform scaling) are possible. They can fatally destroy the watermark without any perceptual change of the stego model.

In this paper, we propose a new watermarking technique for 3-D polygonal mesh model, which modifies the distribution of vertex norms so as to shift mean value of vertex norms according to watermark bit to be inserted. Distribution of vertex norms is divided into several sections, called these bins later, so as to improve capacity and transparency of watermark. Clearly, the distribution of vertex norms is invariant to similarity transform and vertex re-ordering. In addition, the proposed employs blind scheme, which can extract the watermark without reference of cover mesh model.

This paper is organized as follows. In section 2, the proposed watermarking method is introduced. Section 3 shows the simulation results of the proposed against adding noise and clipping, as well as similarity transform and vertex re-ordering. Finally, we conclude this paper.

2. PROPOSED WATERMARKING SCHEME

The watermarking scheme proposed in this paper embeds watermark information into 3-D polygonal mesh model by modifying the distribution of vertex norms. Fig. 1 shows main idea of the proposed watermarking scheme.

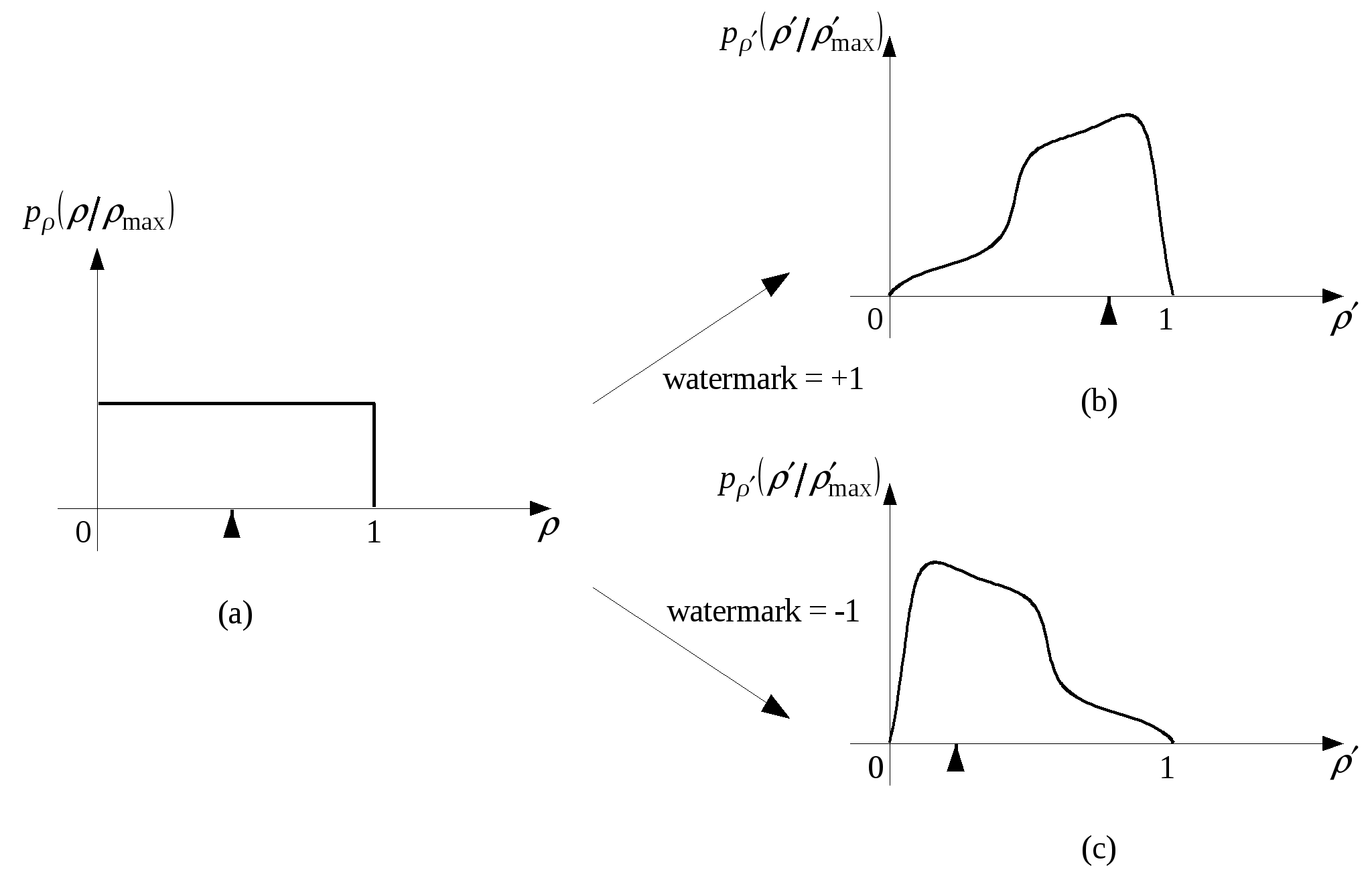

Fig. 1. Main idea of the proposed watermarking method modifying the distribution of vertex norm. Here, the mean value is denoted by ▲.

General embedding process of the proposed method is as follows. To begin with, Cartesian coordinates (xi, yi, zi) of a vertex on cover mesh model V are converted to spherical coordinates (i, i, i). Where, i is i-th vertex norm. Vertex norm is the distance between each vertex and center of the model. We modify the distribution of vertex norm, which is invariant to similarity transform and vertex re-ordering.

In the second step, the interval of the distribution is divided into N small sections. Here, each section is employed as watermark embedding unit, so-called bin. That is, vertices are classified into N bins according to their norm, and each bin is independently processed for watermark embedding. This allows enhancing both capacity and transparency of the watermark. For such purpose, maximum and minimum vertex norms, max and min, should be found in advance.

The third step is to calculate mean and reference values of vertex norms, n and rn, respectively in each bin. Where, middle value of the corresponding section is used as the reference to estimate the distribution by comparing with the mean. For the case of n > rn, it can be estimated that the distribution is centralized into right-side, and vice-versa.

Next step is to alter the distribution of vertex norms, so that the mean and the reference values are changed according to watermark bit n{–1, +1} to be embedded in each bin. For embedding watermark bit of +1, vertex norms are modified in order that the mean and the reference values satisfy n > rn. Here, the superscript prime means the value obtained from the modified vertex norm, n,j , and rnrn is preserved since we do not modify both minimum and maximum norms, max and min . For embedding n = –1, vertex norms are modified in order to be n < rn. In our proposed, the modified vertex norm is obtained by


,

(1)

where strength factor of the n-th bin, n, is determined so as to guarantee such that n > rn for n = +1 and n < rn for n = –1, respectively.



(2)

This means that the whole vertex norms in each bin are added by +n or –n. The relation between mean and reference values is retained, when the processing is performed in separate bin. Unfortunately, it leads to serious impact on robustness of watermark when the processing is performed in every each bin, because some modified vertices belong to certain bin can invade into other neighbor bins. To cope with these disadvantages, we propose advanced method. Mean value can be shifted by modifying only some part of vertex norms. In our approach, vertex norms that are smaller/greater than reference value are modified.

The final step is inverse transformation of vertex from spherical coordinates onto Cartesian coordinates. The Cartesian coordinates (xi, yi, zi) of vertex v on stego mesh model V is given by this inverse transformation.

Note that the watermark embedding method utilizes only the distribution of vertex norms, which is invariant to similarity transform and vertex re-ordering.

Watermark extraction process is quite. Similar to embedding process, stego mesh model is first represented on spherical coordinates. After finding maximum and minimum vertex norms, vertex norms are classified into N bins. Mean and reference values, n and rn, in each bin are respectively calculated, and compared in order to extract the hidden watermark n.





(3)

Note that the watermark extraction is blind scheme, which can extract the watermark without reference of cover mesh model.

3. SIMULATION RESULTS

The simulations are carried out on triangular mesh model of beethoven with 2655 vertices and 5028 cells. The quality of mesh model is measured by Metro [4], which is error-measuring software for polygonal mesh models. In the simulation, maximum between forward and backward Hausdorff distances is measured. And the performance of watermark detection is evaluated using DR (Detection Ratio). To consider transparency of watermark, we embed watermark sequence of 55 bits.

To evaluate the robustness of the proposed, stego meshes suffer from several attacks such as adding random noise, clipping, similarity transform and vertex re-ordering. The simulation results are given in table 1. In case of adding random noise, DR decreases proportionally to error rate. The proposed has good watermark detection performance up to 1.00% of error rate. For the case of clipping attacks, we assumed that the center of gravity is known in watermark detection side. The proposed can extract correctly most watermark bits from some part of stego model, as it uses statistical approach. Vertex re-ordering attack is carried out repetitively 100 times, changing the seed value of random order generator. Similarity transform is carried out with various rotation, translation, and uniform scaling parameters. Simulation results demonstrate that the proposed is remarkably robust against both similarity transform and vertex re-ordering.

Table 1. Evaluation of the proposed, in terms of Hausdorff distance and DR, after various attacks


Attacks

Conditions

H(V,V)

DR

Adding

random noise



0.25%

0.00513

1.00

0.50%

0.00584

0.95

0.75%

0.00654

0.89

1.00%

0.00723

0.82

Clipping

5%

0.09995

1.00

20%

0.09996

1.00

50%

0.09999

0.98

Similarity transform

x-axis



×0.8

+0.001

0.07634

1.00

y-axis



×0.8

+0.001

z-axis



×0.8

+0.001

x-axis



×1.2

+0.010

0.06895

1.00

y-axis



×1.2

+0.030

z-axis



×1.2

+0.050

x-axis

15°

×1.5

+0.010

0.09999

1.00

y-axis

30°

×1.5

–0.030

z-axis

45°

×1.5

+0.080

Vertex re-ordering

Average of 100 times trials

0.00442

1.00

4. CONCLUSIONS

In this paper, we proposed a new blind watermarking technique for 3-D polygonal mesh model. The proposed embeds watermark by using distribution of vertex norms. Through the simulations, we proved that the proposed is remarkably robust against similarity transform and vertex re-ordering, which are serious attacks on 3-D watermarking field. In addition, the proposed has good watermark detection performance against adding random noise and clipping attacks. Moreover, the method is very simple in both embedding and detection processes. As results, the proposed presents a new possibility to solve the fundamental problem of 3-D watermarking.



REFEREMCES

[1] Zhiqiang Yu, Horace H.S.Ip, and L.F.Kwok : A robust watermarking scheme for 3D triangular mesh models. Pattern Recognition, Vol.36, Issue.11, (2003) 2603–2614

[2] Satoshi Kanai, Hiroaki Date, and Takeshi Kishinami : Digital Watermarking for 3D Polygons using Multiresolution Wavelet Decomposition, Proceedings Sixth IFIP WG 5.2 GEO-6, (1998) 296–307

[3] Oliver Benedens : Geometry-based watermarking of 3D models. IEEE Journal on Computer Graphics and Applications, Vol.19, Issue.1, (1999) 46–55



[4] P.Cignoni, C.Rocchini and R.Scopigno : Metro: measuring error on simplified surfaces. Computer Graphics Forum, Vol.17, No.2, (1998) 167–174
