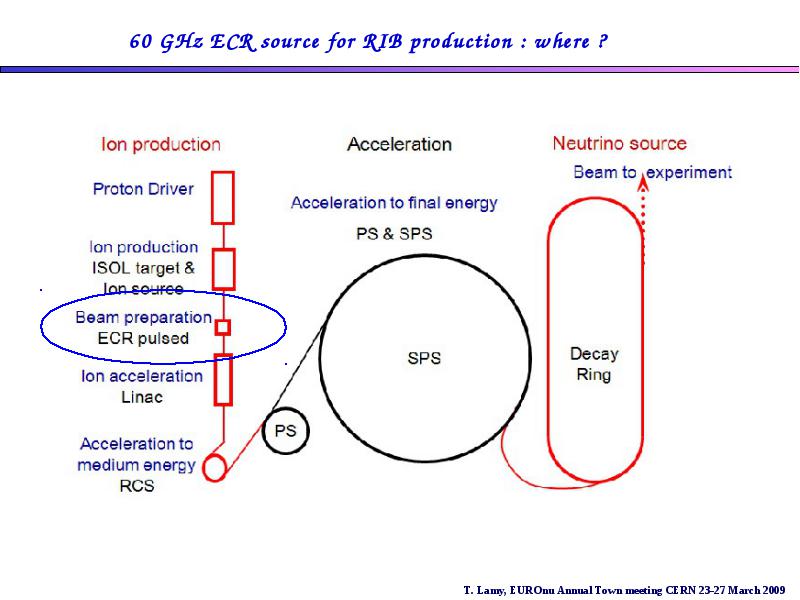

The initial idea : a dream ?

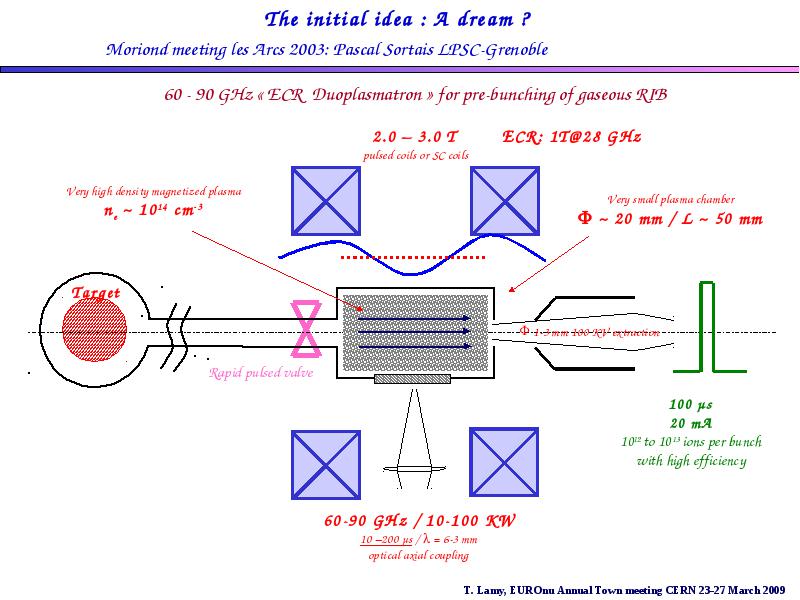

The initial idea : A dream ?

• The initial idea : A dream ?

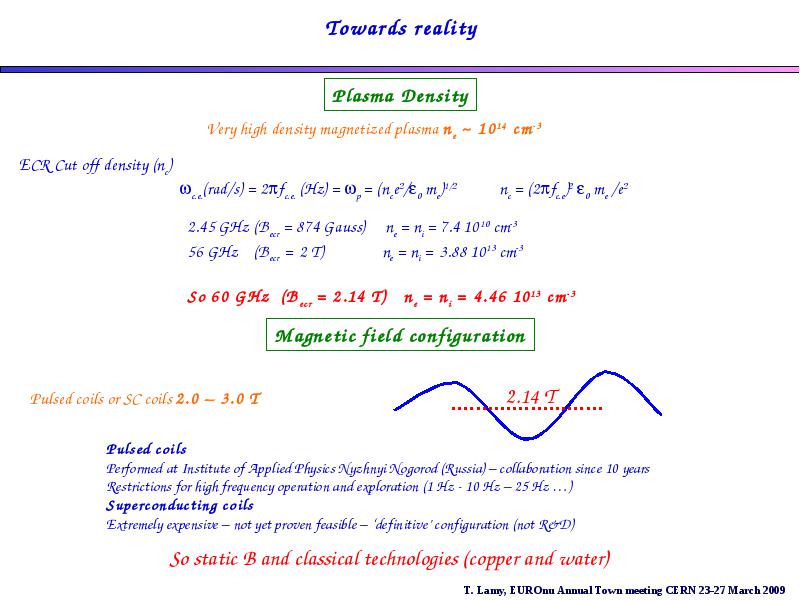

• Towards reality

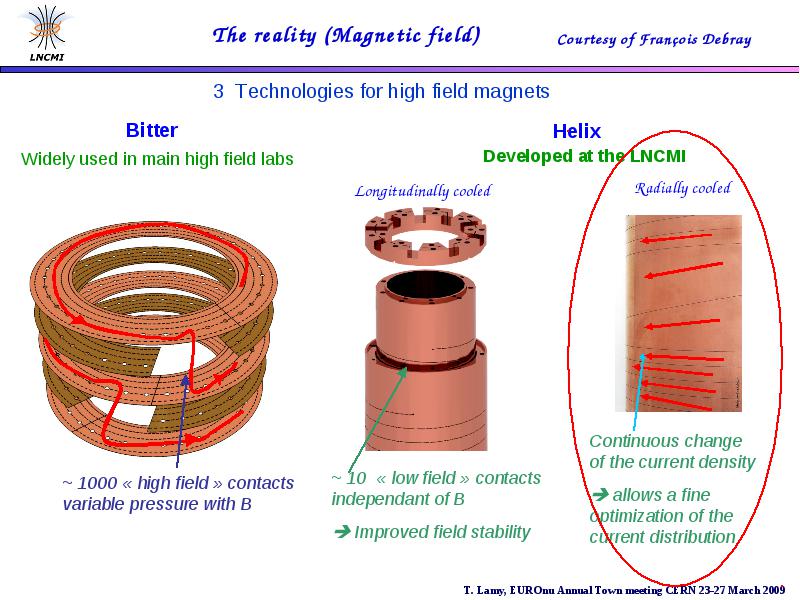

• The reality

• A possible future ?

The initial idea : A dream ?

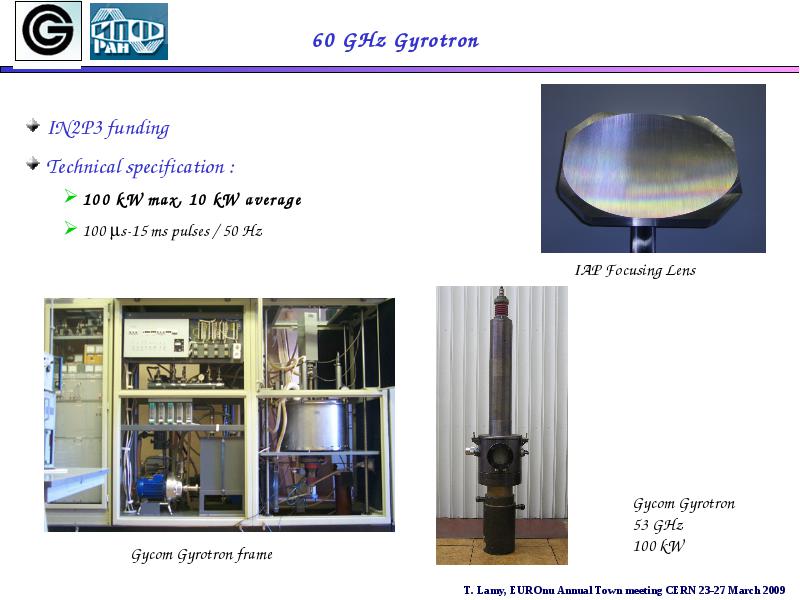

Towards reality

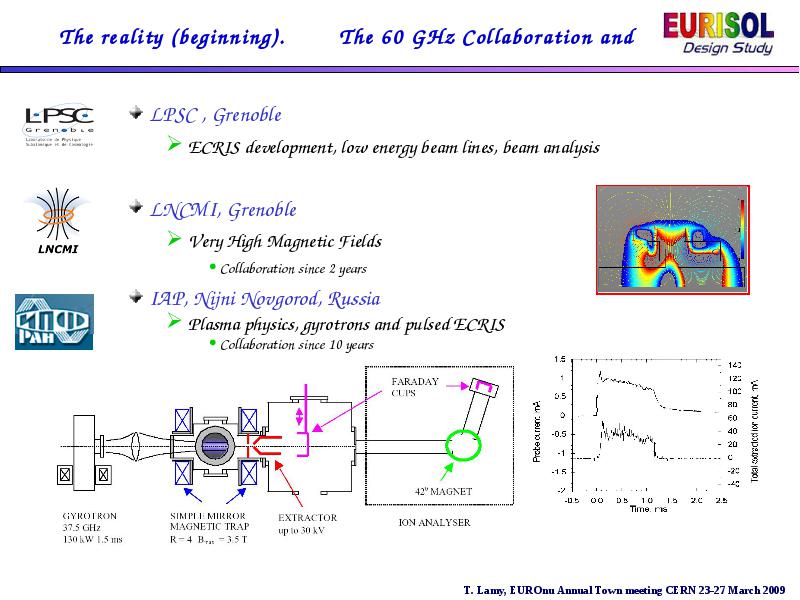

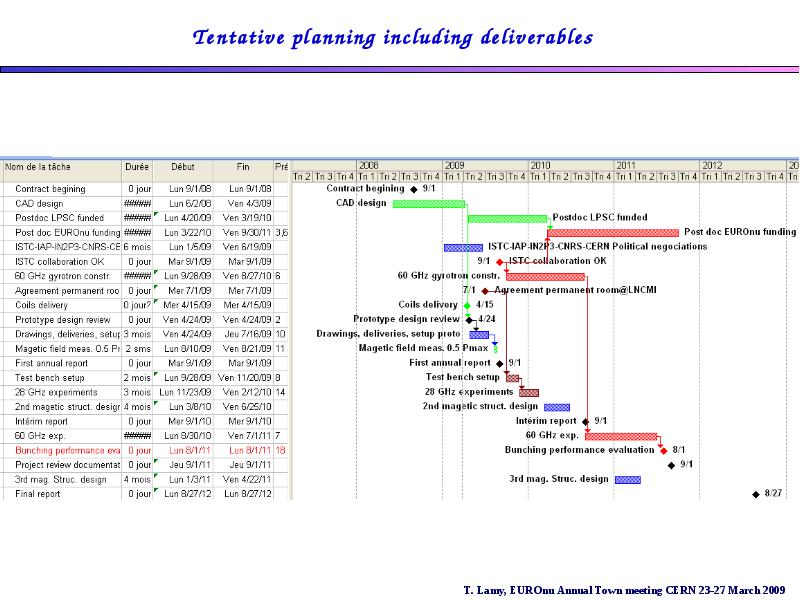

The 60 GHz Collaboration and

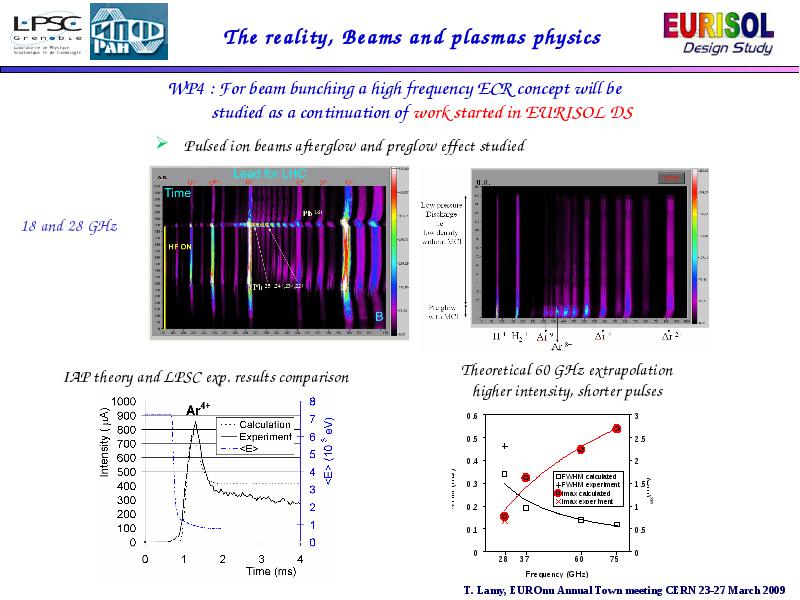

Pulsed ion beams afterglow and preglow effect studied

• Pulsed ion beams afterglow and preglow effect studied

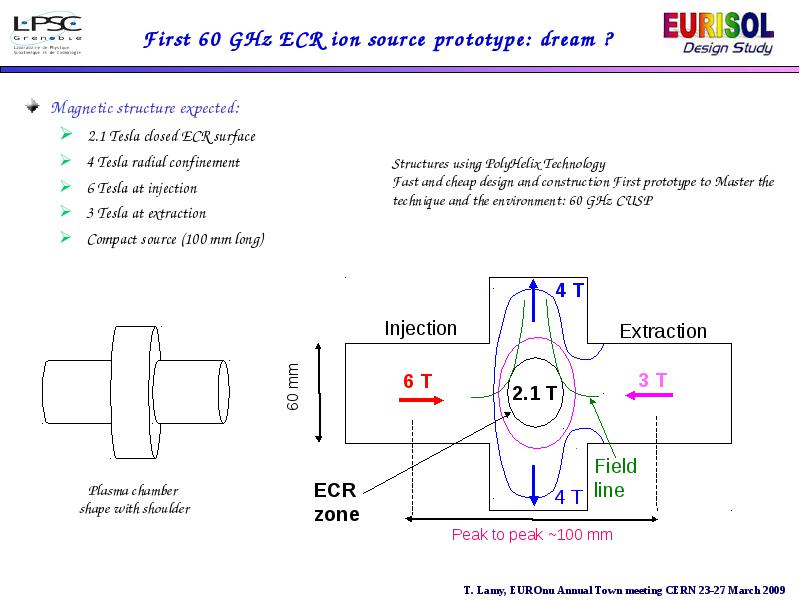

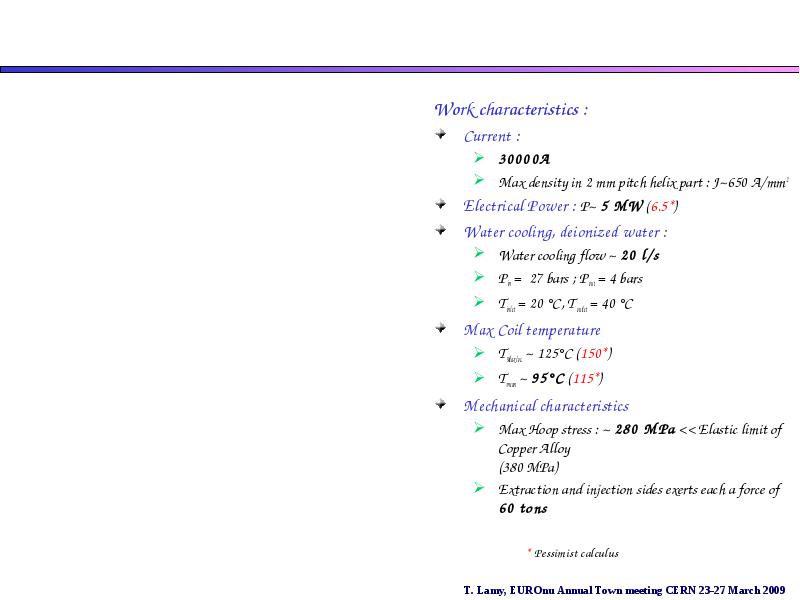

Magnetic structure expected:

• Magnetic structure expected:

• 2.1 Tesla closed ECR surface
• 4 Tesla radial confinement
• 6 Tesla at injection
• 3 Tesla at extraction
• Compact source (100 mm long)

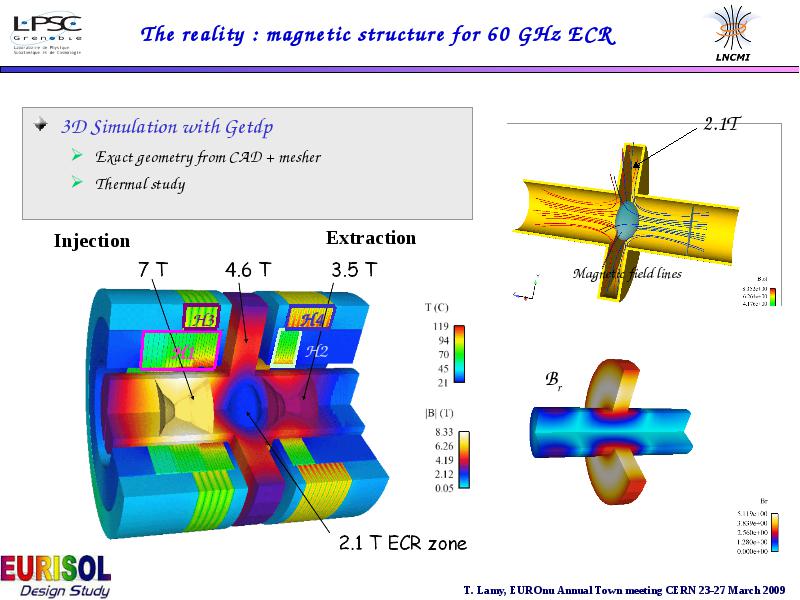

3D Simulation with Getdp

• 3D Simulation with Getdp

• Exact geometry from CAD + mesher
• Thermal study

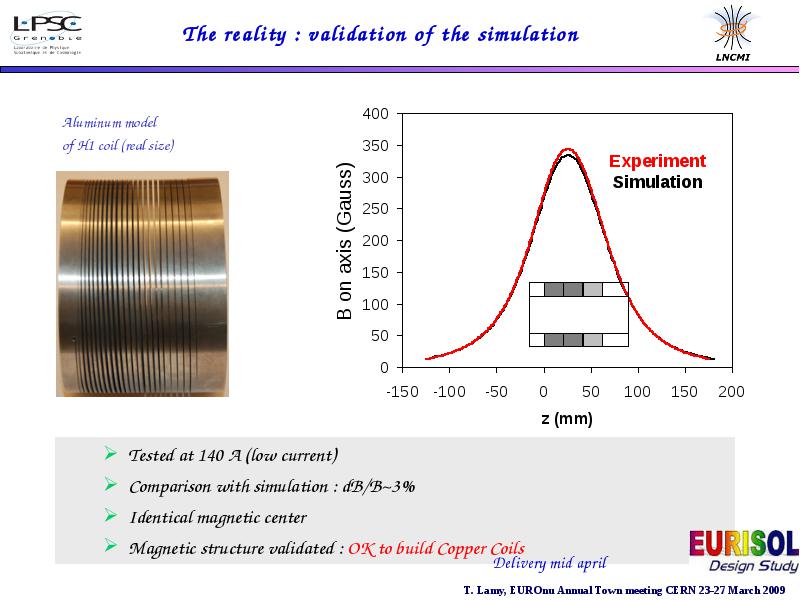

Aluminum model

• Aluminum model

• of H1 coil (real size)

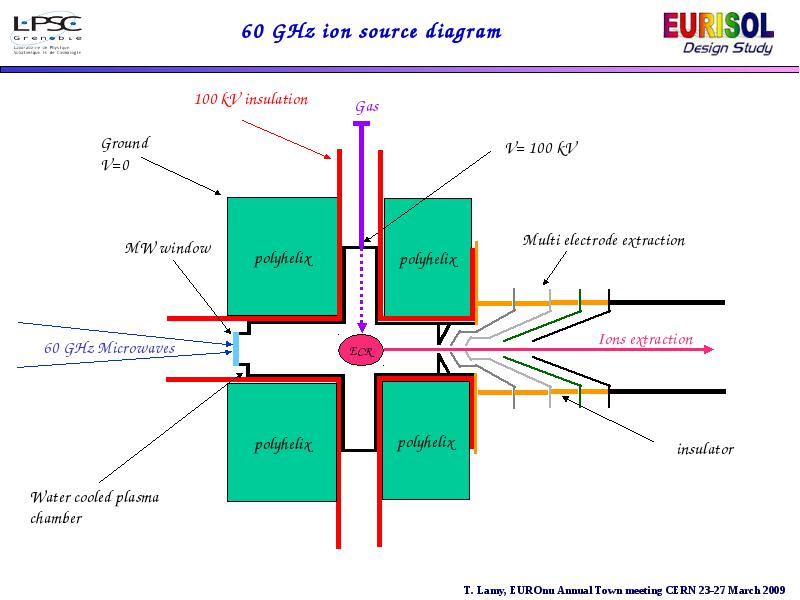

60 GHz ion source diagram

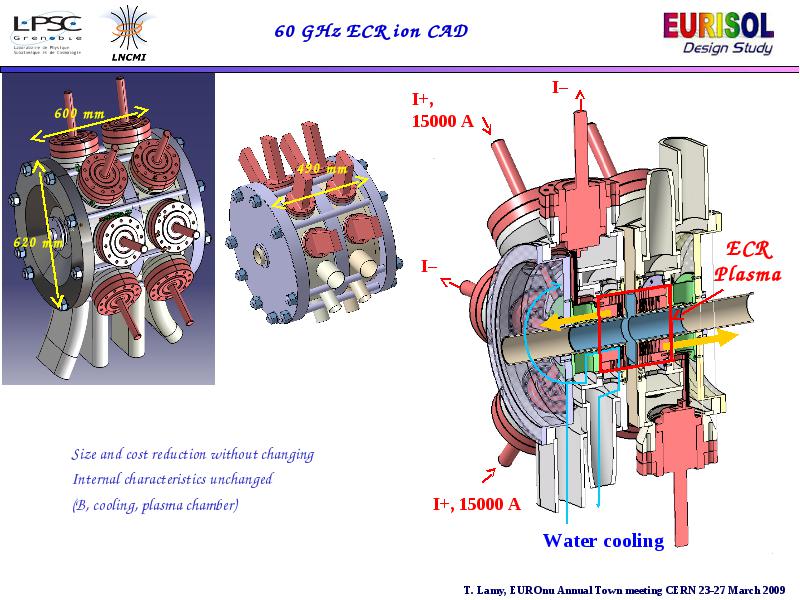

60 GHz ECR ion CAD

• Size and cost reduction without changing

• Internal characteristics unchanged

• (B, cooling, plasma chamber)

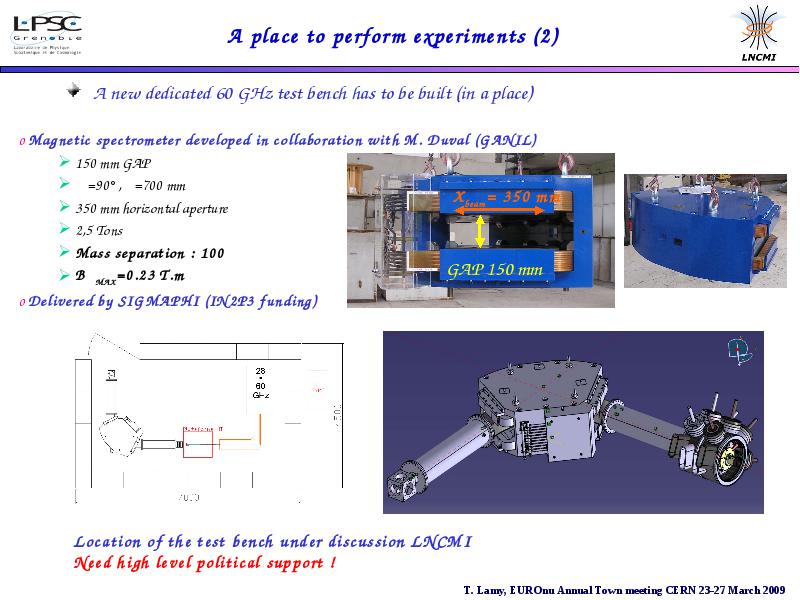

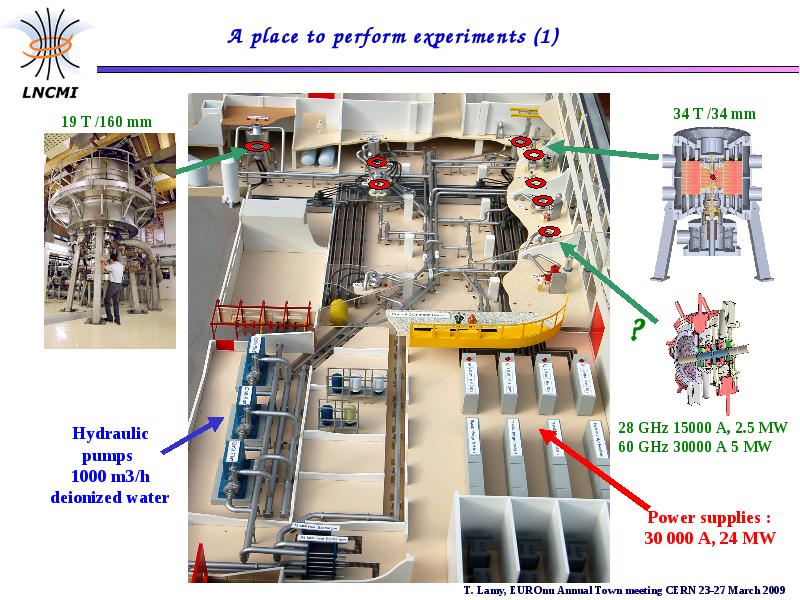

A new dedicated 60 GHz test bench has to be built (in a place)

• A new dedicated 60 GHz test bench has to be built (in a place)

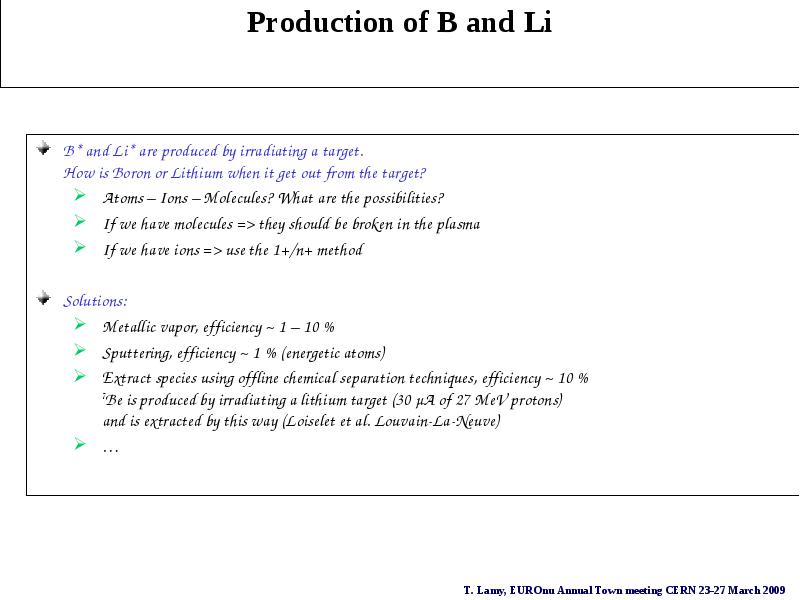

Production of B and Li

• B* and Li* are produced by irradiating a target. How is Boron or Lithium when it get out from the target?

• Atoms – Ions – Molecules? What are the possibilities?
• If we have molecules => they should be broken in the plasma
• If we have ions => use the 1+/n+ method

• Solutions:

• Metallic vapor, efficiency ~ 1 – 10 %
• Sputtering, efficiency ~ 1 % (energetic atoms)
• Extract species using offline chemical separation techniques, efficiency ~ 10 % 7Be is produced by irradiating a lithium target (30 μA of 27 MeV protons) and is extracted by this way (Loiselet et al. Louvain-La-Neuve)
• …
